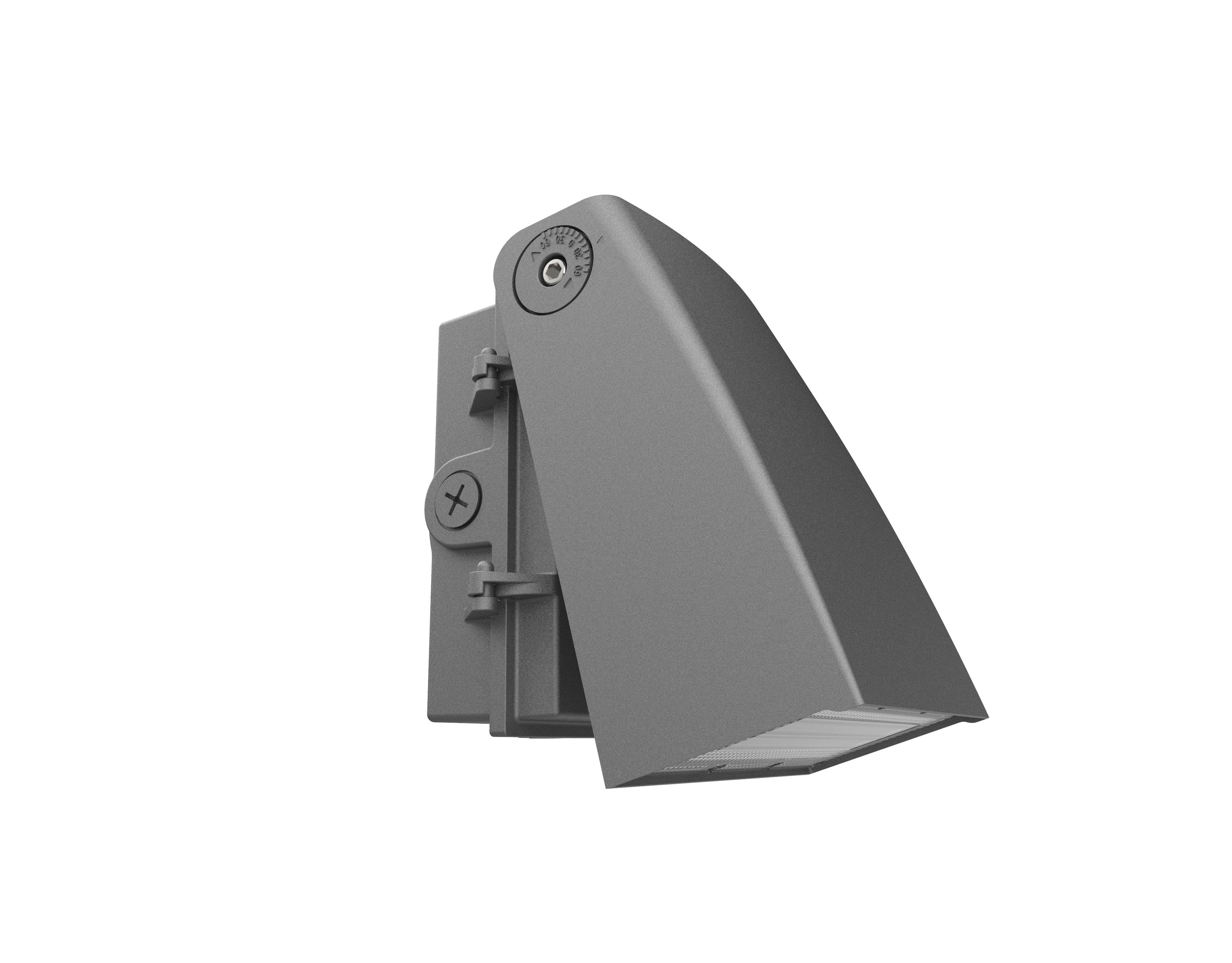

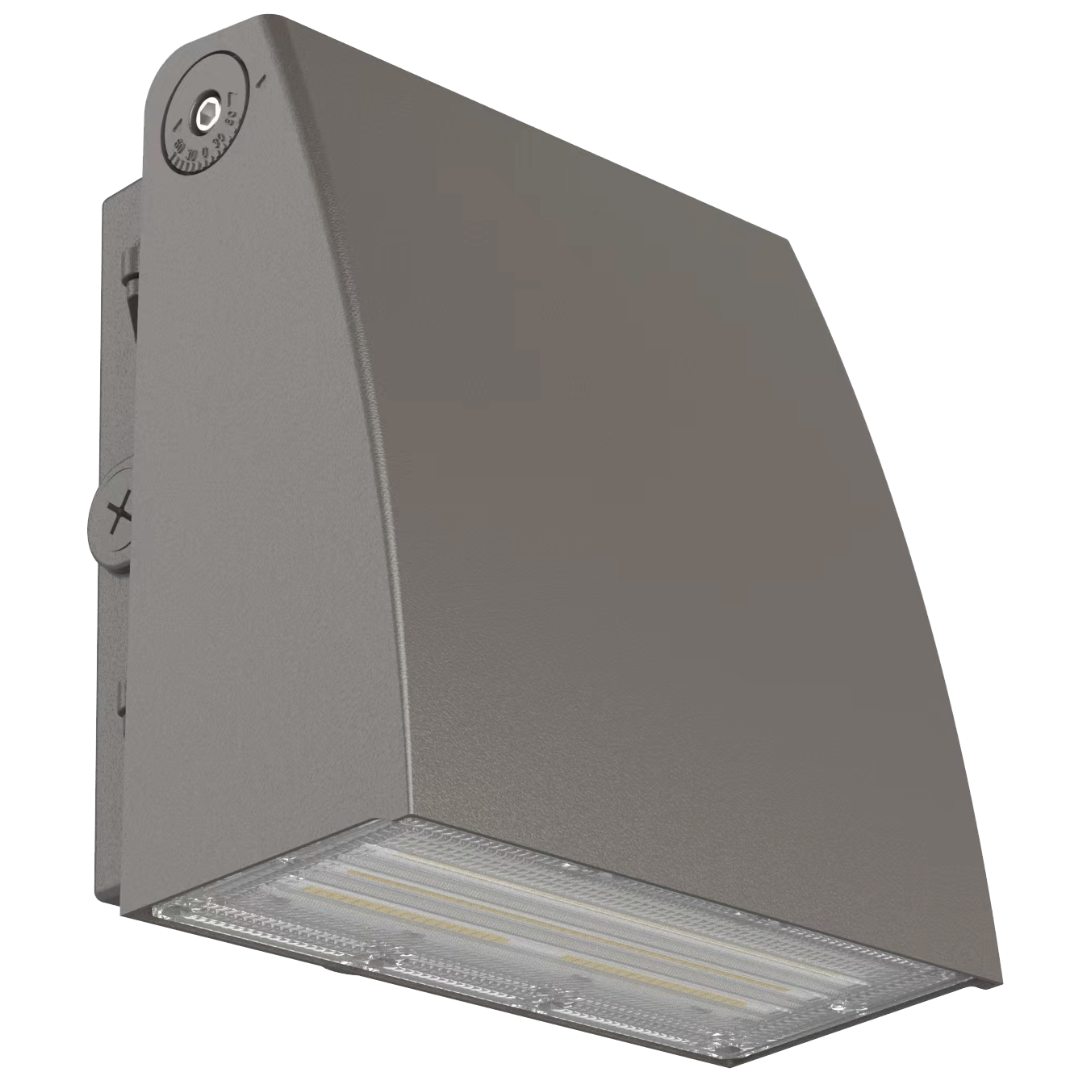

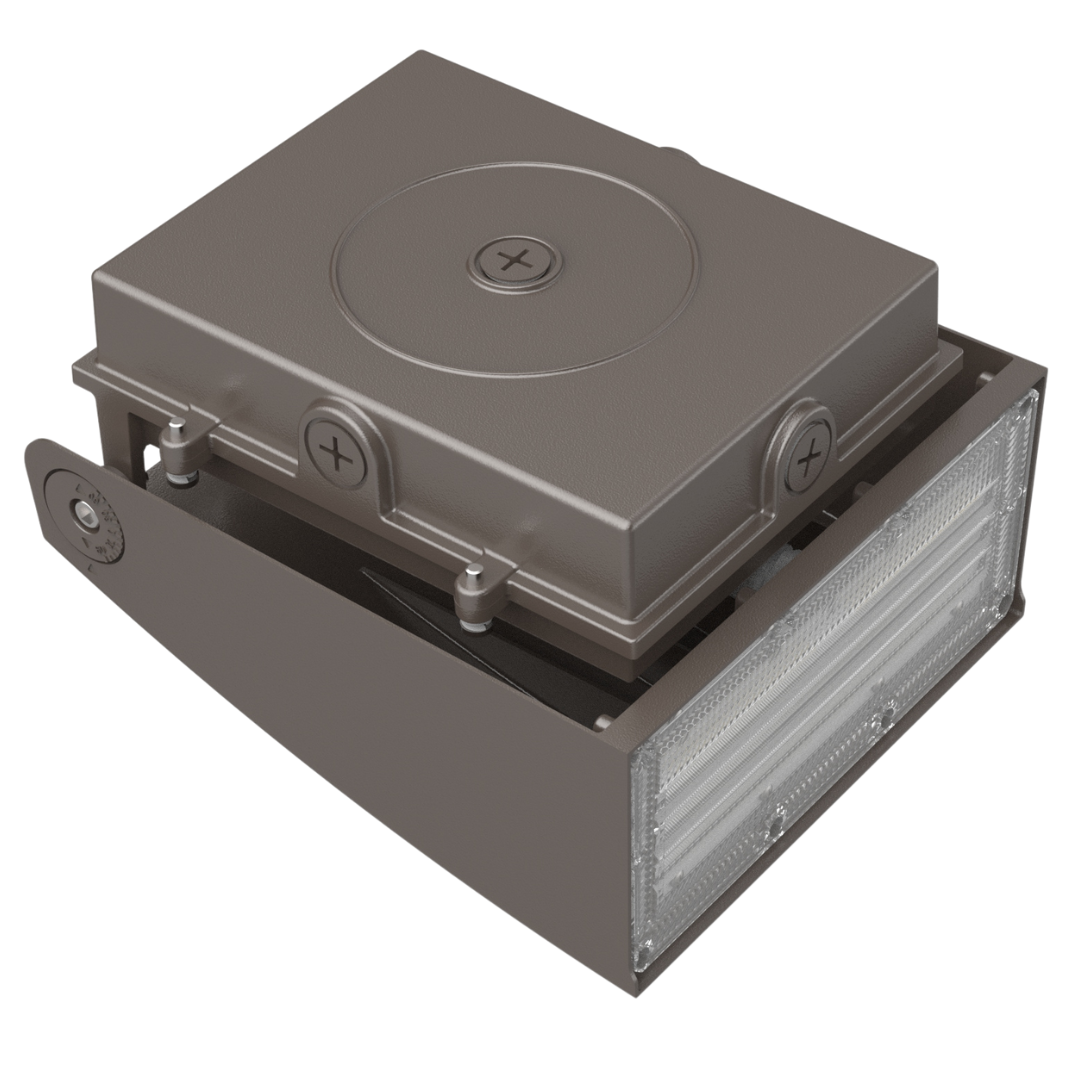

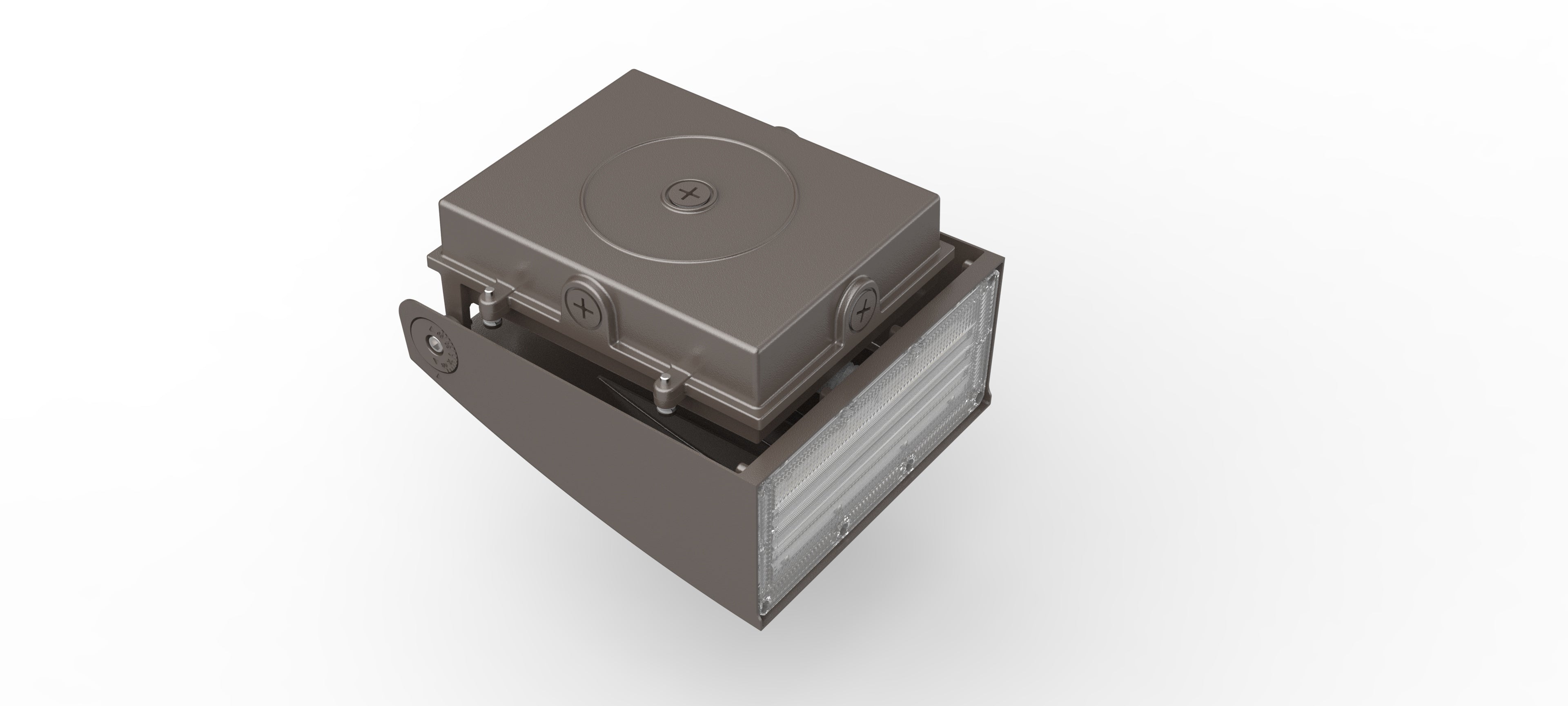

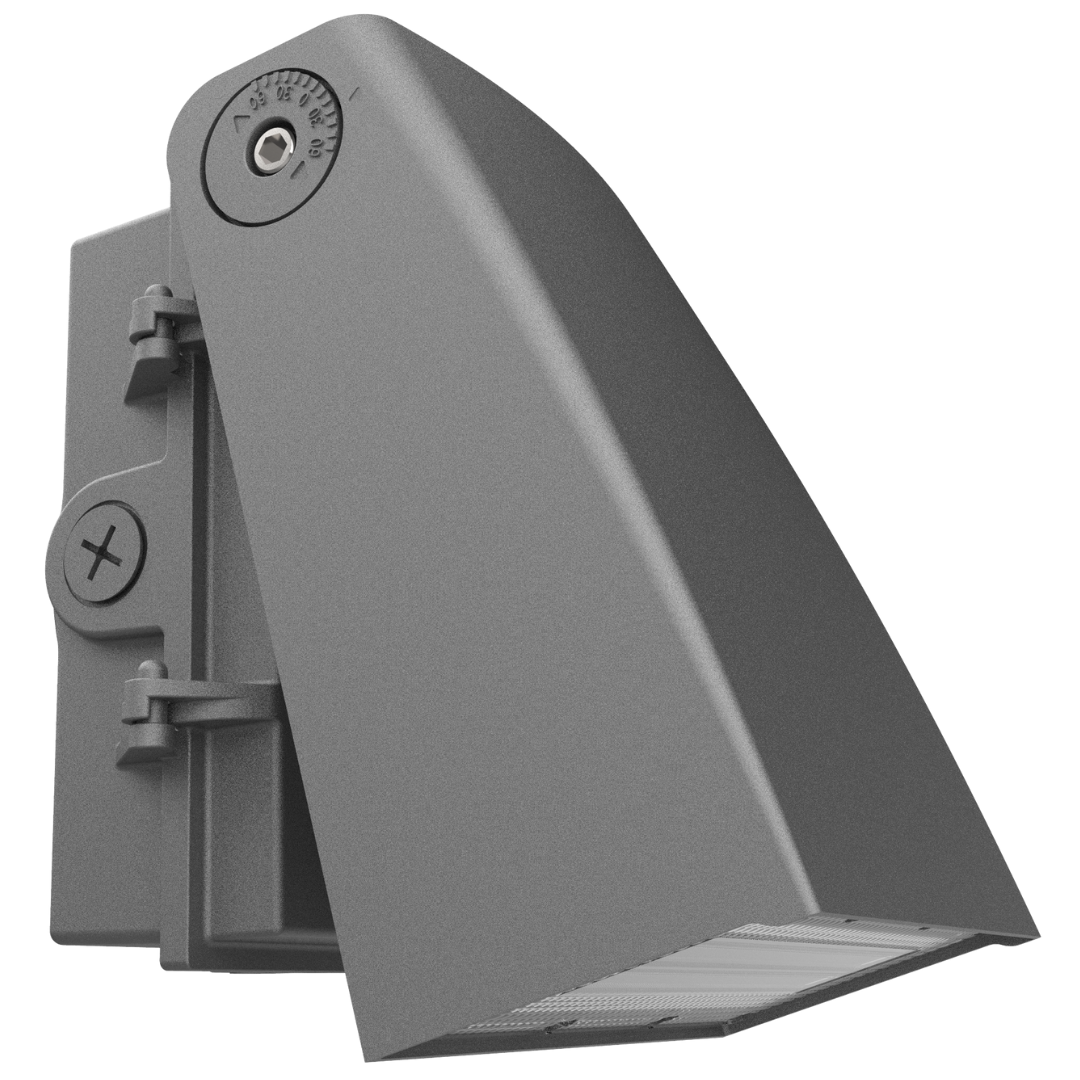

LED Adjustable Angle Wall Pack – Aimable Distribution, Selectable Wattage & CCT, DLC Premium

⬇️Spec Sheet Coming Soon

LED Adjustable Angle Wall Pack – Aimable Distribution

This LED Adjustable Angle Wall Pack with Aimable Distribution is designed for exterior applications where fixed light patterns don’t work. The adjustable angle optic allows installers to aim the light downward, outward, or anywhere in between, making it ideal for uneven terrain, varied mounting heights, and sites that require flexibility after installation.

Unlike fixed-cutoff wall packs, this fixture adapts to real jobsite conditions. Selectable wattage and selectable CCT let contractors dial in output and color temperature on site, reducing SKUs, avoiding reorders, and keeping projects moving when plans change.

Built with a rugged die-cast aluminum housing and wet-location construction, this wall pack delivers long-term reliability in demanding commercial environments while maintaining DLC Premium efficiency for rebate eligibility.

Why Contractors Choose This Wall Pack

• Aimable Distribution
  Adjustable angle design allows precise control of light direction without changing fixtures.

• Selectable Wattage & CCT
  One fixture covers multiple applications, simplifying inventory and change orders.

• Solves Uneven Site Conditions
  Ideal for sloped grades, varying mounting heights, and mixed-use exterior zones.

• DLC Premium Listed
  Helps projects qualify for utility rebates.

• Rugged Outdoor Construction
  Designed to withstand harsh weather and long operating hours.

• Standard Wall Pack Footprint
  Easy retrofits with familiar installation points.

Selectable Output:
This fixture is field selectable between 80W, 100W, and 120W, allowing installers to adjust light output on site to match mounting height, spacing, and coverage requirements.

Key Features

Optical & Performance

• Aimable Distribution via adjustable angle optic

• Uniform light output with reduced glare

• High-efficiency LED system for dependable coverage

Electrical

• 120–277V standard input

• 0–10V continuous dimming

• Power factor >0.9, THD <15%

Color Temperature (Field Selectable)

• 3000K – Warm White

• 4000K – Neutral White

• 5000K – Cool White

Construction & Ratings

• Die-cast aluminum housing with corrosion-resistant finish

• Impact-resistant, UV-stabilized lens

• Wet Location Rated

• Operating temperature: -40°F to 113°F

• 5-Year Limited Warranty

Ideal Applications

• Building perimeters

• Entrances and courtyards

• Walkways and pedestrian paths

• Service alleys and access points

• Sites with uneven terrain or varied mounting heights
