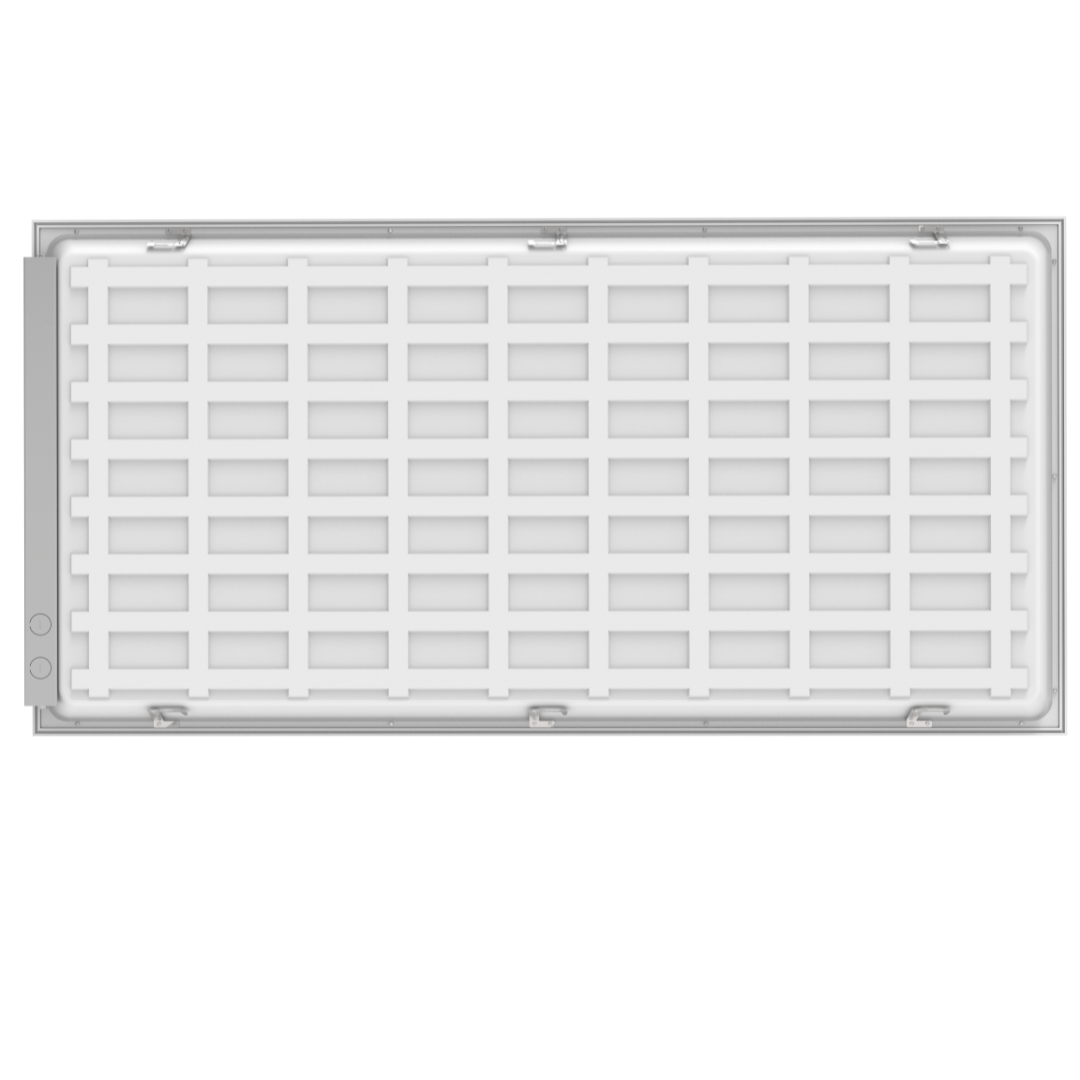

LED Back-Lit Panel Light – 5-Wattage & 5-CCT Selectable

1,875–9,000 Lumens • 125 lm/W • DLC Premium • Damp Location Rated

The LED Back-Lit Panel Light – 5-Wattage & 5-CCT Selectable Series is a versatile, clean-install solution for commercial interior spaces where flexibility, efficiency, and a uniform appearance matter. With field-selectable wattage and color temperature, this series allows contractors to standardize fixtures across layouts while fine-tuning output on site.

Designed for offices, schools, retail, and general commercial environments.

Why Contractors Choose This Series

• One Series, Multiple Layouts
  Available in 1×4, 2×2, and 2×4 sizes for consistent appearance across ceiling grids.

• Field-Selectable Wattage & CCT
  Adjust both light output and color temperature after install—no reordering if specs change.

• High-Efficiency Back-Lit Design
  Up to 125 lm/W with even distribution and reduced glare versus edge-lit panels.

• Simple Ceiling Integration
  Designed for standard T-bar grids with optional surface mount and flange kits available.

• Smart & Emergency Ready
  Accepts PIR or microwave sensors, remote control programming, and emergency drivers.

Ideal Applications

• Offices & conference rooms

• Schools & universities

• Retail stores

• Lobbies & corridors

• Restrooms & workstations

Anywhere clean, uniform overhead lighting is required.

✔ Available Options

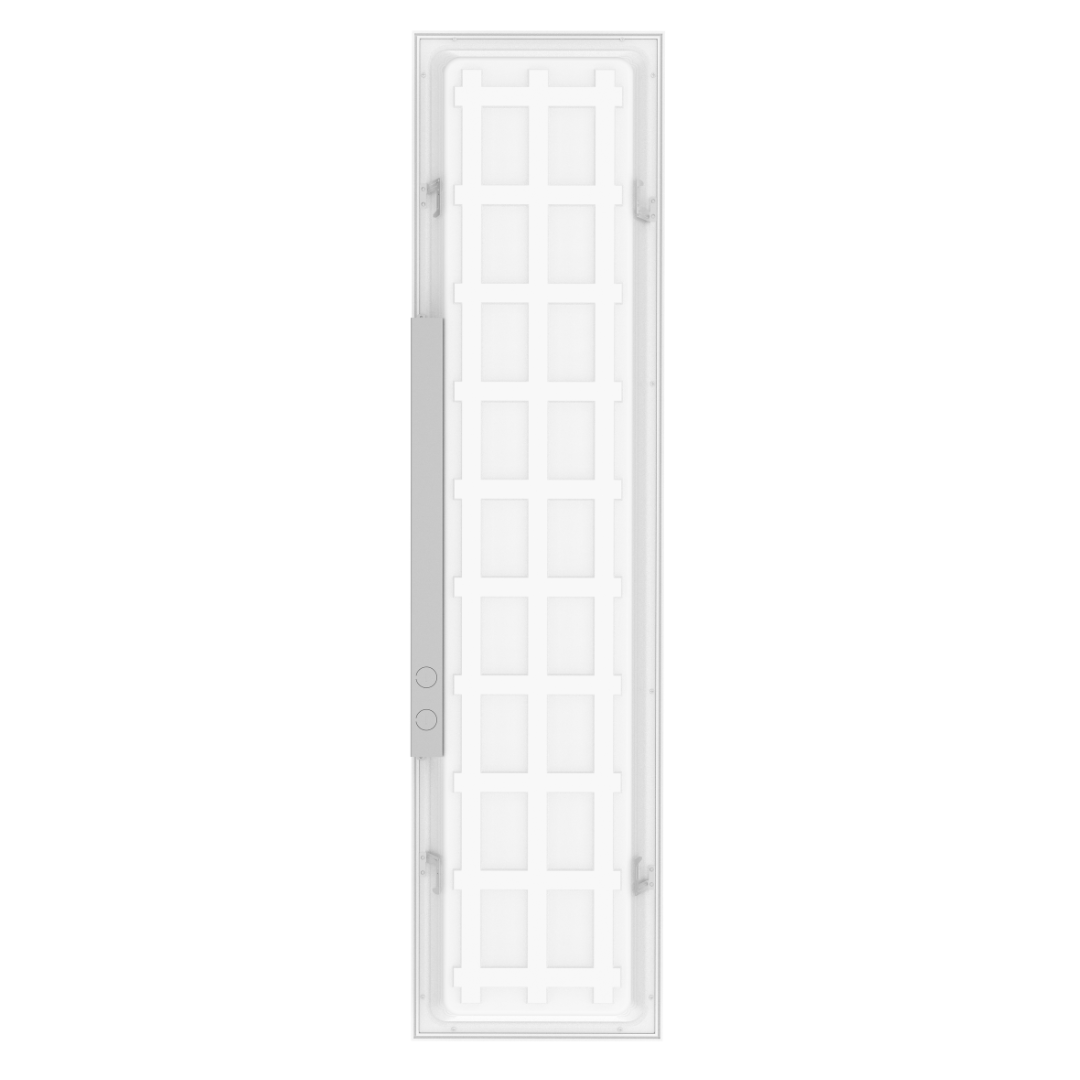

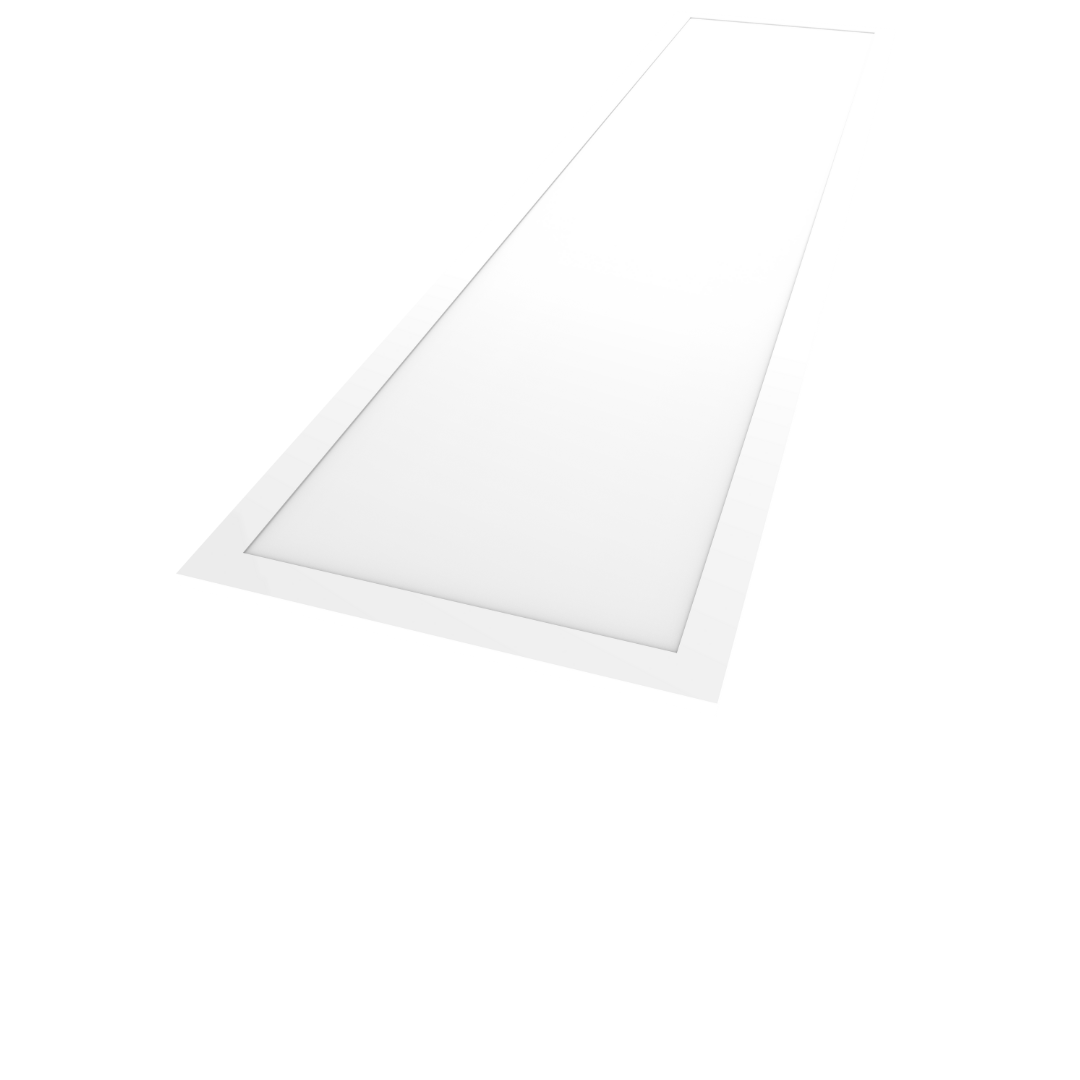

1x4 Panel – 5-Wattage Selectable (40W Max)

• 15W / 20W / 25W / 30W / 40W

• 1,875 – 5,000 lumens

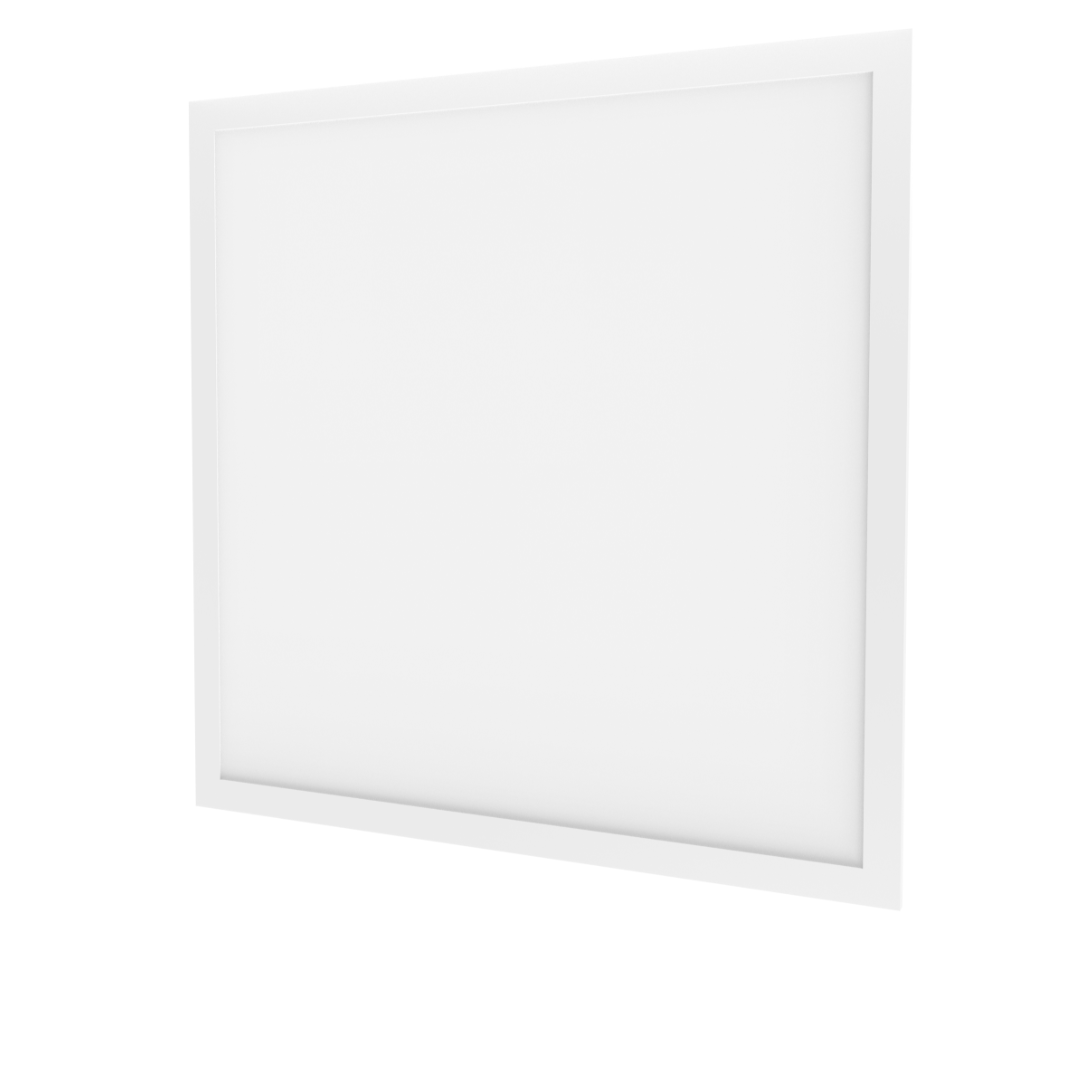

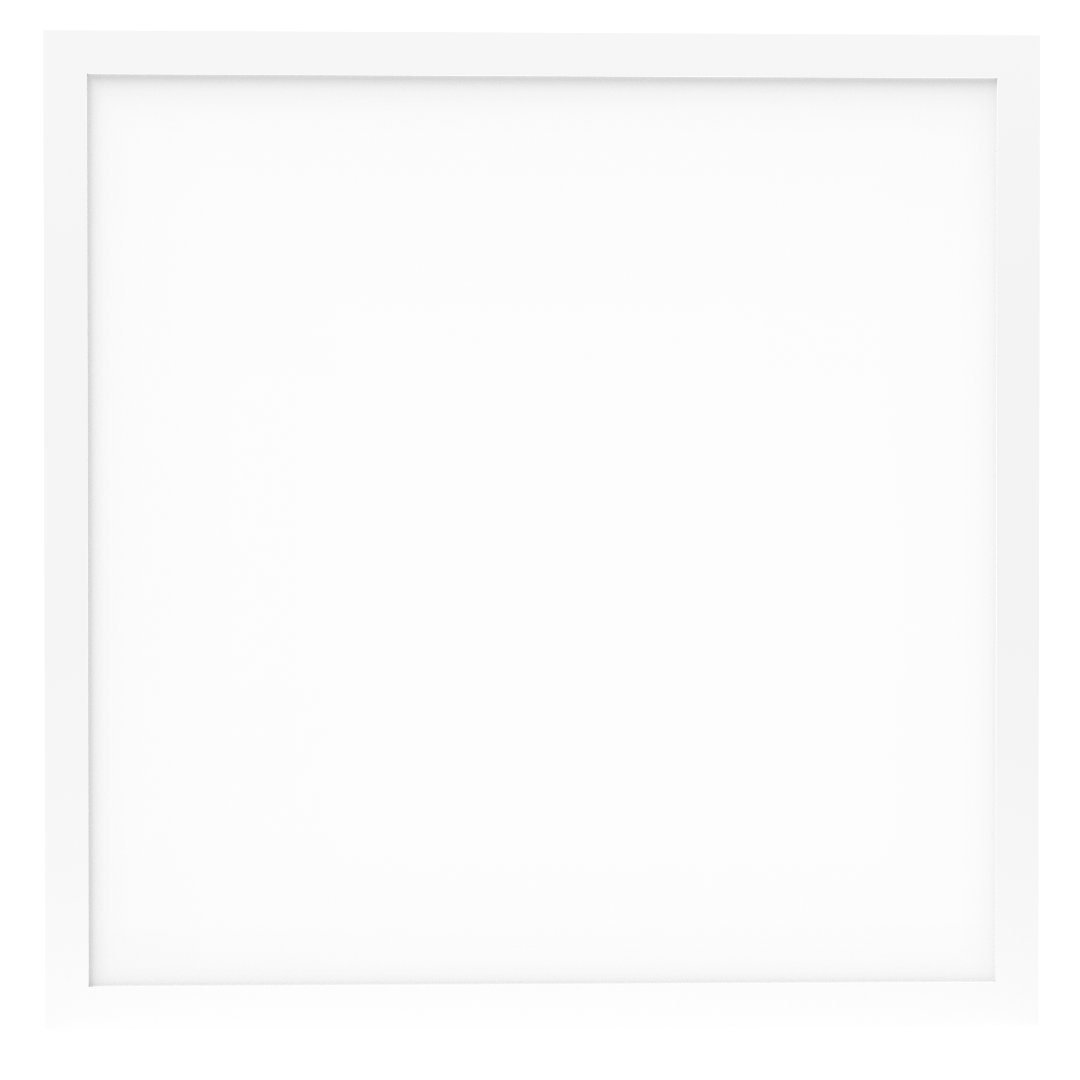

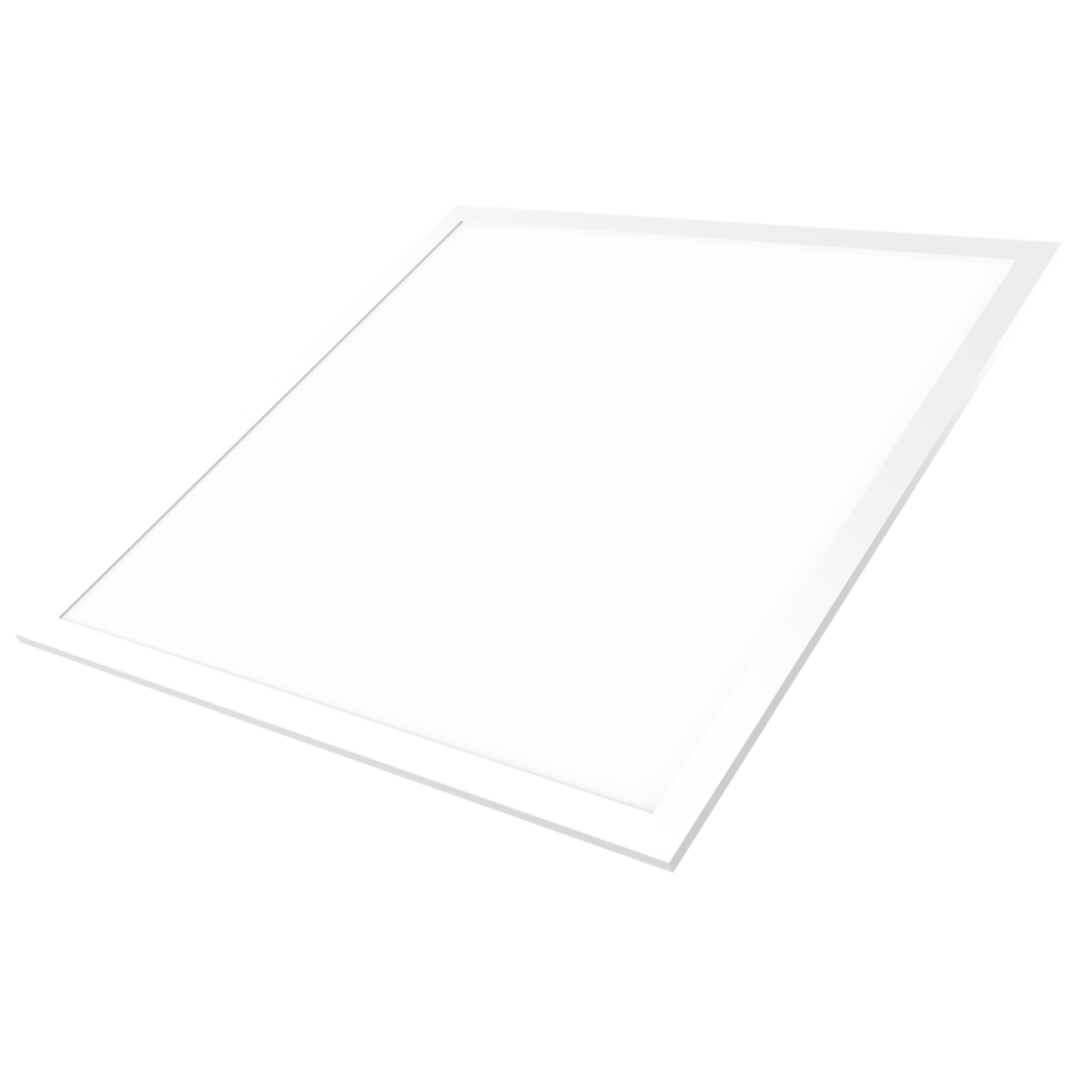

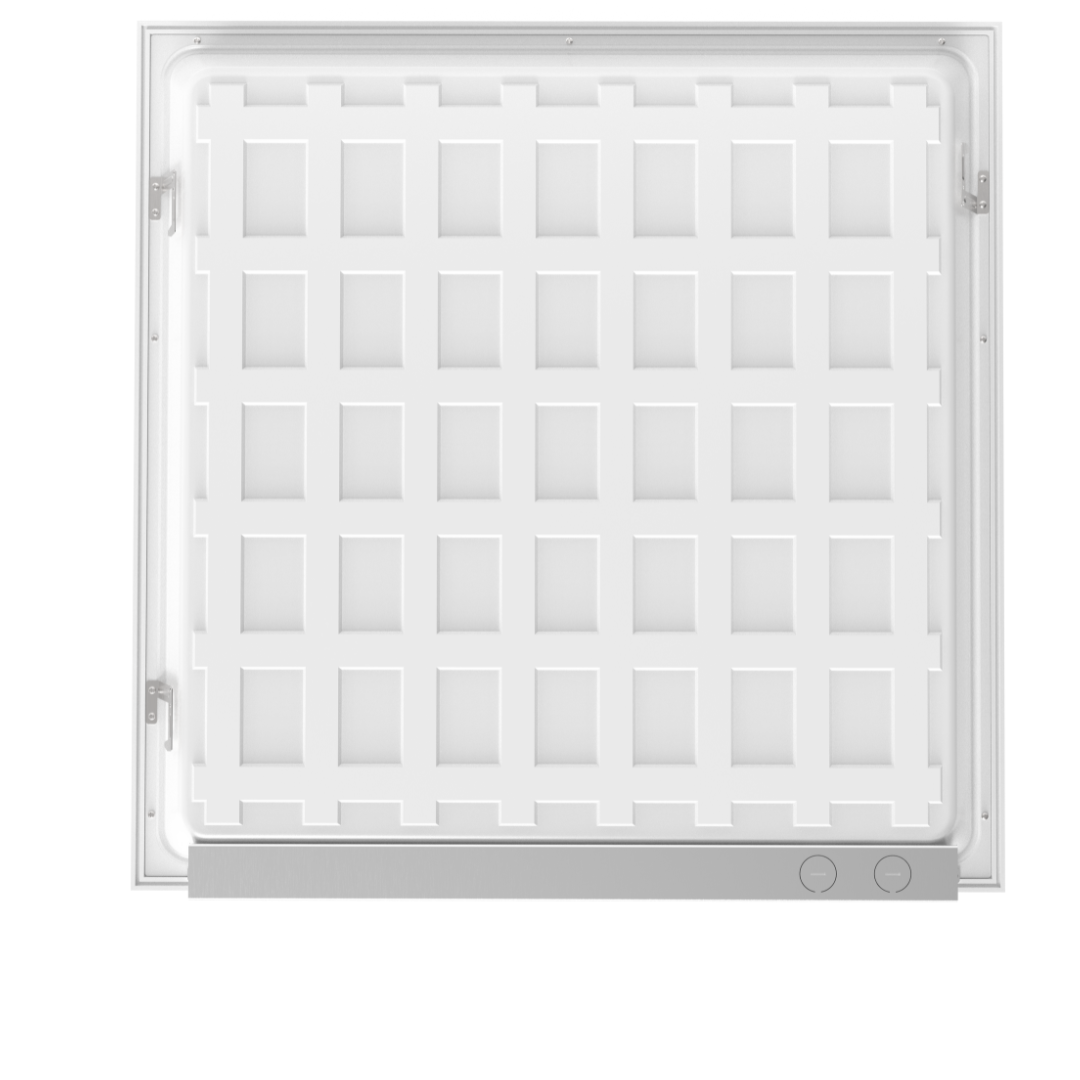

2x2 Panel – 5-Wattage Selectable (40W Max)

• 15W / 20W / 25W / 30W / 40W

• 1,875 – 5,000 lumens

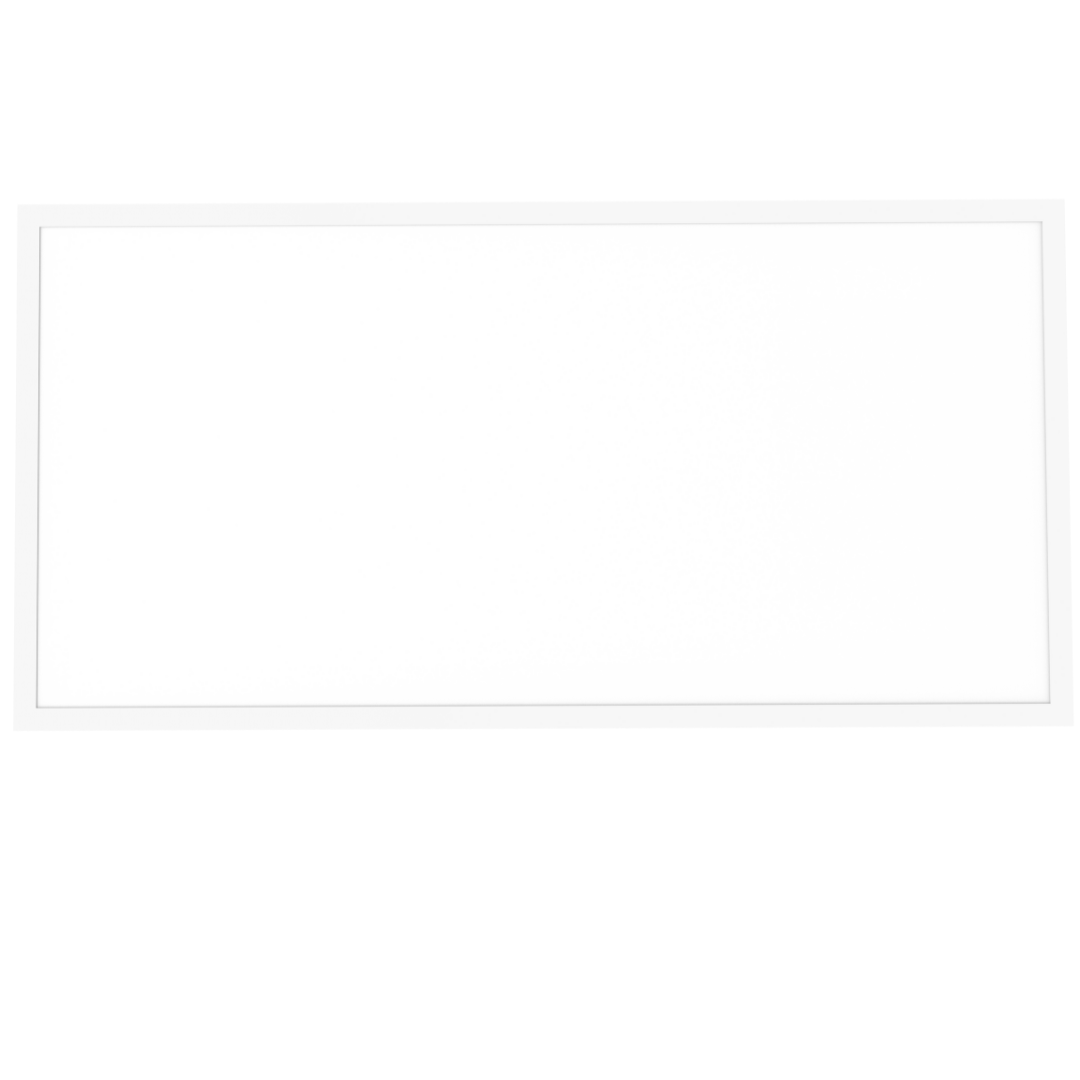

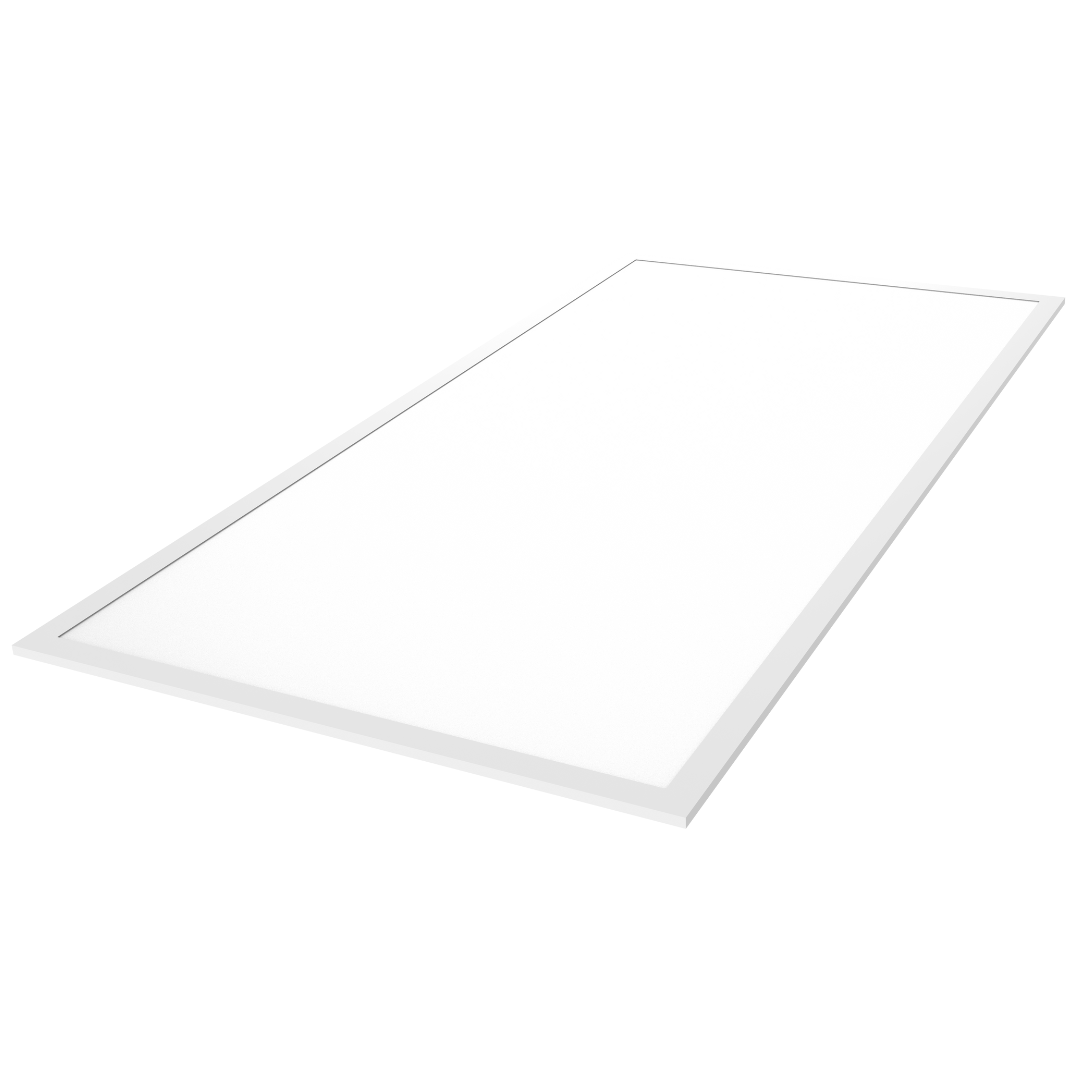

2x4 Panel – High Output, 5-Wattage Selectable (72W Max)

• 30W / 40W / 50W / 60W / 72W

• 3,750 – 9,000 lumens

Performance at a Glance

• Selectable Wattage: 5-step (model-dependent)

• Delivered Lumens: 1,875 – 9,000

• Efficacy: Up to 125 lm/W

• Selectable CCT: 3500K / 4000K / 5000K / 5700K / 6500K

• CRI: ≥80

• Dimming: 0–10V continuous

• Voltage: 120–277V

• Operating Temp: -4°F to 113°F

• Lifetime: L70 ≥ 50,000 hours

• Rating: Damp Location (IP44)

Optics & Construction

• Lens: Anti-UV frosted polycarbonate

• Housing: Aluminum sheet construction with satin finish

• Light Quality: Uniform, glare-controlled output suitable for long occupied spaces

Mounting & Installation

• Standard: Recessed T-bar grid mount

• Optional:

  • Surface mount kits (1x4 / 2x2 / 2x4)

  • Flange kits for drywall ceilings

Built for fast installs and consistent results.

Controls & Emergency Options

• Fixture-mounted PIR or microwave sensors with daylight priority

• Remote control configuration available

• 90-minute emergency backup drivers (8W or 20W options)

Compliance & Warranty

• DLC Premium Listed

• ETL Certified (US & Canada)

• FCC & RoHS Compliant

• 5-Year Limited Warranty

The Contractor Advantage

This panel series is designed to eliminate decision friction:

• One family covers most commercial interiors

• Field-adjustable output and color

• Clean ceiling appearance

• No confusion at ordering time

If you want a dependable, flexible panel light without SKU overlap or vendor mix-ups, this is the right spec.
