Commercial LED Downlight – Power & CCT Selectable

4″ / 6″ / 8″ • 5-CCT • 120–277V • 0–10V Dimming • Wet Location Rated

The Commercial LED Downlight – Power & CCT Selectable Series is a true one-fixture-fits-many solution for commercial interiors. With field-selectable wattage and color temperature, an integral driver with whip, and multiple aperture sizes, this downlight simplifies inventory, speeds installs, and adapts easily when specs change late in the project.

Designed for offices, hospitality, and common areas where clean appearance and flexibility matter.

Why Contractors Choose This Fixture

• One Fixture, Multiple Outputs
  Field-selectable wattage by size means fewer SKUs and fewer returns:

  • 4″: 6W / 8W / 10W / 12W / 16W

  • 6″: 12W / 16W / 22W / 26W / 30W

  • 8″: 16W / 22W / 26W / 30W / 35W

• 5-CCT Selectable on the Fixture
  Choose 2700K / 3000K / 3500K / 4000K / 5000K in the field—no need to pre-commit during rough-in.

• Fast, Clean Install

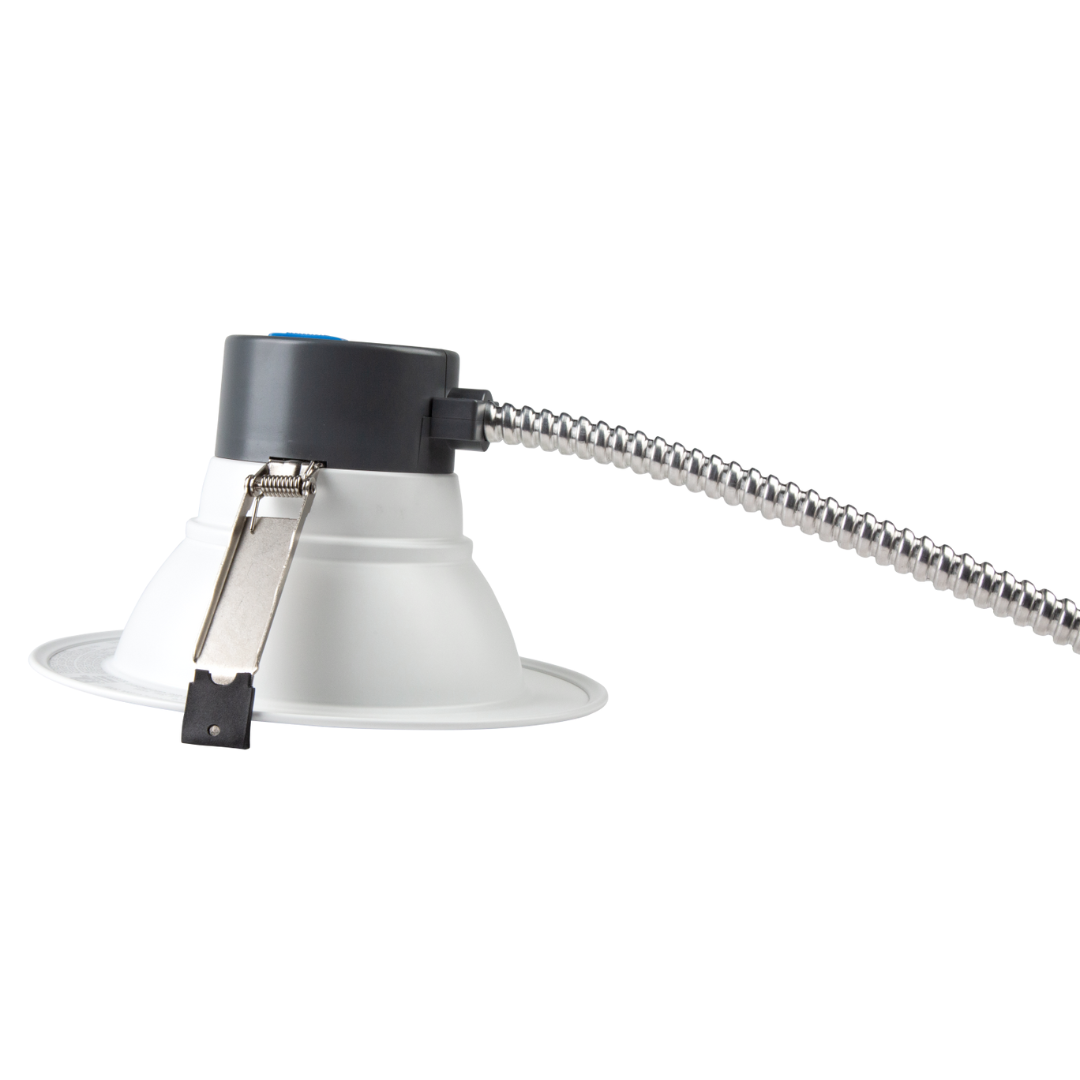

  Integral driver with whip connects directly to a junction box, eliminating multi-piece assemblies.

• Modern, Professional Finish
  Smooth reflector trim and deep reflector design deliver a clean look across mixed ceiling types.

Ideal Applications

• Commercial offices

• Hospitality & lobbies

• Retail spaces

• Common areas

• Remodels and new construction

A reliable downlight for projects that demand flexibility and consistency.

Performance at a Glance

• Sizes: 4″, 6″, 8″

• Selectable Wattage:

  • 4″: 6–16W (5-step)

  • 6″: 12–30W (5-step)

  • 8″: 16–35W (5-step)

• Delivered Lumens: Up to ~4,200 lm (size & wattage dependent)

• Efficacy: Up to 120 lm/W

• Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K

• Dimming: 0–10V

• Voltage: 120–277V

• Operating Temp: -4°F to 104°F

• L70: ≥50,000 hours

• Rating: Wet Location (IP54)

Optical & Electrical Details

• Optics: Deep reflector design for controlled distribution

• Driver: Integral LED driver (no external components)

• Power Factor: >0.9

• THD: <20%

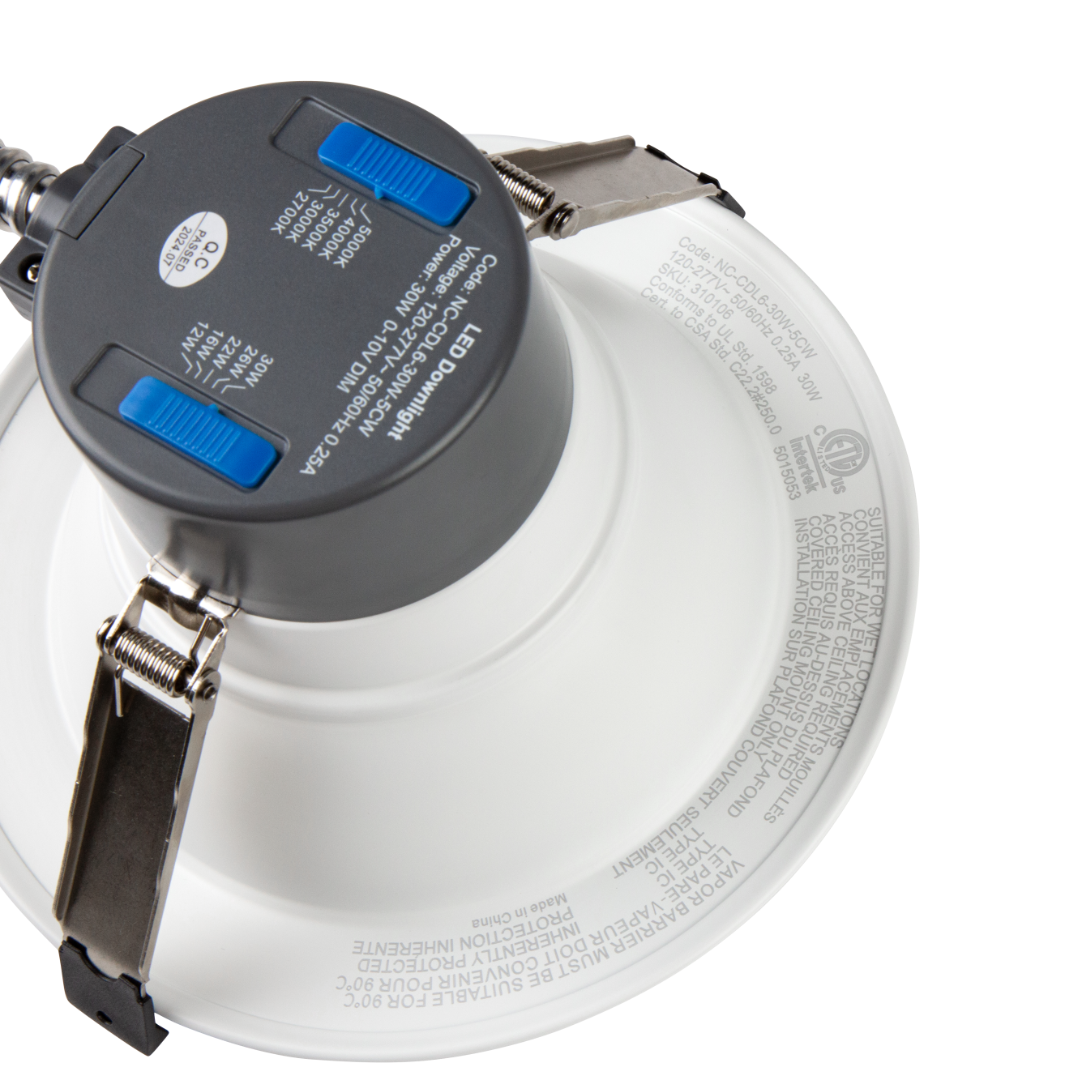

Preset from the factory to highest wattage and 5000K, with simple dip-switch adjustment on site.

Mounting & Installation

• Connection: Integral whip to junction box

• Compatibility: New construction and remodel friendly

• Consistency: Same cutout family across sizes simplifies layouts

Accessories (Optional)

• Goof rings (4″ / 6″ / 8″)

• New construction or remodel plates (T-grid, stud/joist ceilings)

• Safety lanyard

• Emergency battery backup

Compliance & Warranty

• UL Listed (Wet Location)

• IP54 Rated

• 0–10V Dimmable

• 5-Year Limited Warranty

The Contractor Advantage

This downlight is built for real-world commercial work:

• One fixture adapts to changing specs

• Faster rough-in decisions

• Cleaner finishes

• Fewer SKUs to manage

If you need a flexible, professional-grade commercial downlight that installs clean and performs consistently, this is the one to spec.
