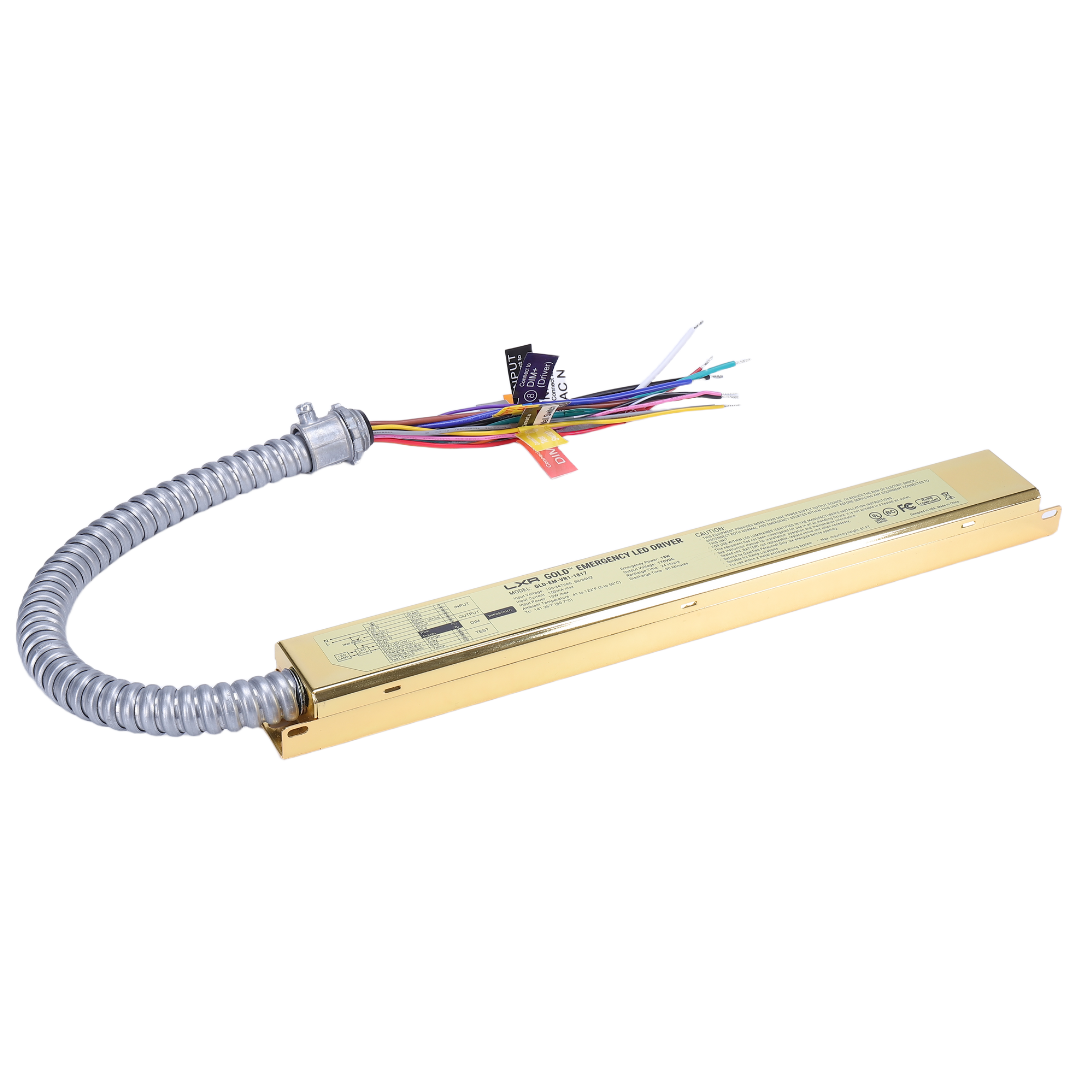

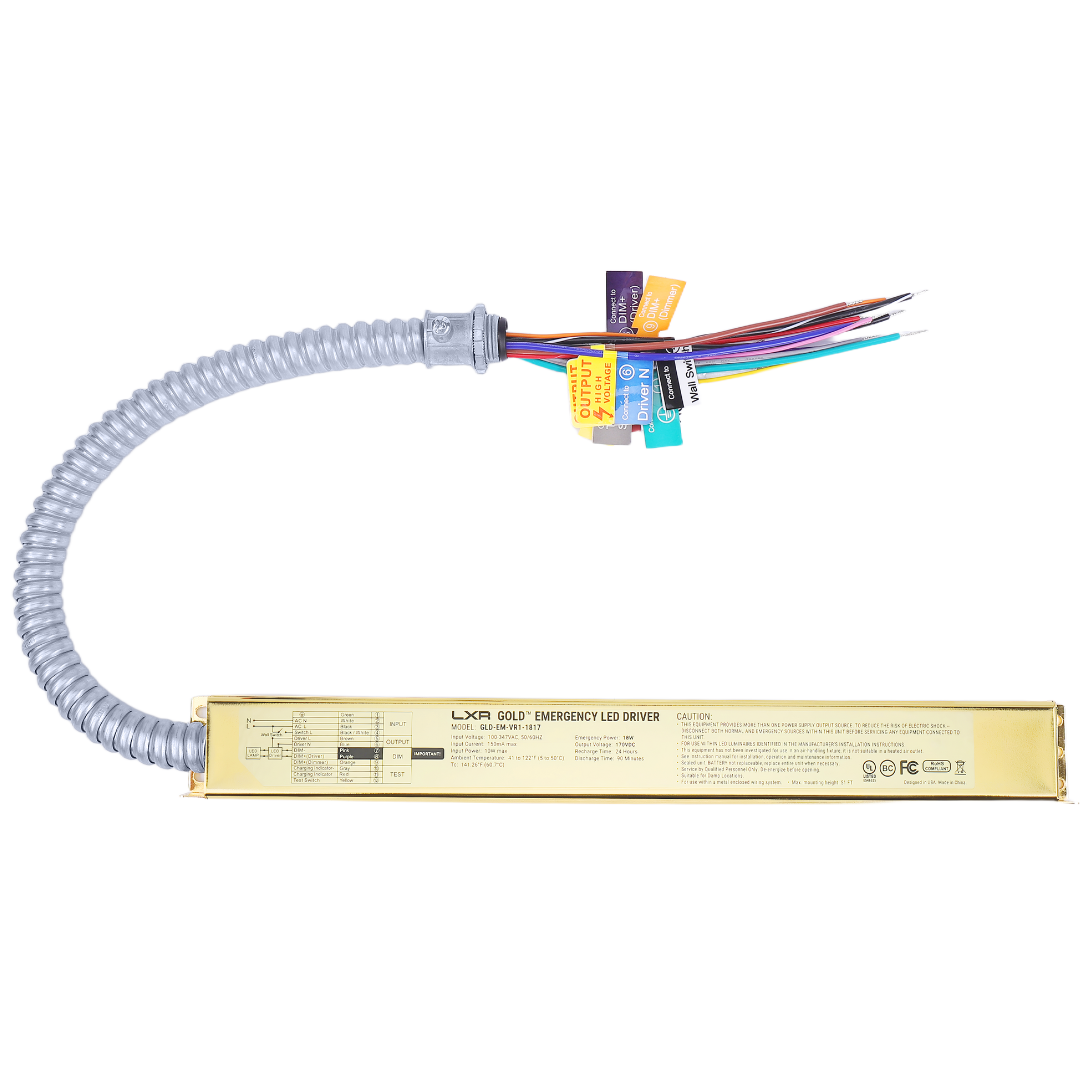

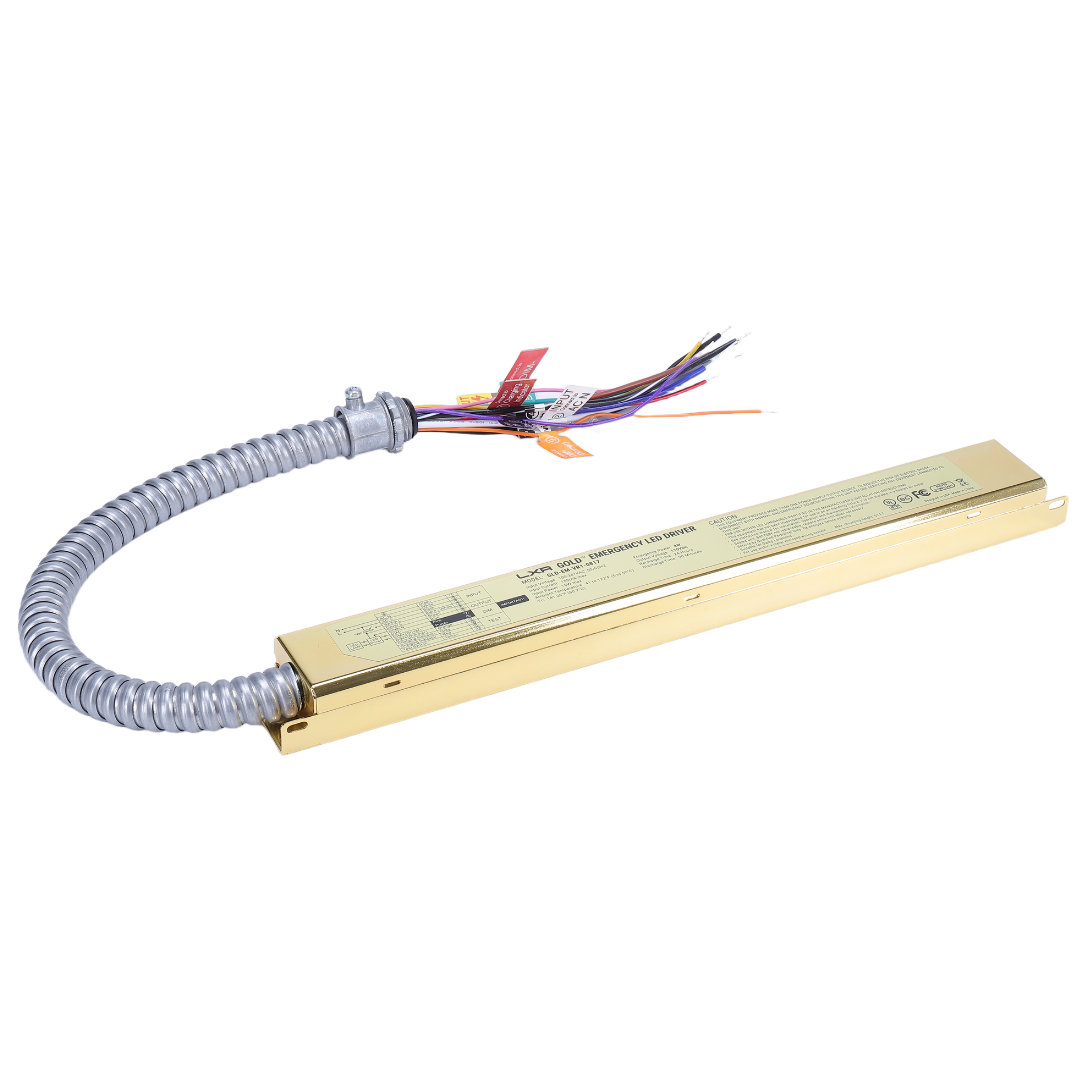

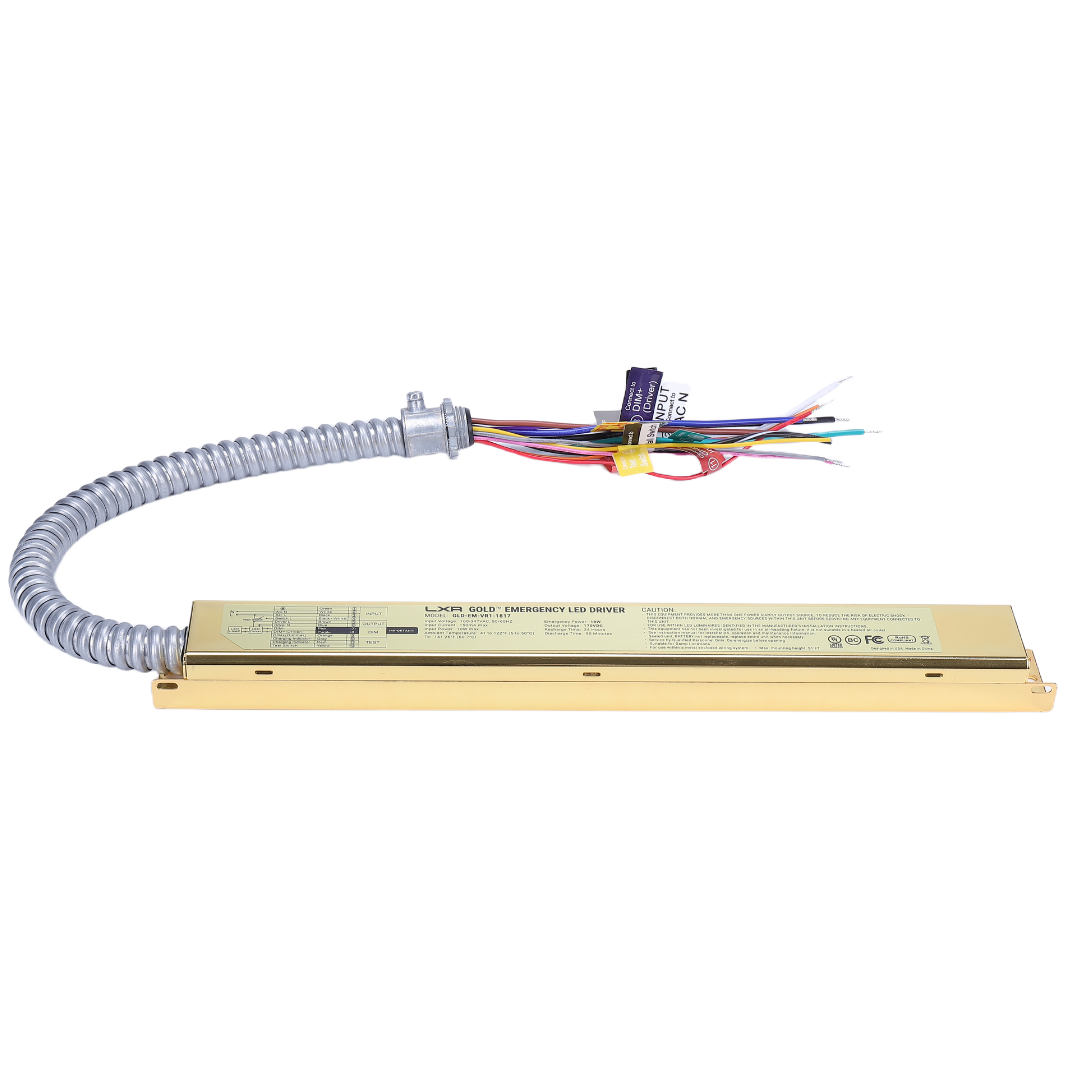

LED Emergency Battery Backup LED Driver – Fixed Output (VR1 Series), Self-Testing, UL 924

⬇️Download Spec Sheet

Product Description

The VR1 Series LED Emergency Battery Backup Drivers are designed for standard commercial LED fixtures that operate at a fixed emergency output voltage, delivering 90 minutes of code-compliant emergency illumination during power outages in accordance with UL 924 and NFPA 101 Life Safety Code.

This series is ideal for troffers, LED panels, linear fixtures, wraps, and downlights where the LED load operates around a known voltage level. By using a fixed emergency output, VR1 drivers provide a simple, reliable solution when fixture compatibility is already defined.

Each unit includes integrated self-testing diagnostics, automatically performing monthly 30-second and annual 90-minute tests to maintain compliance with minimal maintenance. Status indicators provide clear visual confirmation for inspections and routine checks.

Designed for field or factory installation, the VR1 Series supports high-voltage input (100–347Vac) and features a long-life lithium-ion battery for dependable performance.

Backed by a 5-year warranty, the VR1 Series is a straightforward, contractor-friendly solution for everyday commercial emergency lighting needs.

Key Features

• UL 924 & NFPA 101 compliant

• Fixed emergency output voltage (170V DC)

• 90-minute emergency runtime

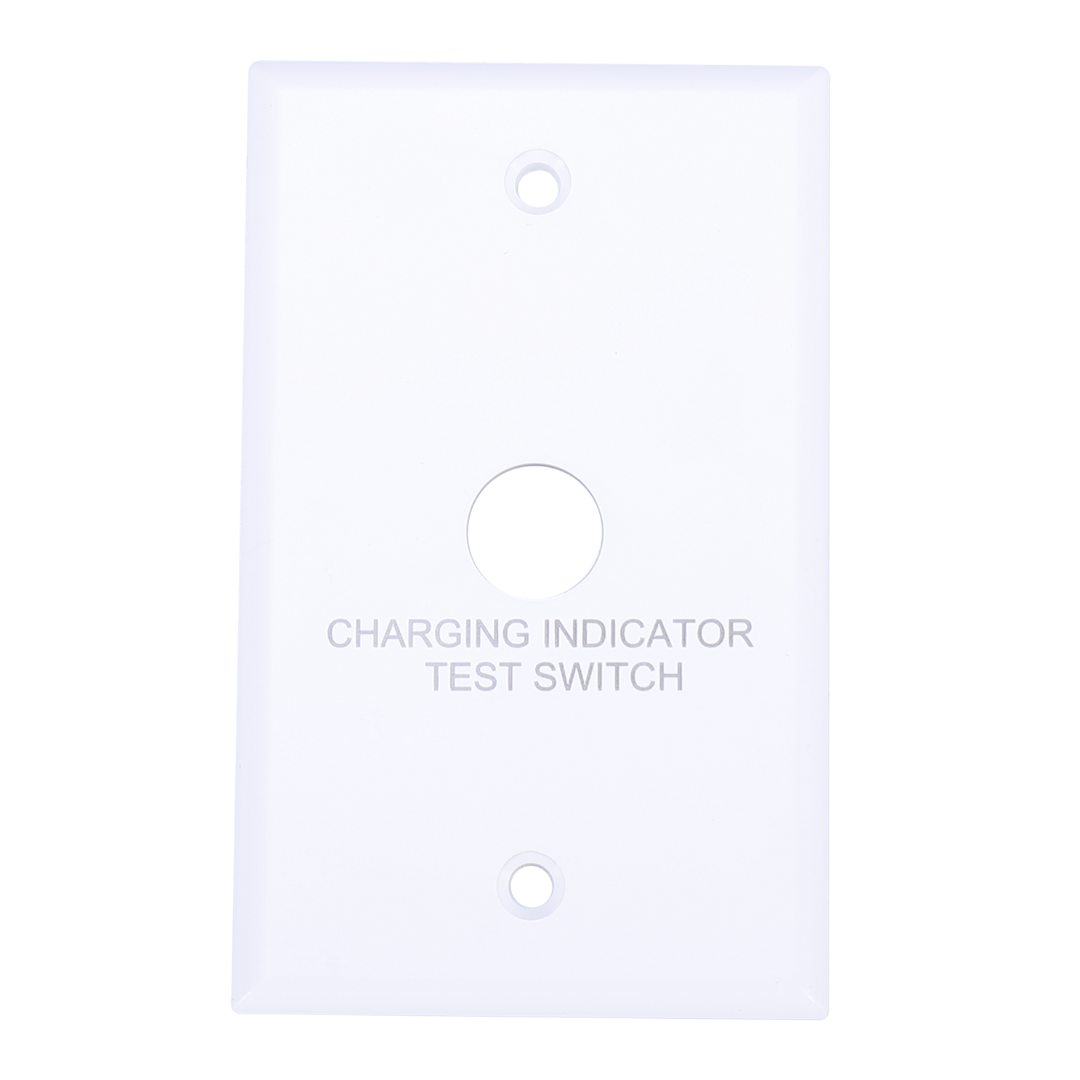

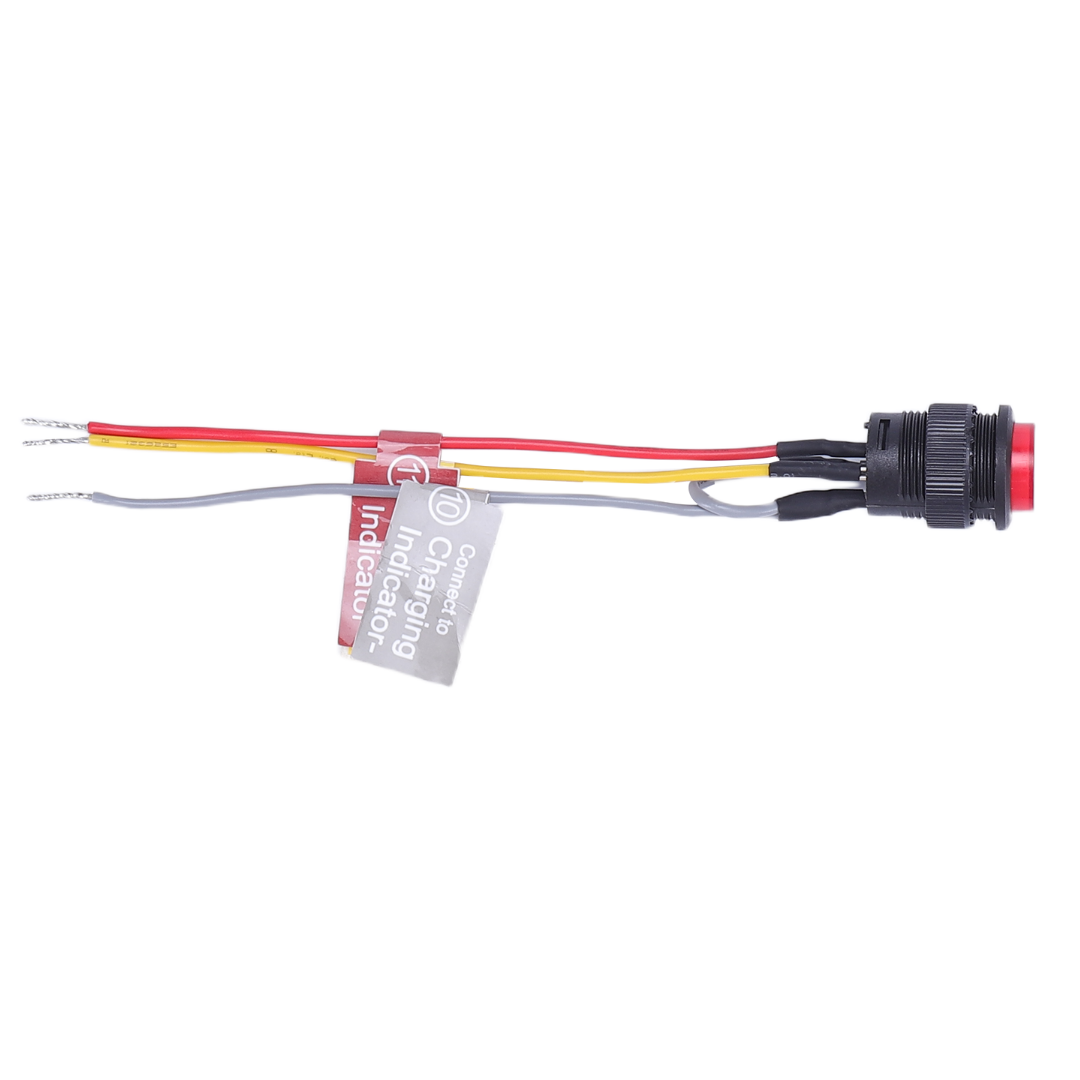

• Self-testing diagnostics (monthly & annual)

• 100–347Vac input

• Lithium-ion battery system

• Field or factory installation

• Damp location rated

• 5-year warranty

Available Configurations

Select the emergency output voltage and wattage that matches your fixture requirements. Output is factory configured and not field adjustable.

• GLD-EM-VR1-0817: 170V Output – 8W Emergency

• GLD-EM-VR1-1817: 170V Output – 18W Emergency
