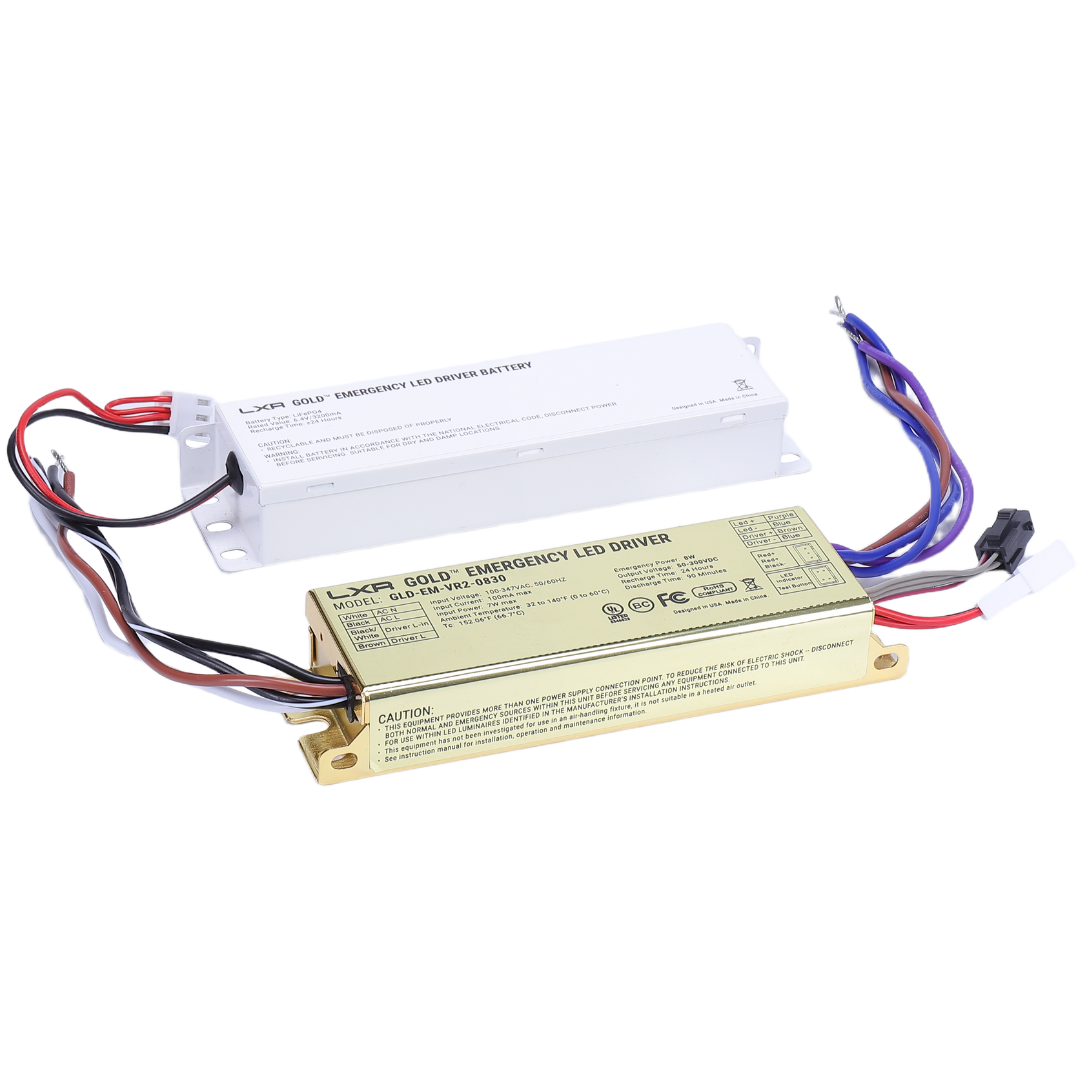

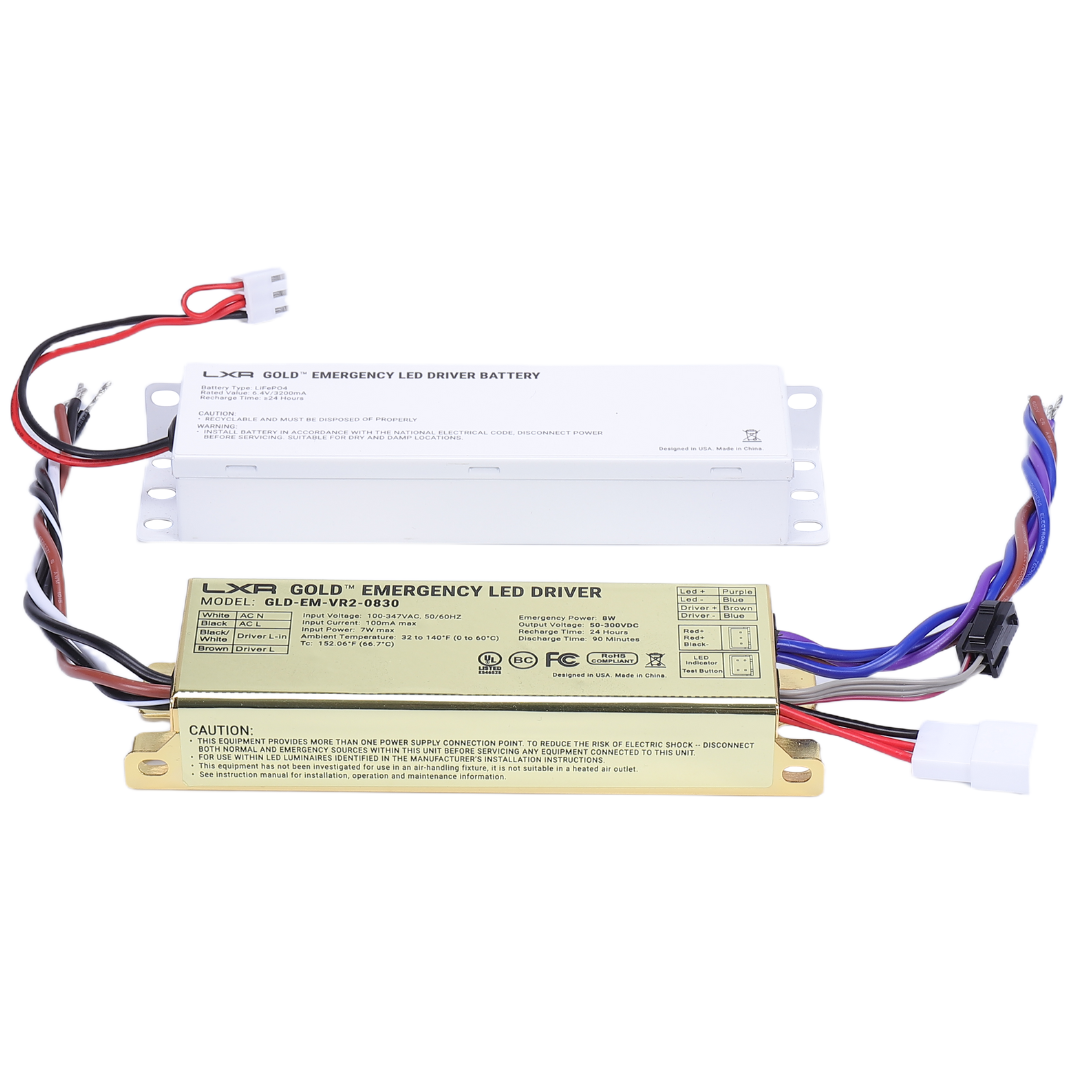

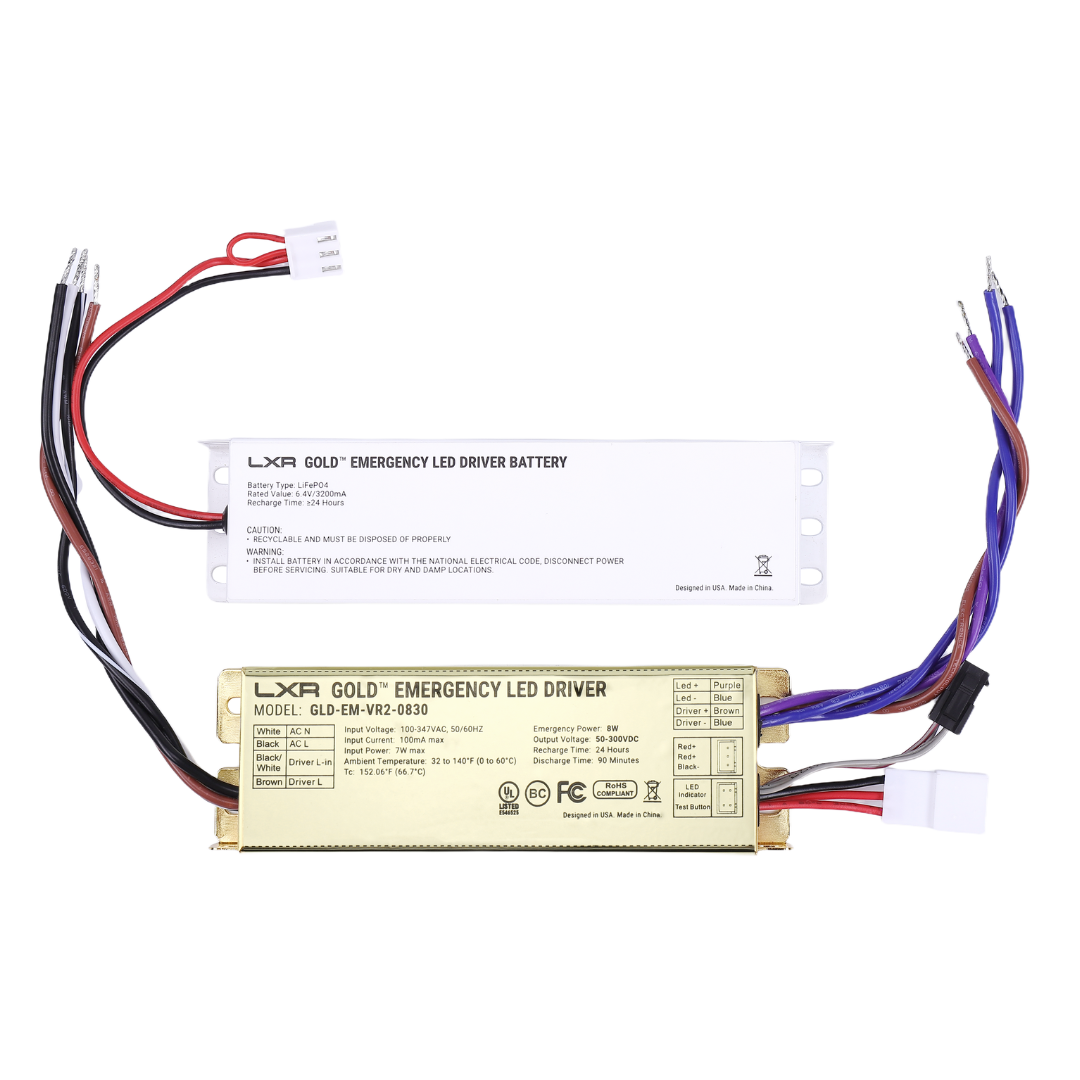

LED Emergency Battery Backup LED Driver – Wide-Range Output (VR2 Series), Self-Testing, UL 924

Product Description

The VR2 Series LED Emergency Battery Backup Drivers are designed for maximum fixture compatibility, providing 90 minutes of emergency illumination during power outages while meeting UL 924 and NFPA 101 Life Safety Code requirements.

Unlike fixed-output emergency drivers, the VR2 Series supports multiple emergency output voltage ranges, making it ideal for modern LED fixtures with variable forward voltages, long LED strings, or unknown driver configurations. This makes VR2 the preferred choice when flexibility and compatibility are critical.

Integrated self-testing diagnostics automatically perform monthly 30-second and annual 90-minute tests, ensuring ongoing compliance with minimal maintenance. LED indicators provide clear system and fault status for inspectors and facility teams.

With high-voltage input capability (100–347Vac), field or factory installation, and a long-life lithium-ion battery, the VR2 Series is a versatile, contractor-grade solution across a wide range of commercial and industrial applications.

Backed by a 5-year warranty, VR2 emergency drivers reduce risk, simplify specification, and eliminate guesswork in emergency lighting design.

Key Features

• UL 924 & NFPA 101 compliant

• Wide-range emergency output options

• 90-minute emergency runtime

• Self-testing diagnostics (monthly & annual)

• 100–347Vac input

• Lithium-ion battery

• Field or factory install

• Damp location rated

• 5-year warranty

Available Configurations

Select the emergency output voltage and wattage that matches your fixture requirements. Output is factory configured and not field adjustable.

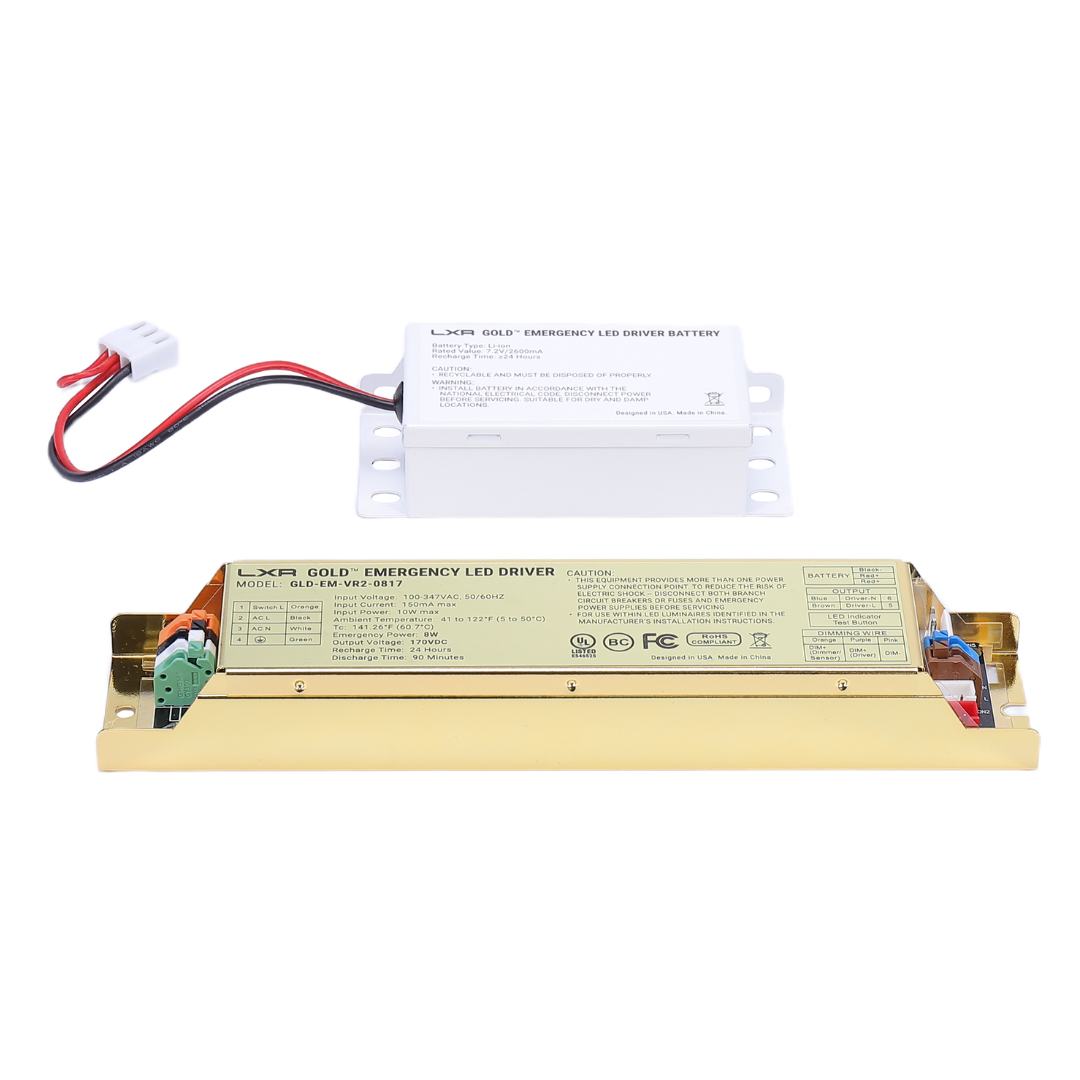

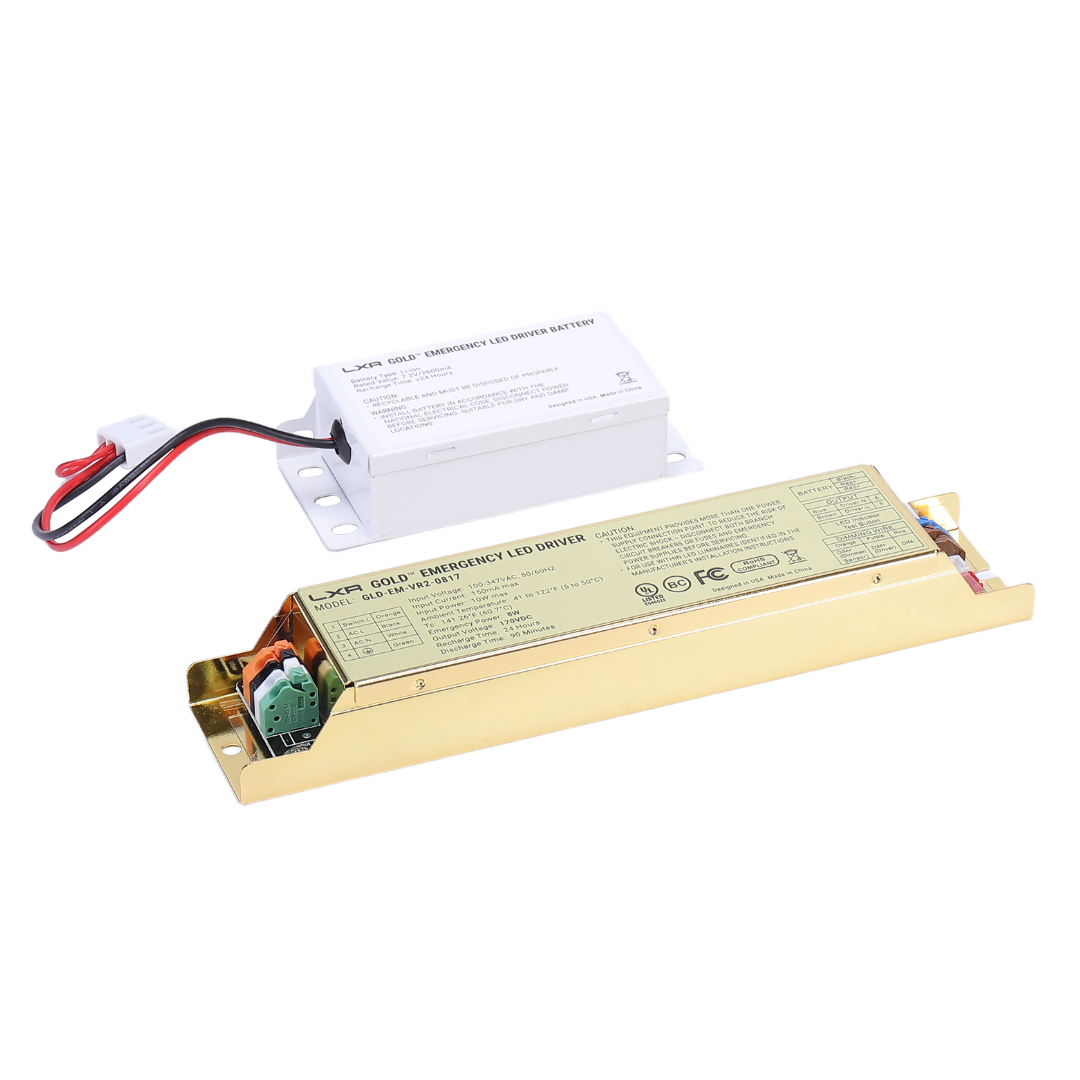

• GLD-EM-VR2-0817: 170V Output – 8W Emergency [Download Spec Sheet (PDF)]

• GLD-EM-VR2-1817: 170V Output – 18W Emergency [Download Spec Sheet (PDF)]

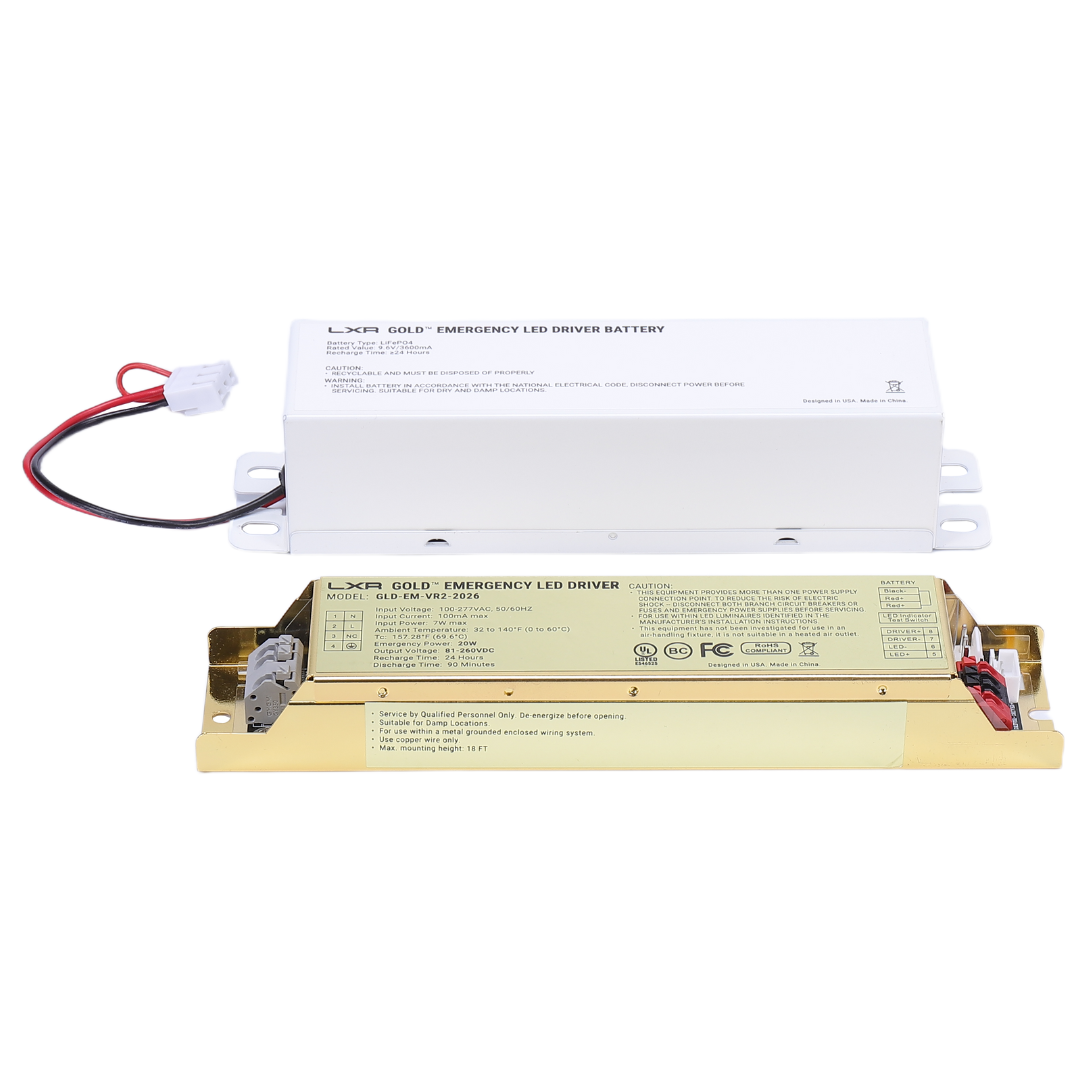

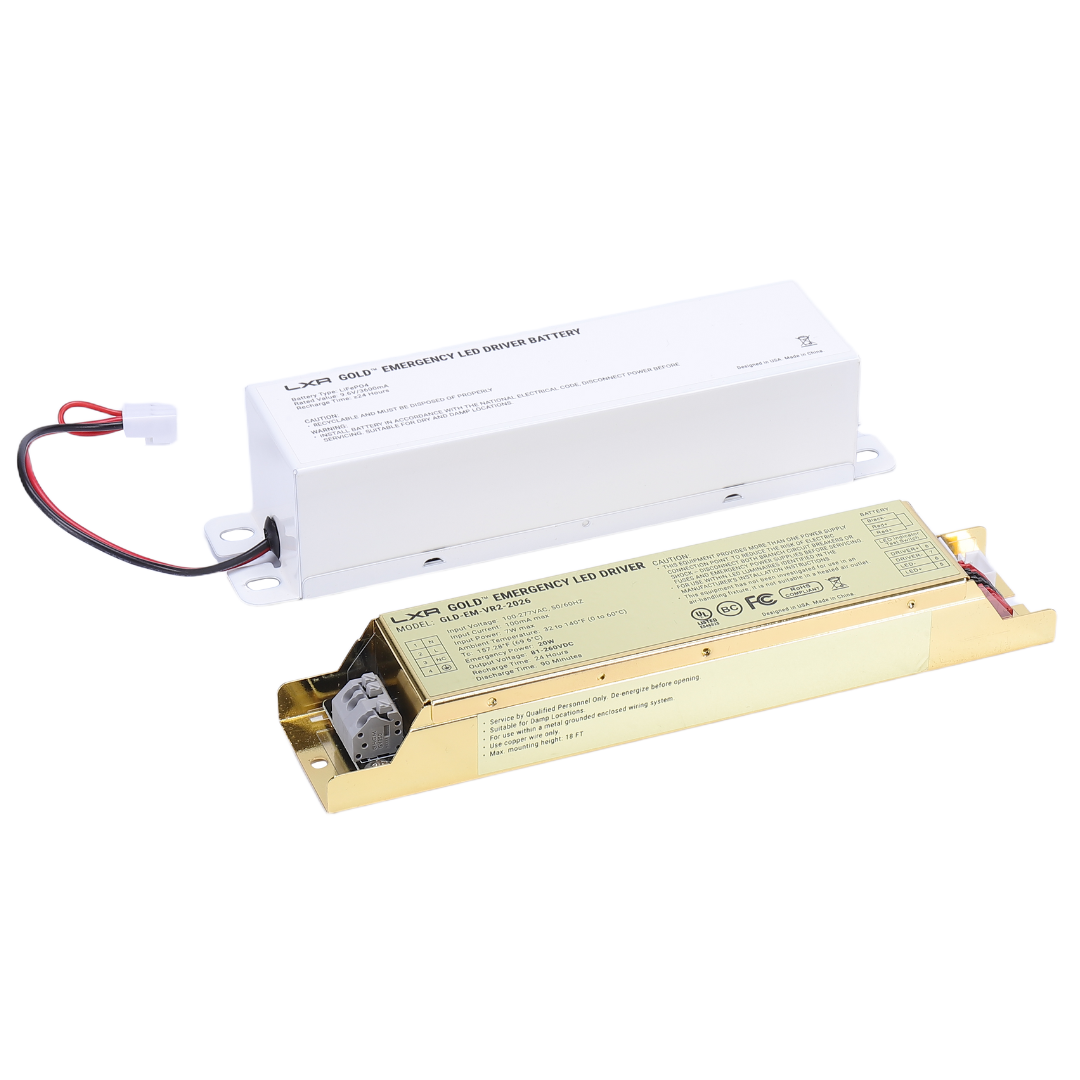

• GLD-EM-VR2-2026: 25–260V Output – 20W Emergency [Download Spec Sheet (PDF)]

• GLD-EM-VR2-2030: 25–260V Output – 30W Emergency [Download Spec Sheet (PDF)]

• GLD-EM-VR2-0517: 50–300V Output – 5W Emergency [Download Spec Sheet (PDF)]

• GLD-EM-VR2-0817: 50–300V Output – 8W Emergency [Download Spec Sheet (PDF)]

• GLD-EM-VR2-1517: 50–300V Output – 15W Emergency [Download Spec Sheet (PDF)]
