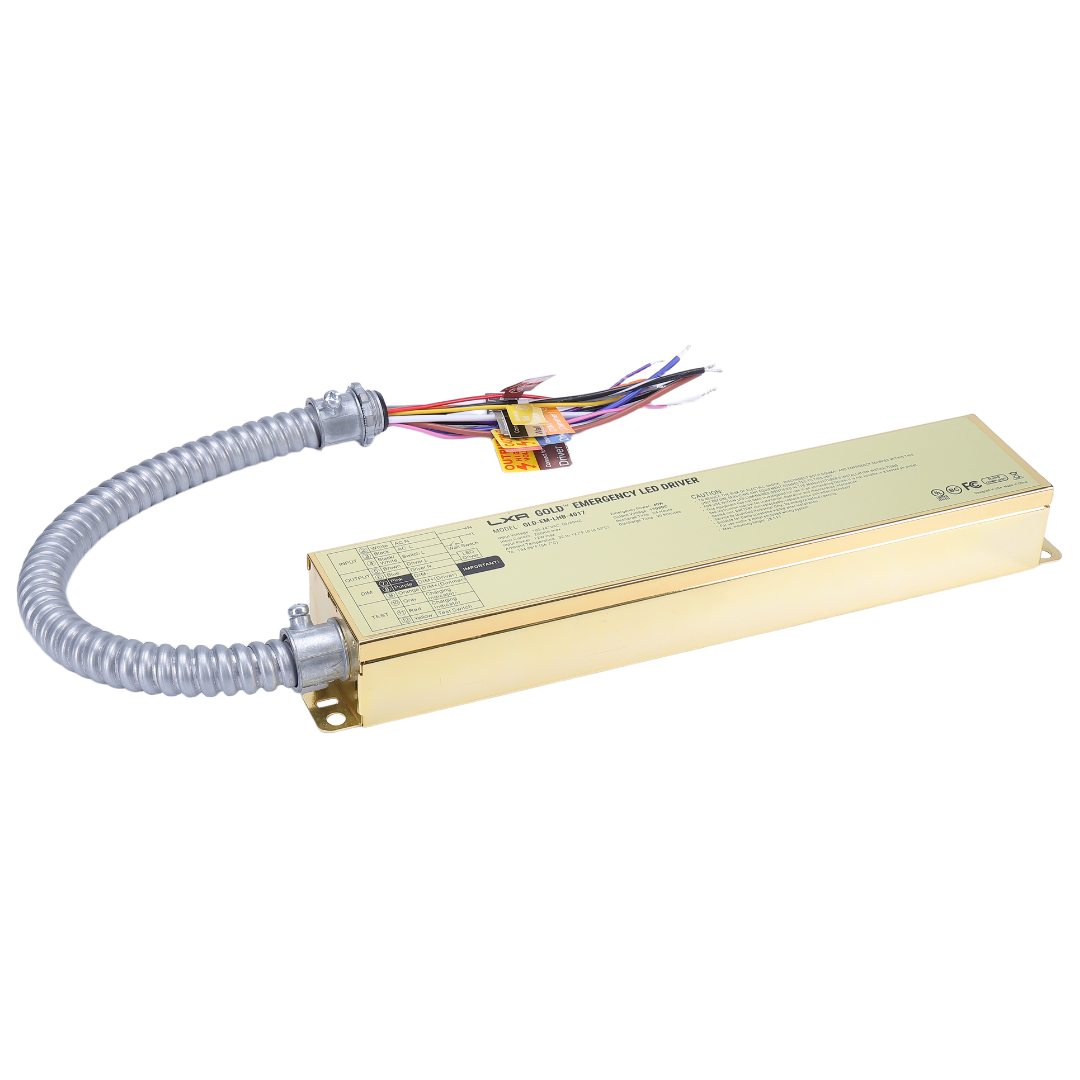

LED Emergency Battery Backup LED Driver – High-Output for Linear High-Bay Fixtures (LHB Series), Self-Testing, UL 924

⬇️Download Spec Sheet

Product Title

LED Emergency Battery Backup LED Driver – High-Output for High-Bay Fixtures (LHB Series), UL 924

Product Description

The LHB Series LED Emergency Battery Backup Drivers are engineered specifically for high-bay, low-bay, and high-output LED fixtures, delivering 90 minutes of emergency illumination during power outages in full compliance with UL 924 and NFPA 101 Life Safety Code.

Designed to support higher emergency wattage requirements, the LHB Series is ideal for warehouses, manufacturing facilities, gymnasiums, distribution centers, and industrial spaces where standard emergency drivers are insufficient.

Each driver includes self-testing diagnostics with automatic monthly and annual testing, ensuring consistent code compliance with minimal maintenance. Clear LED indicators simplify inspections and system verification.

With 100–347Vac input, field or factory installation, and a long-life lithium-ion battery, the LHB Series delivers dependable emergency performance in demanding environments.

Backed by a 5-year warranty, the LHB Series is the go-to emergency driver for high-lumen fixtures that require reliable, inspection-ready emergency operation.

Key Features

• UL 924 & NFPA 101 compliant

• High-output emergency power

• 90-minute emergency runtime

• Self-testing diagnostics

• 100–347Vac input

• Lithium-ion battery

• Field or factory install

• Damp location rated

• 5-year warranty

Available Configurations

Select the emergency output voltage and wattage that matches your fixture requirements. Output is factory configured and not field adjustable.

• GLD-EM-LHB-1517: 15W Emergency

• GLD-EM-LHB-2517: 25W Emergency

• GLD-EM-LHB-4017: 40W Emergency
