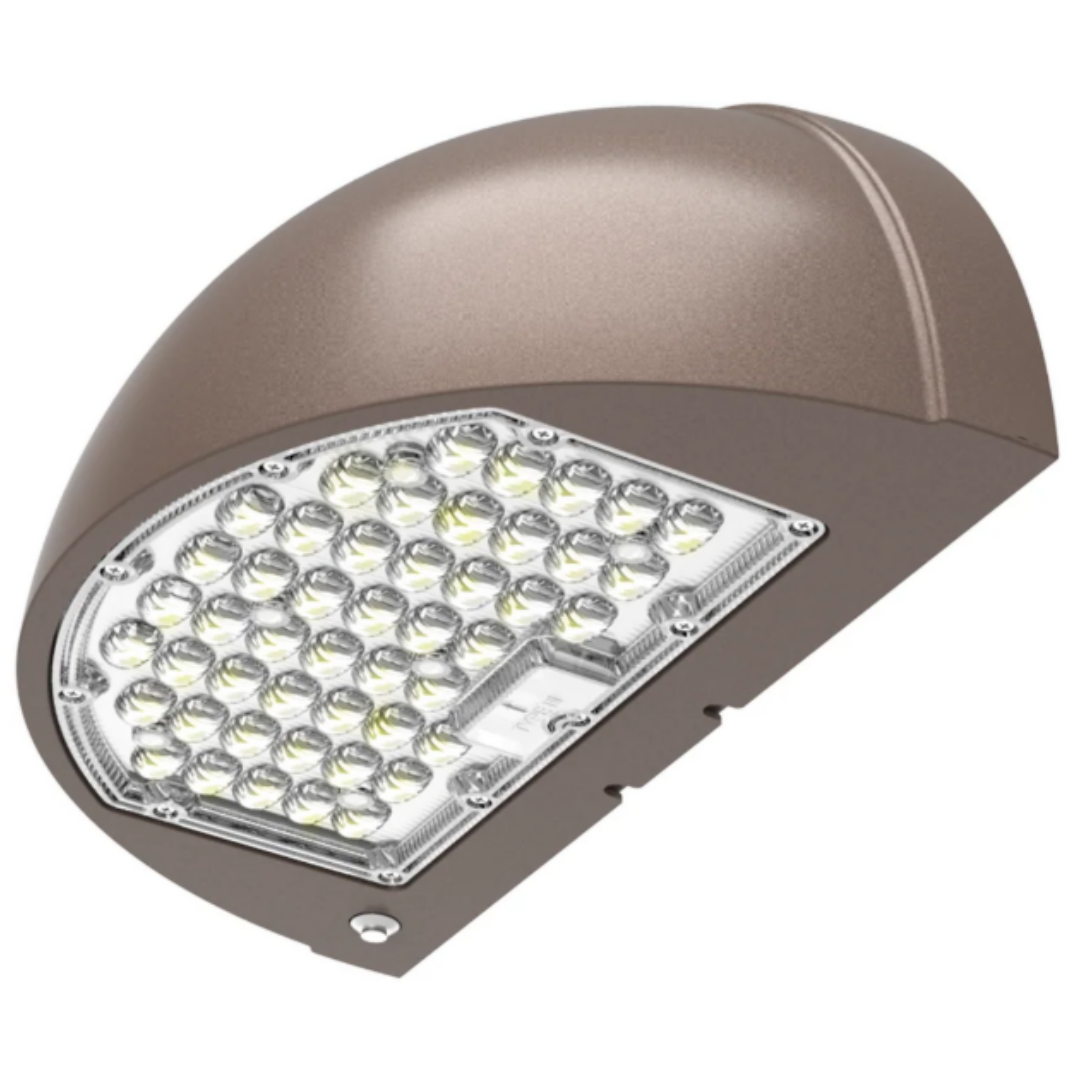

LED Half-Dome Wall Pack – Full Cutoff, Selectable Wattage & CCT, IP65

⬇️Spec Sheet Coming Soon

Product Description

This LED Half-Dome Wall Pack is designed for exterior applications where controlled, downward illumination is required without glare or light spill. The half-dome housing provides a clean, shielded form factor that directs light precisely to the ground plane, making it ideal for building perimeters, walkways, and pedestrian areas.

Selectable wattage and selectable CCT allow installers to dial in output and color temperature on site, reducing SKU complexity and avoiding fixture swaps when conditions change. A built-in photocell comes standard, delivering automatic dusk-to-dawn operation without the need for additional controls.

Constructed with a heavy die-cast aluminum housing and high-efficiency optics, this fixture is built for long-term outdoor performance. Its full cutoff distribution supports compliance-minded projects while maintaining consistent, usable coverage for commercial and institutional environments.

Why Contractors Choose This Half-Dome Wall Pack

Full Cutoff Distribution
Directs light downward to minimize glare, uplight, and light trespass.

Selectable Wattage & CCT
One fixture adapts to multiple applications, simplifying inventory and change orders.

Built-In Photocell
Standard dusk-to-dawn operation without added accessories.

Clean Half-Dome Profile

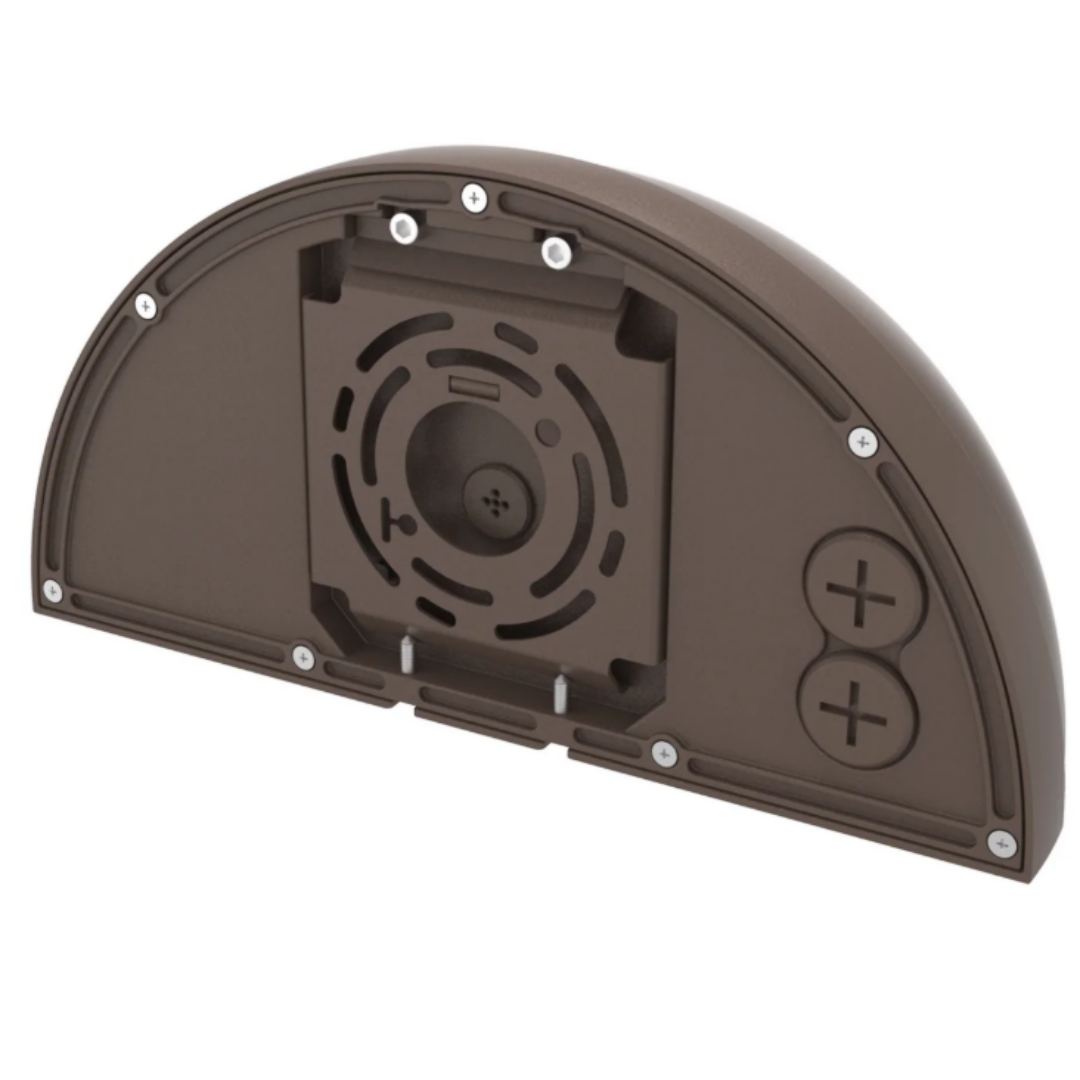

Low-profile design integrates well with modern and legacy building exteriors.

Wide Voltage Compatibility
Supports 120–347V installations across commercial sites.

Rugged Outdoor Construction
Built for wet locations and continuous operation.

Selectable Output

This fixture is field selectable, allowing installers to adjust output on site:

• 48W

• 64W

• 80W

Easily matched to mounting height, spacing, and coverage requirements without changing fixture families.

Key Features

Optical & Performance

Full cutoff illumination with controlled forward distribution
Type III light pattern for perimeter and pathway coverage
High-efficiency LED system (~135 lm/W)
Reduced glare for pedestrian-friendly environments

Electrical

120–347V universal input
0–10V continuous dimming
Integrated dusk-to-dawn photocell
Power factor ≥ 0.9

Color Temperature (Field Selectable)

3000K – Warm White
4000K – Neutral White
5000K – Cool White

Construction & Ratings

Die-cast aluminum housing with corrosion-resistant finish
Impact-resistant, high-transmission lens
Wet Location Rated (IP65)
UL / cUL Listed
DLC Listed
5-Year Limited Warranty

Ideal Applications

Building perimeters
Walkways and pedestrian areas
Commercial entrances
Warehouse and storage exteriors
Transit platforms
Municipal and institutional facilities
