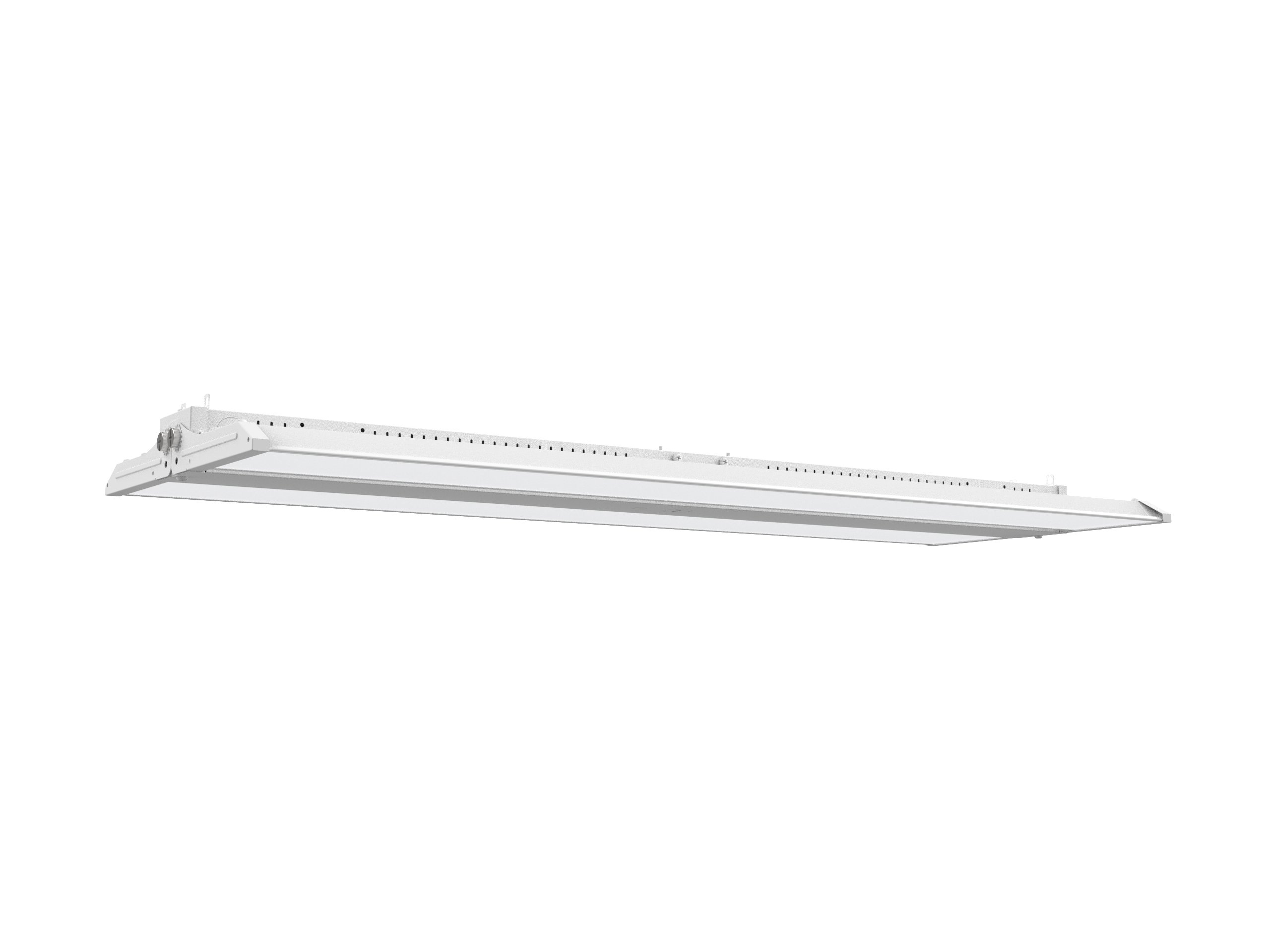

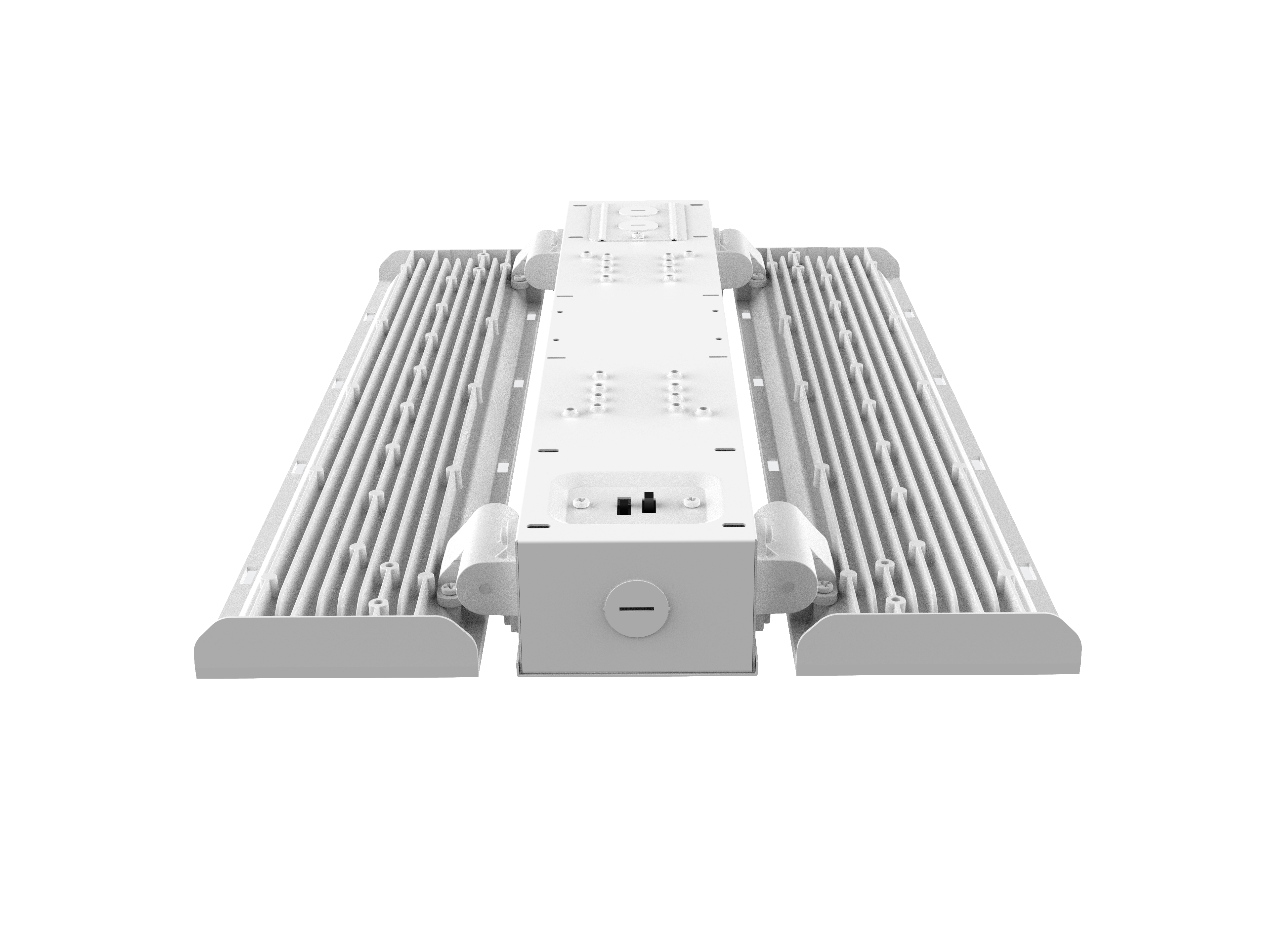

Foldable LED Linear High Bay – 3-Wattage & 3-CCT Tunable

12,000–45,000 Lumens • 150 lm/W • Damp Location Rated • Adjustable Beam

The Foldable LED Linear High Bay is designed for contractors who need maximum flexibility from a single fixture family. With foldable light panels, field-selectable wattage and CCT, and two size options (2 ft & 3 ft), this series adapts to ceiling height, aisle layout, and task requirements—without changing fixtures.

Whether you’re dialing in wide open distribution or tight aisle focus, this is a future-proof high-bay solution for demanding commercial and industrial spaces.

Why Contractors Choose This Series

• Adjustable Beam, On the Fixture

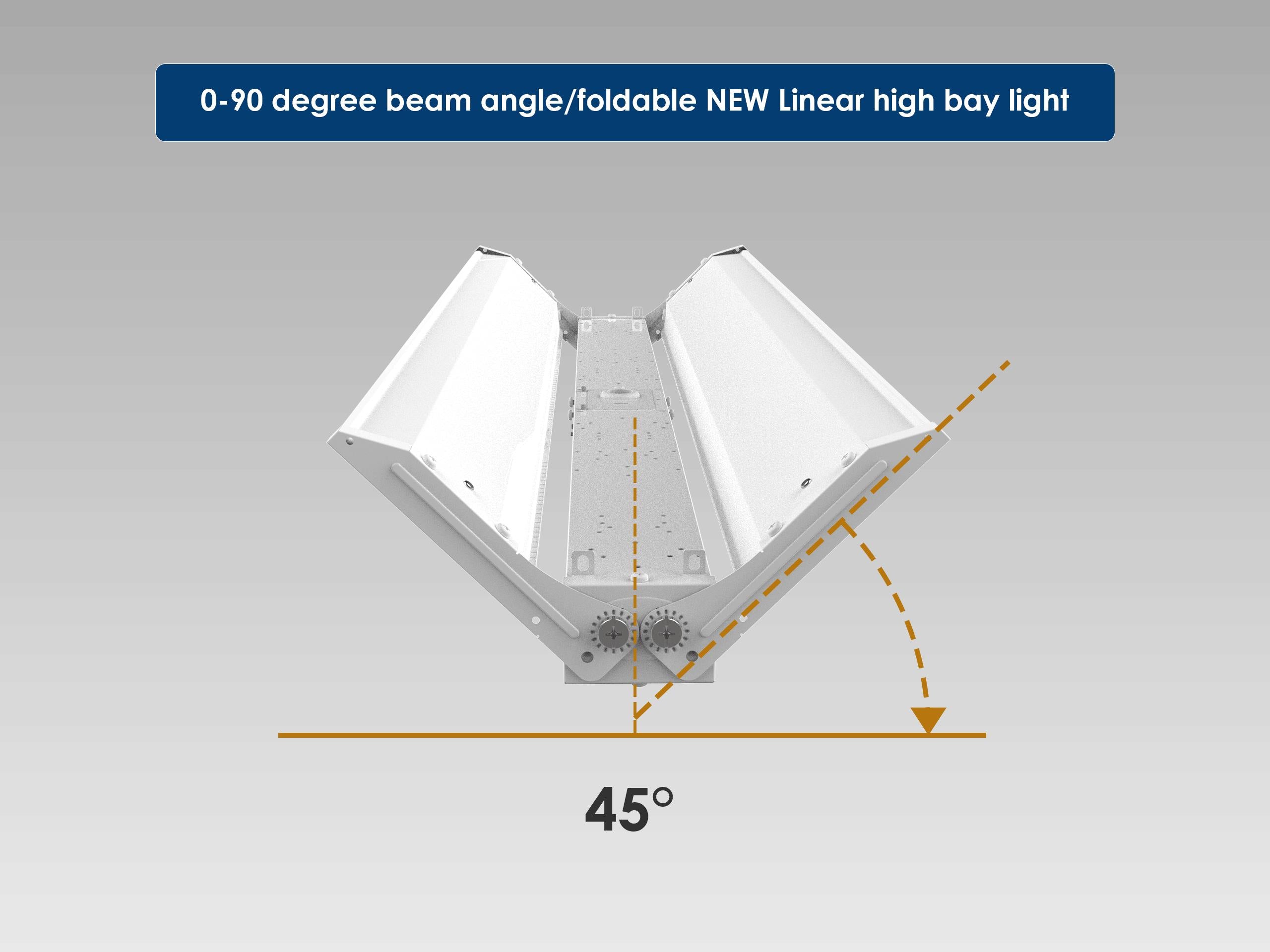

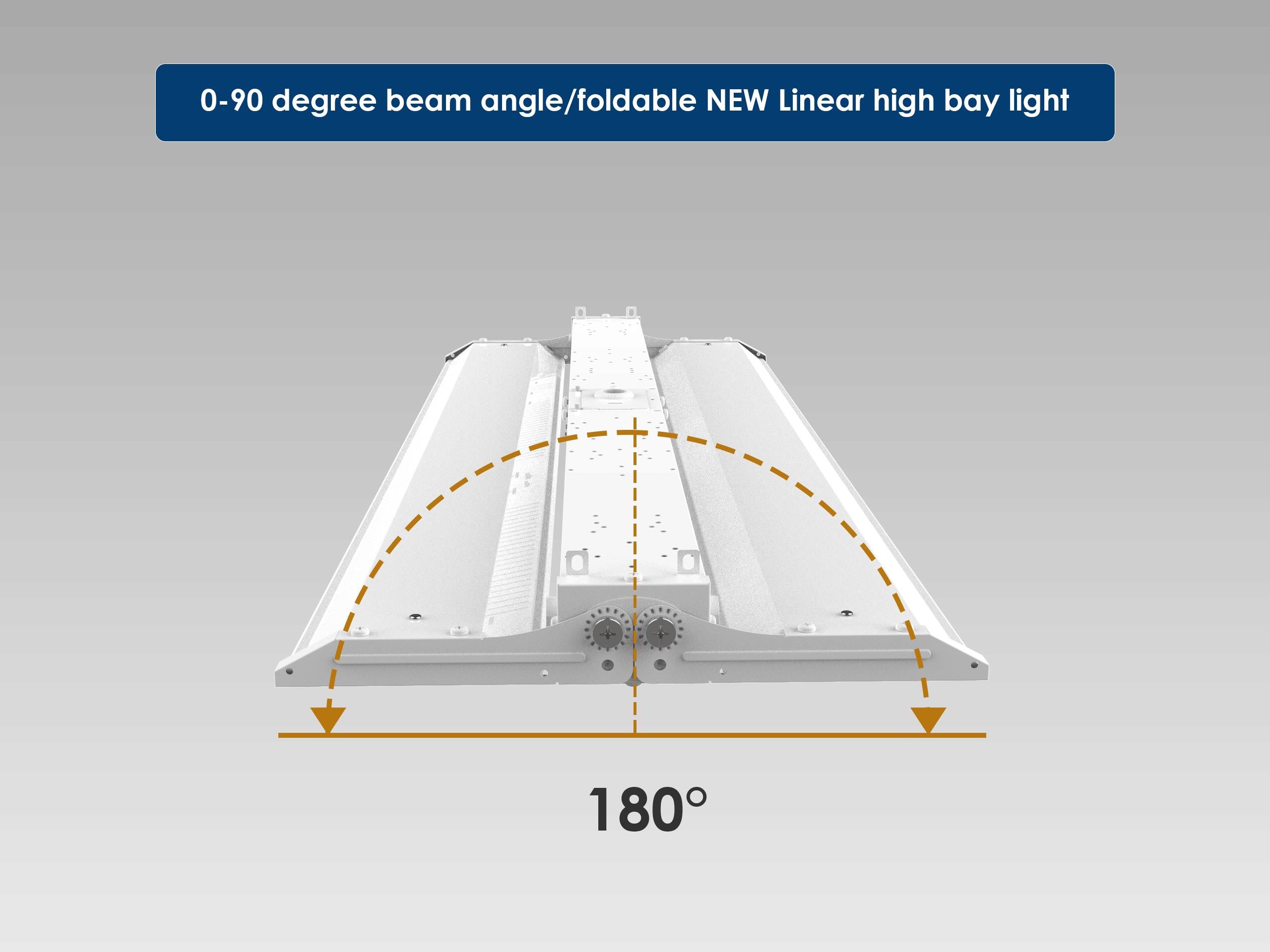

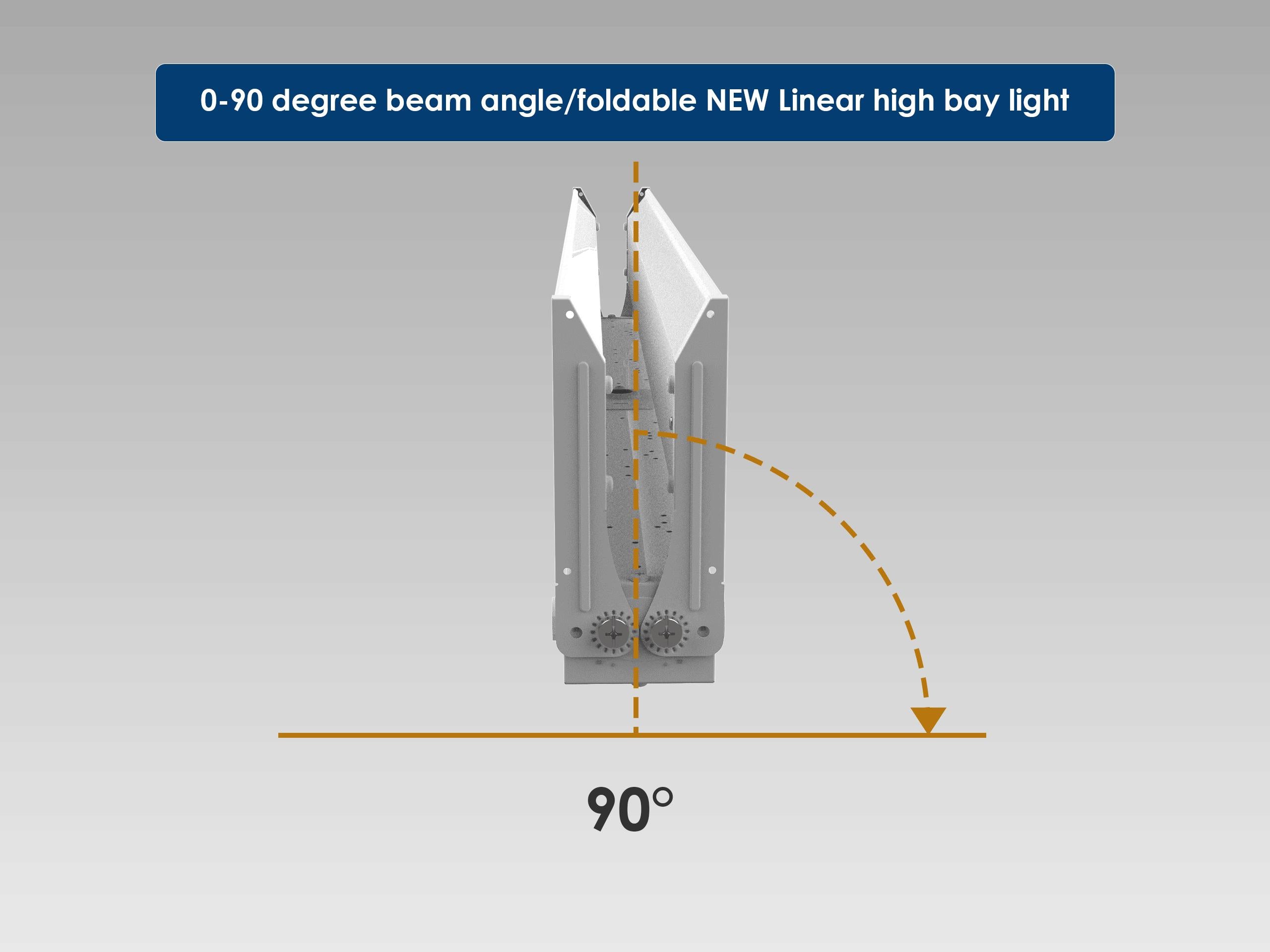

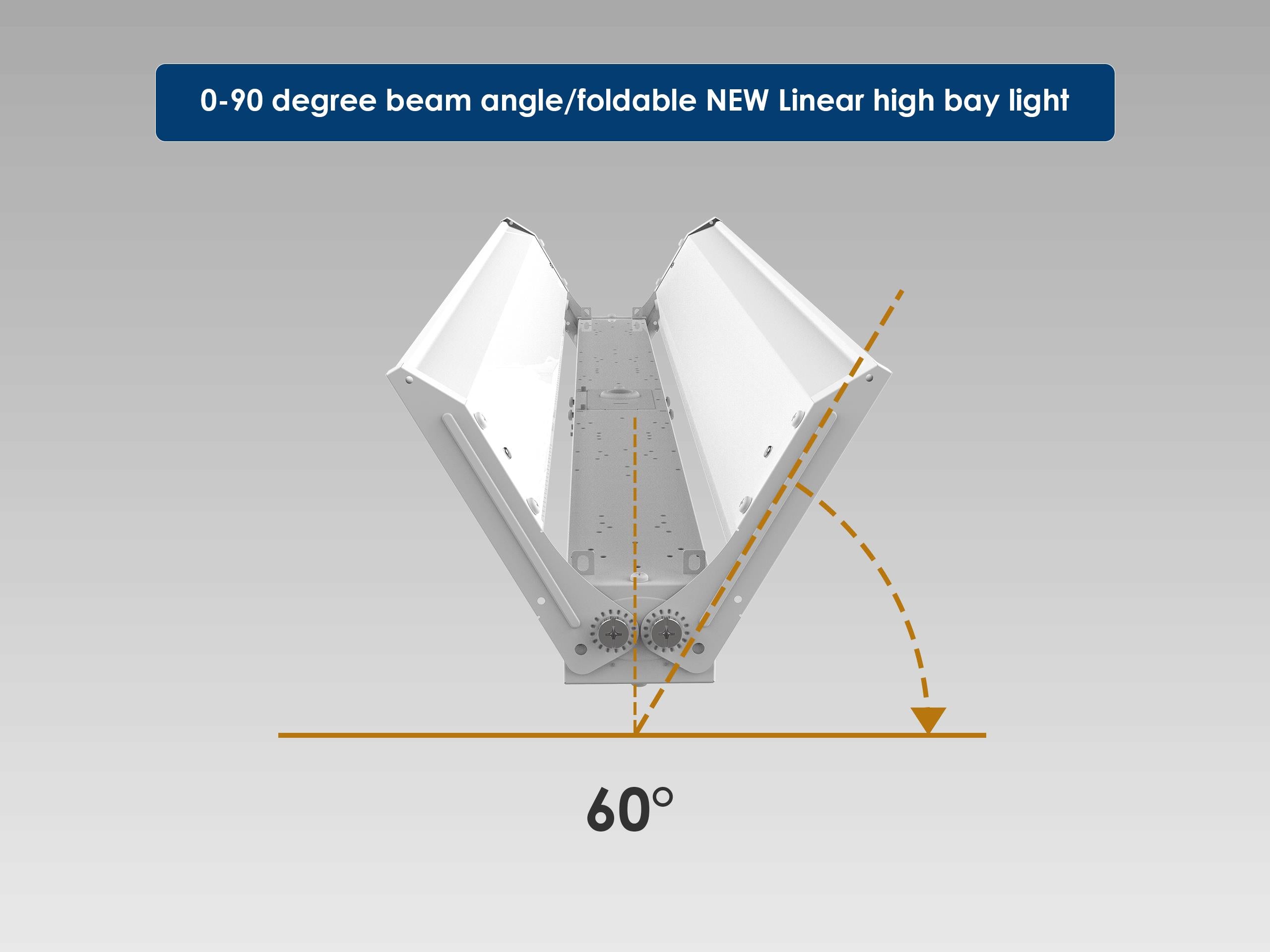

  Foldable panels allow beam spread adjustment from narrow to wide—no reflectors to swap.

• One Series, Multiple Outputs
  Choose the platform that fits the space:

  • 2 ft Models:

    • 80W / 110W / 165W selectable

    • 110W / 165W / 220W selectable

  • 3 ft Models:

    • 165W / 225W / 300W selectable

• 3-CCT Field Selectable
  Match visibility and comfort with 3500K / 4000K / 5000K—adjustable after install.

• High-Efficiency Performance
  Up to 150 lm/W for strong illumination with lower operating cost.

• Smart & Emergency Ready
  Accepts PIR or microwave sensors, remote control, Bluetooth options, and emergency drivers.

Ideal Applications

• Warehouses & distribution centers

• Manufacturing & packaging facilities

• Gymnasiums & recreation centers

• Aisle lighting & storage areas

• Covered decks & high-ceiling interiors

Suitable for mounting heights below and above 25 feet.

Performance at a Glance

• Available Sizes: 2 ft and 3 ft

• Selectable Wattage:

  • 2 ft: 80W / 110W / 165W

  • 2 ft: 110W / 165W / 220W

  • 3 ft: 165W / 225W / 300W

• Delivered Lumens: 12,000 – 45,000

• Efficacy: Up to 150 lm/W

• Selectable CCT: 3500K / 4000K / 5000K

• CRI: >70

• Dimming: 0–10V continuous

• Voltage: 120–277V

• Operating Temp: -40°F to 113°F

• Lifetime: L70 ≥ 50,000 hours

• Rating: Damp Location

Optics & Light Control

• Lens: Anti-UV frosted micro-filter polycarbonate

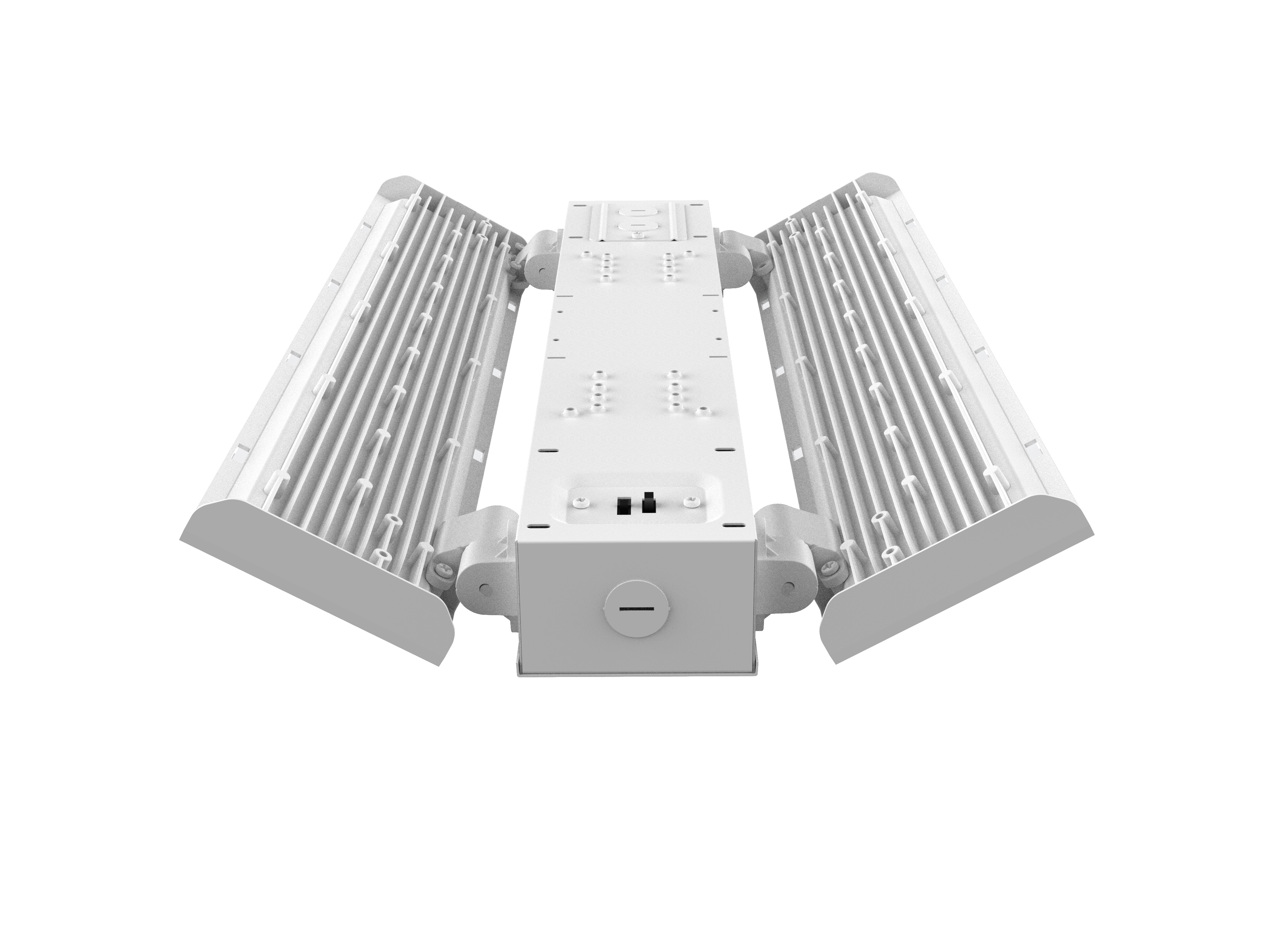

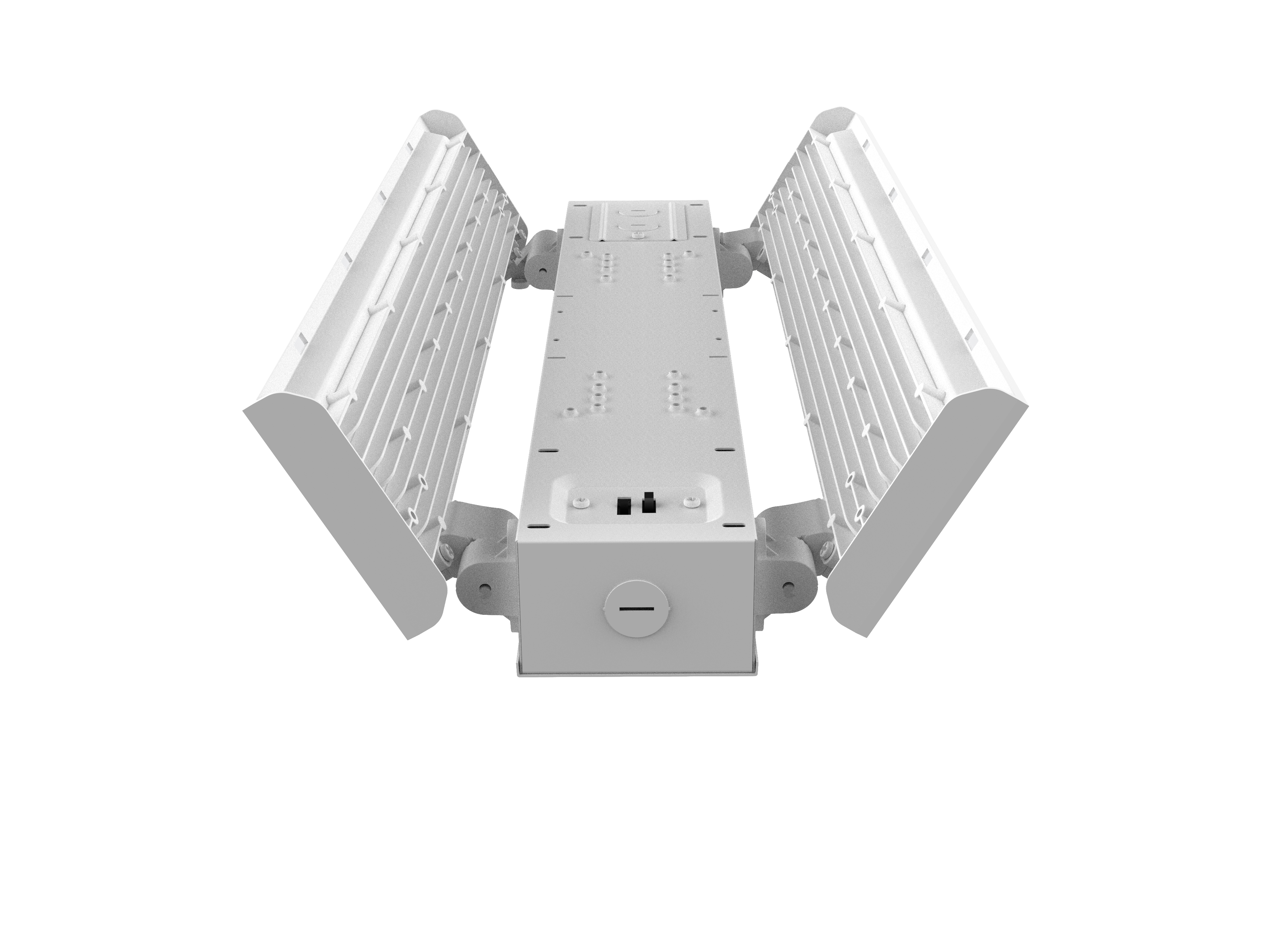

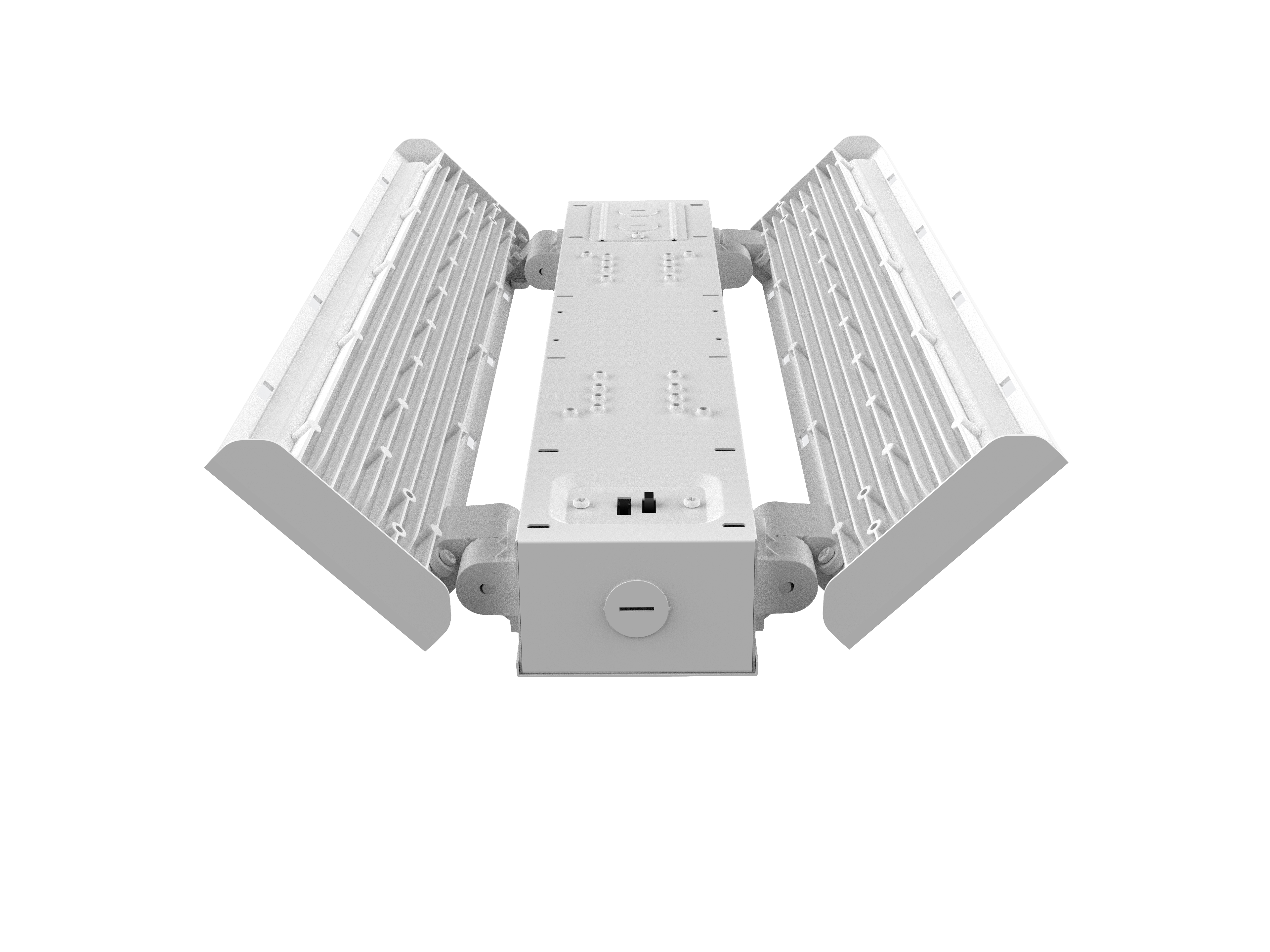

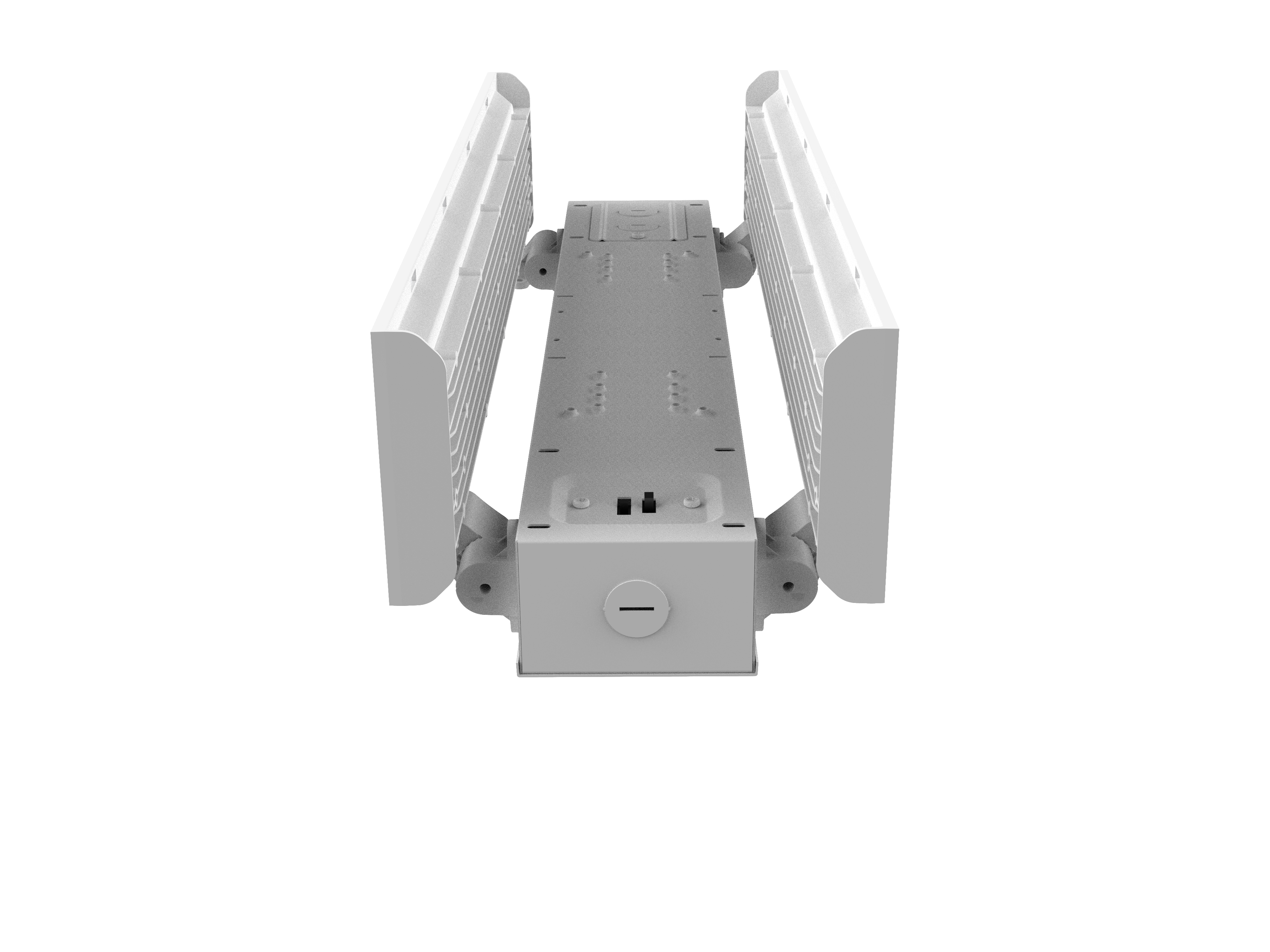

• Beam Control: Foldable panels for adjustable spread

• Light Quality: Even distribution with reduced glare

Ideal for balancing uniform coverage and task-focused illumination.

Mounting & Installation

• Standard: Aluminum V-hooks and chains

• Optional: Pendant mount bracket or 10-ft aircraft cables

• Wiring: 6-inch, 5-core, 18-AWG cable

Designed for fast hanging installs and consistent alignment.

Controls, Sensors & Emergency Options

• Fixture-mounted PIR or microwave sensors with daylight priority

• Remote control and Bluetooth configuration options

• 480V → 277V step-down autotransformer available

• 90-minute emergency backup driver options (15W or 20W)

Scale from basic on/off to advanced control without changing fixtures.

Built for Long-Term Reliability

• Aluminum sheet housing with semi-gloss protective coating

• Ventilated driver bay for improved thermal management

• Power Factor: >0.9

• THD: <15%

Built for continuous operation in demanding environments.

Compliance & Warranty

• DLC Premium Listed

• UL Certified (US & Canada)

• FCC & RoHS Compliant

• Damp Location Rated

• 5-Year Limited Warranty

The Contractor Advantage

This foldable linear high bay is designed to reduce planning risk and future rework:

• Adjustable beam without accessory changes

• One family scales across ceiling heights

• Flexible controls and emergency options

• Clean, modern appearance across facilities

If you want a high-output linear high bay that adapts after installation, this is the fixture to spec.
