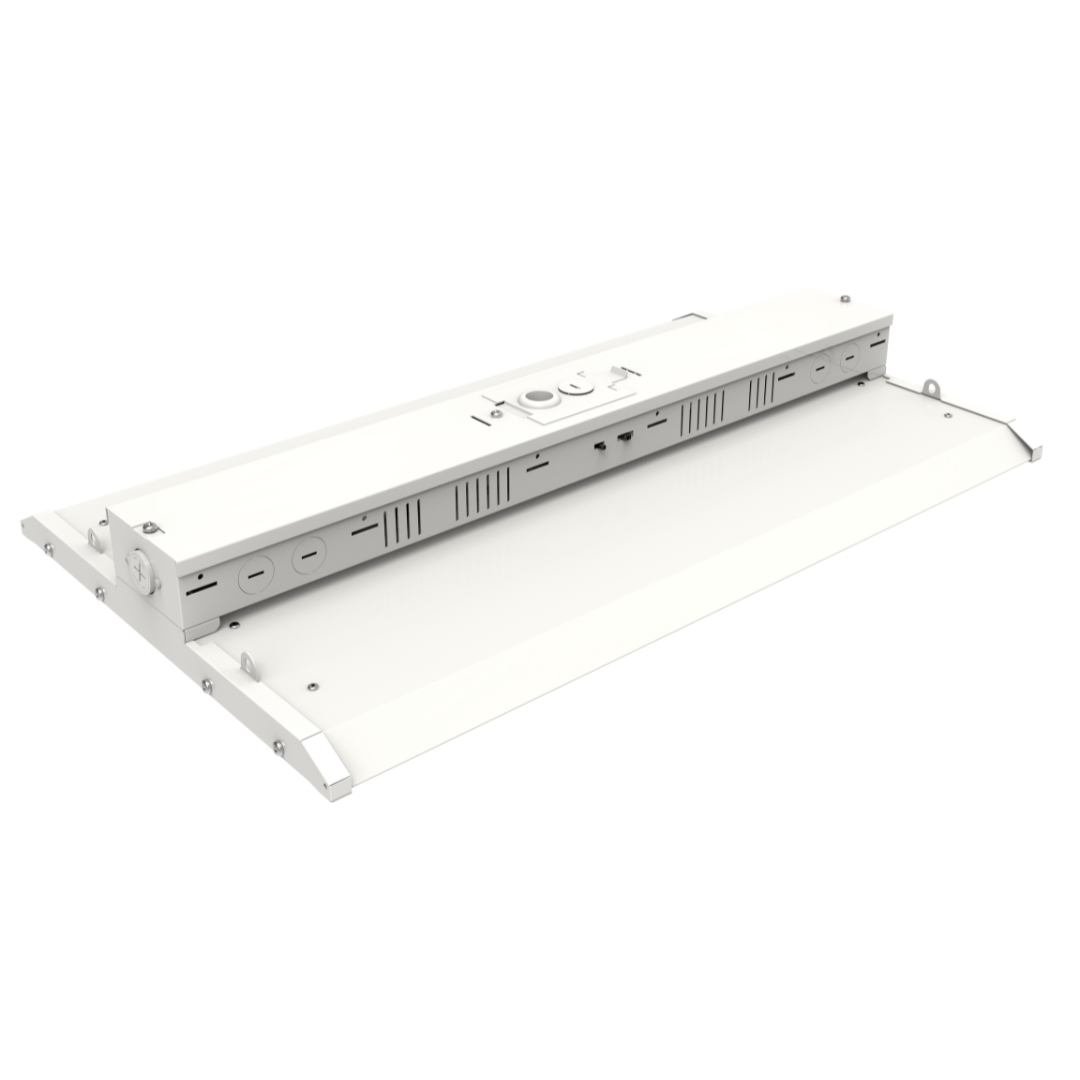

LED Linear High Bay – 3-Wattage & 3-CCT Tunable

2 ft & 4 ft Options • Up to 300W Max • Up to 150 lm/W • Damp Location Rated

The LED Linear High Bay – 3-Wattage & 3-CCT Tunable Series is built for wide-aisle and open high-bay spaces where linear distribution, uniform coverage, and flexibility are critical. This series offers three form factors within one family—two 2-ft models and one 4-ft model—allowing you to maintain consistent appearance while scaling output to ceiling height and layout.

With field-selectable wattage, tunable CCT, and plug-and-play controls, this is a future-proof solution for warehouses, manufacturing floors, and high-ceiling commercial spaces.

Why Contractors Choose This Series

• One Series, Three Sizes
  Maintain a consistent look across layouts with:

  • 2 ft: 160W / 110W / 80W selectable

  • 2 ft: 220W / 160W / 110W selectable

  • 4 ft: 300W / 225W / 160W selectable

• Field-Selectable Wattage & CCT
  Adjust both output and color temperature on site—no fixture swaps if specs change.

• High Efficiency, High Output
  Up to 150 lm/W with delivered performance suitable for demanding high-bay environments.

• Linear Distribution for Aisles
  90° distribution provides uniform coverage ideal for shelving, racking, and production lines.

• Built for Industrial Environments
  Rugged galvanized steel housing improves thermal performance and long-term reliability.

Ideal Applications

• Warehouses & distribution centers

• Manufacturing & assembly areas

• High-bay aisles

• Gymnasiums & recreation centers

• Industrial and commercial facilities

Designed for mounting heights above 25 feet where linear light patterns outperform round high bays.

Performance at a Glance

• Available Sizes:

  • 2 ft


  • 4 ft

• Selectable Wattage:

  • 2 ft: 80W / 110W / 160W

  • 2 ft: 110W / 160W / 220W

  • 3 ft: 160W / 225W / 300W

• Efficacy: Up to 150 lm/W

• Selectable CCT: 3500K / 4000K / 5000K

• CRI: >80

• Dimming: 0–10V standard + 12V auxiliary dimming

• Voltage: 120–277V or 120–347V

• Operating Temp: -40°F to 113°F

• Lifetime: L70 > 50,000 hours

• Rating: Damp Location

Optics & Distribution

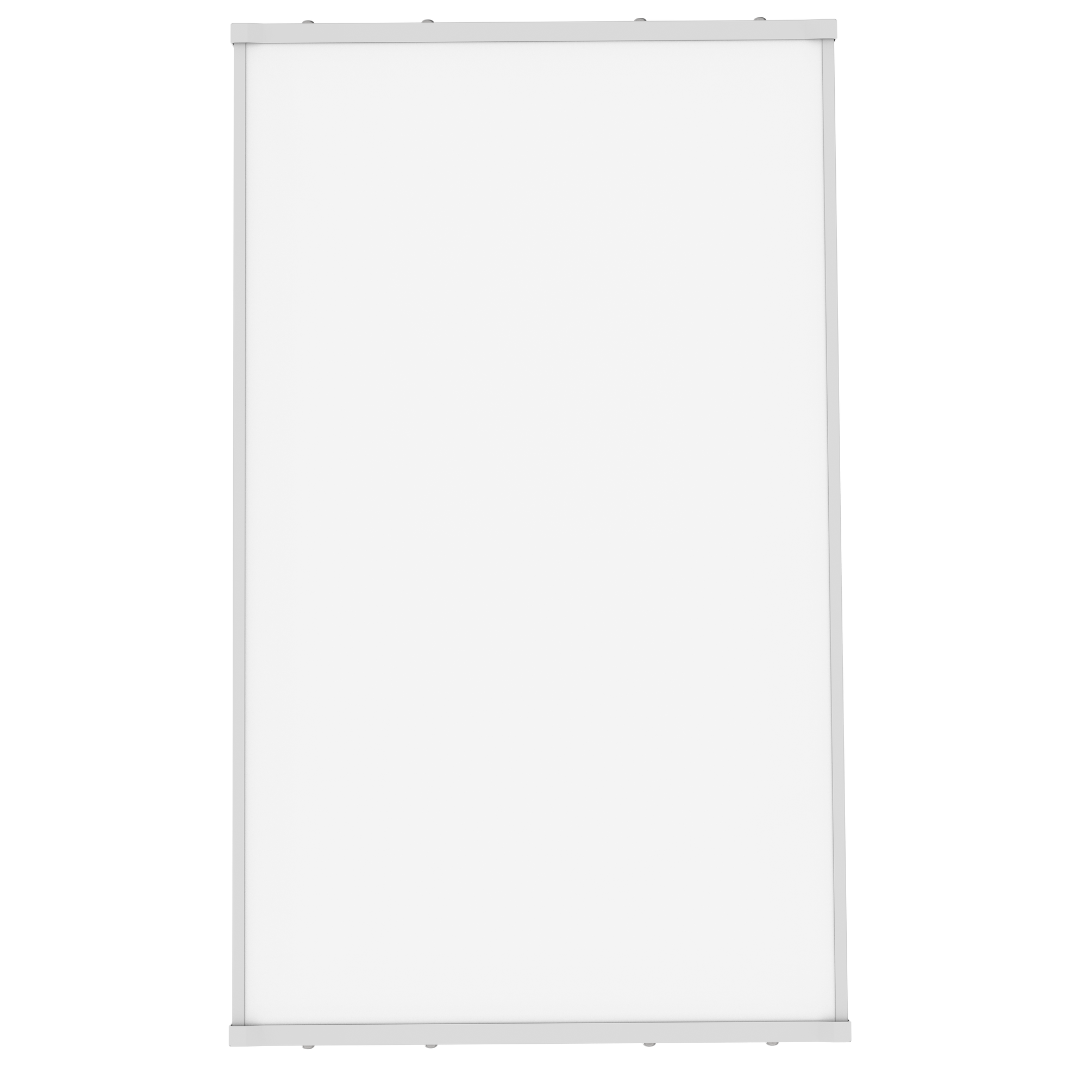

• Lens: Full-length lens for even illumination

• Distribution: 90° standard

• Light Quality: Improved uniformity and reduced hot spots across aisles

Engineered to maximize spacing and minimize fixture count.

Mounting & Installation

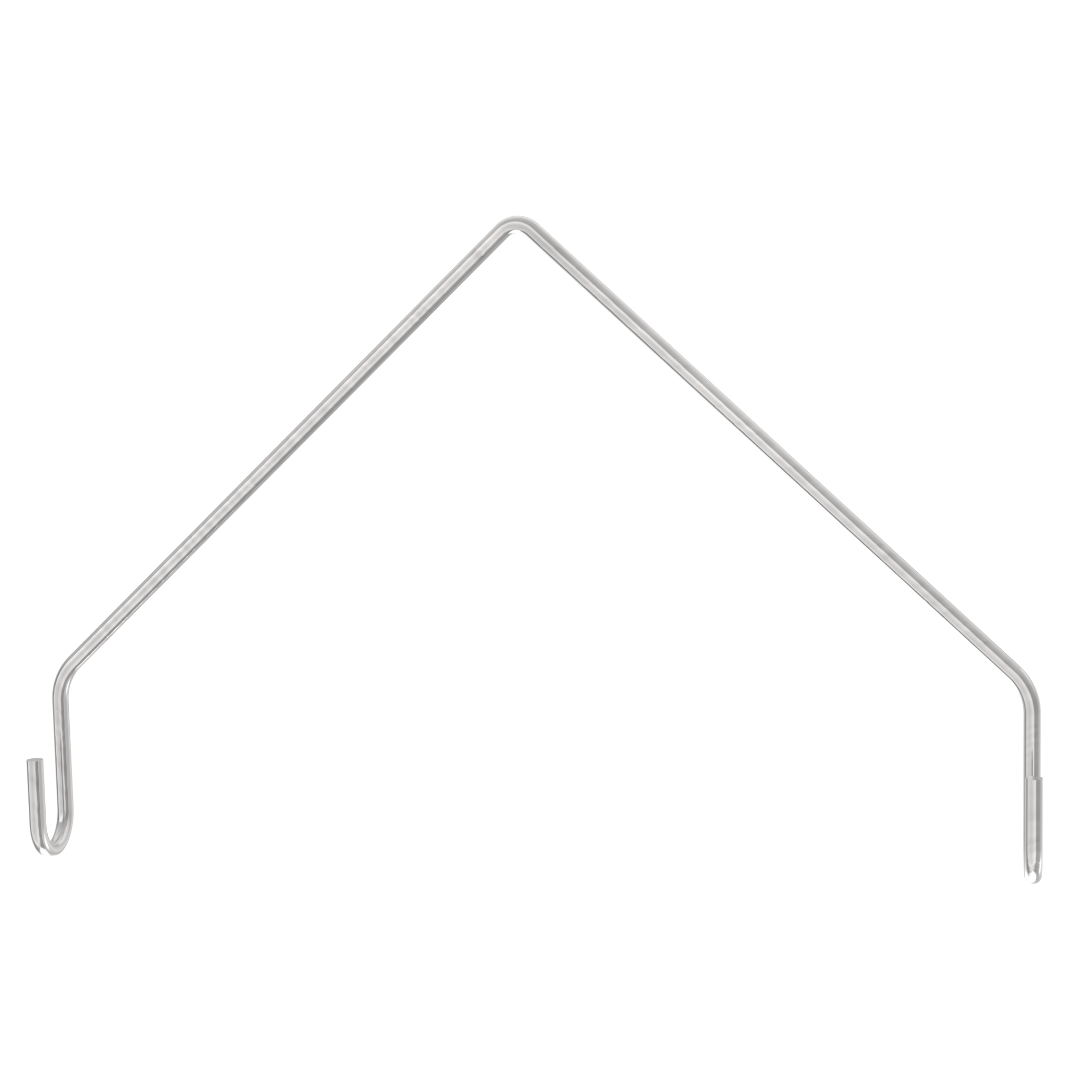

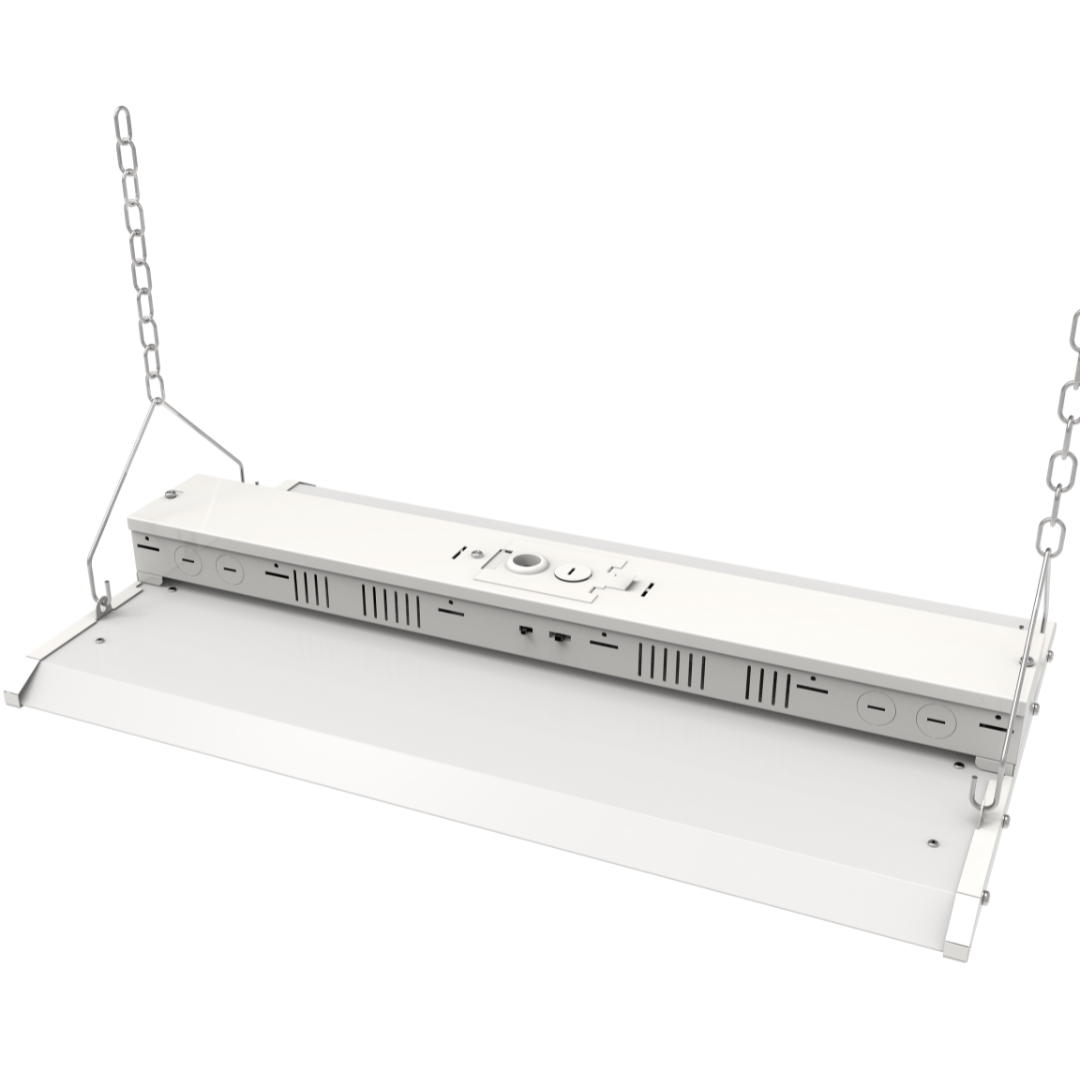

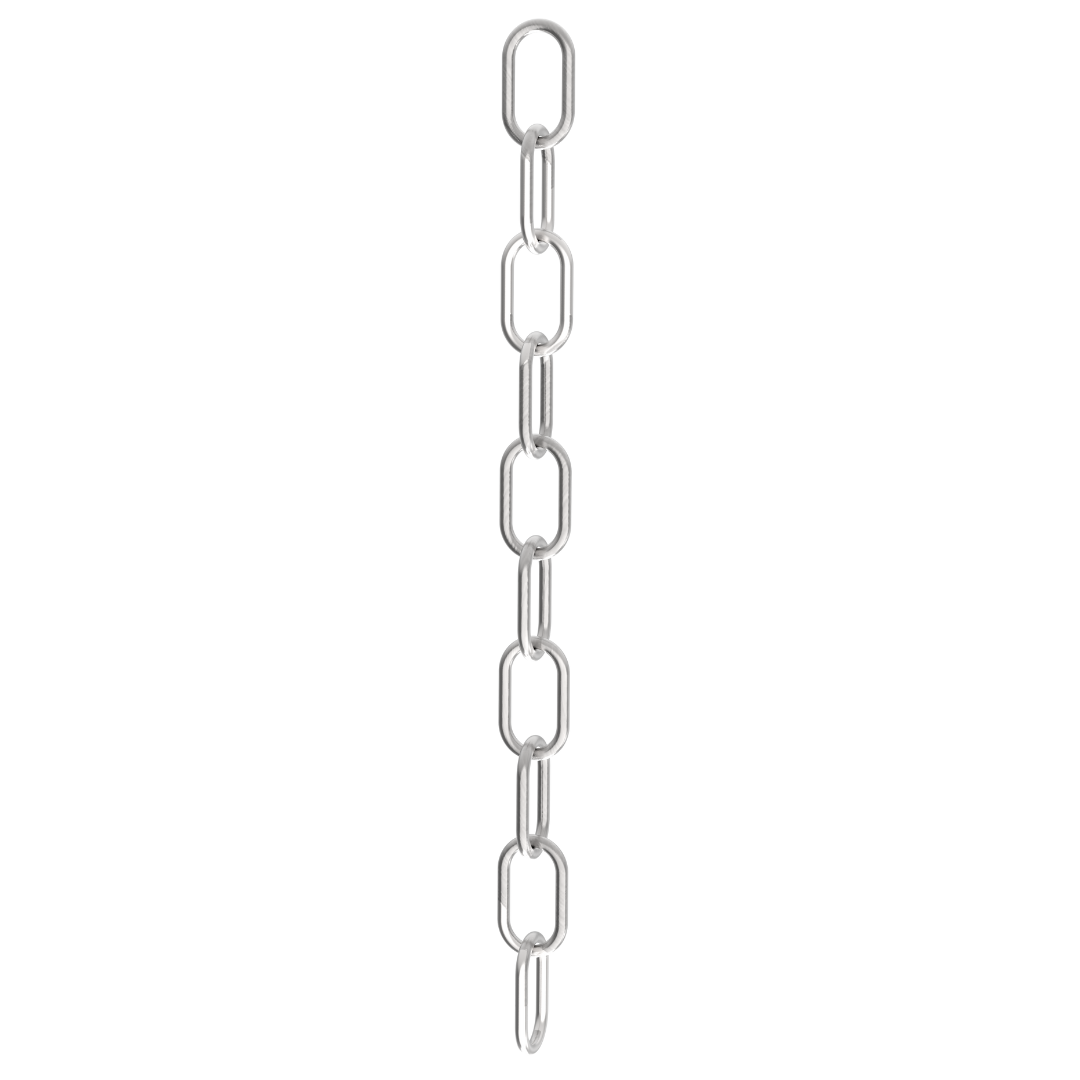

• Standard: Chain mount with L-bracket included

• Optional: Surface yoke mount

• Cable: 5-core, 18AWG quick-connect cable

Designed for fast installs and consistent results across large facilities.

Controls, Sensors & Emergency Options

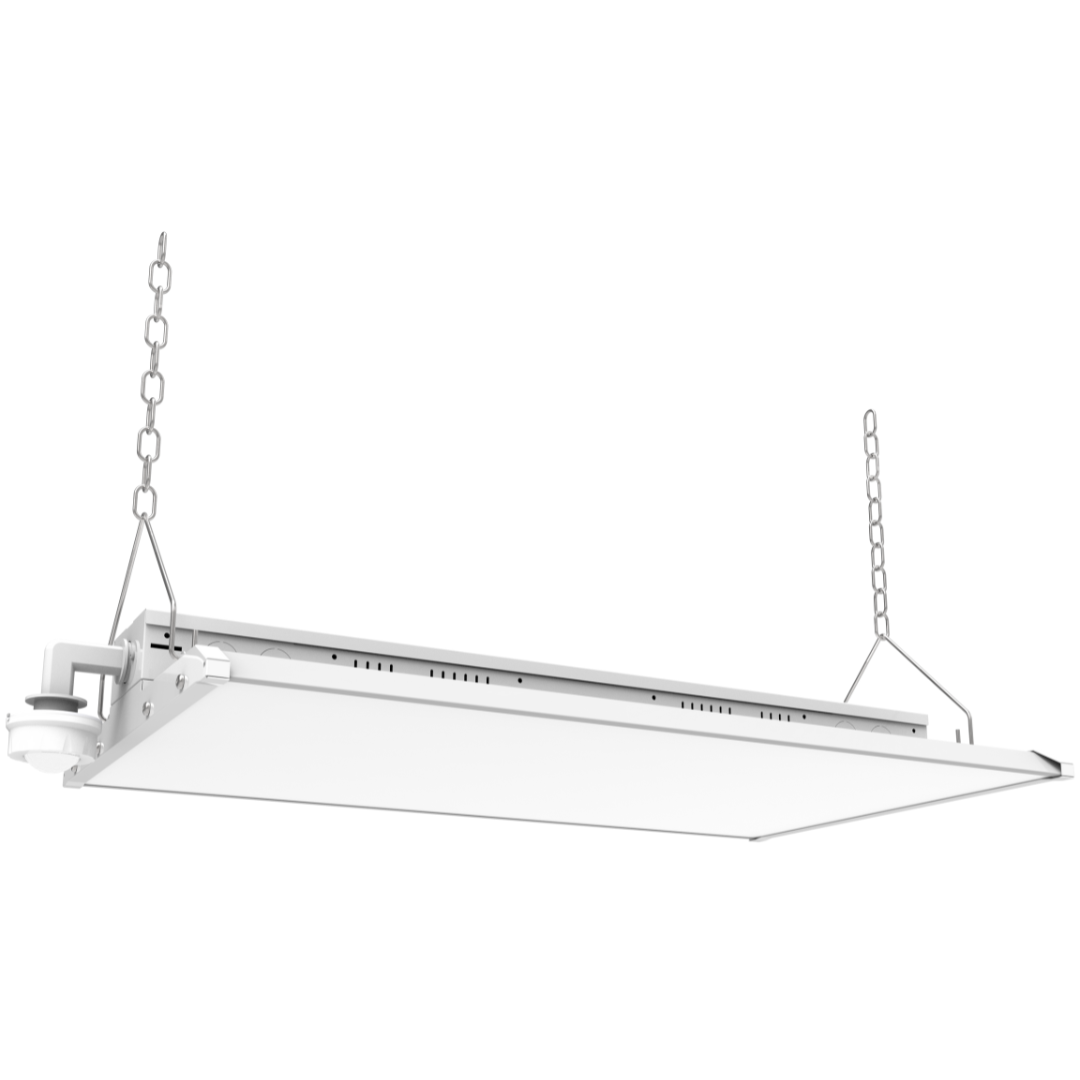

• Plug-and-play bi-level PIR or microwave sensors

• Bluetooth and remote-control sensor options

• Energy monitoring & high-end trim ready

• Optional 90-minute emergency battery driver

• Wire guard and surface mount accessories available

Scales from simple on/off to advanced control systems without re-spec’ing fixtures.

Built for Long-Term Reliability

• Galvanized rolled steel housing

• LED junction temperature < 85°C

• Power Factor: ≥0.9

• Driver Efficiency: 90%

• Industrial-grade components throughout

Compliance & Warranty

• UL Certified (US & Canada)

• FCC & RoHS Compliant

• DLC Listed

• 5-Year Limited Warranty

The Contractor Advantage

This linear high bay series is designed to reduce planning errors and future-proof layouts:

• One family covers multiple ceiling heights

• Clean, linear distribution for racked spaces

• Field-adjustable output and color

• Simple upgrades with sensors and emergency options

If you want a scalable linear high-bay solution that stays consistent across a facility, this series is the right spec.
