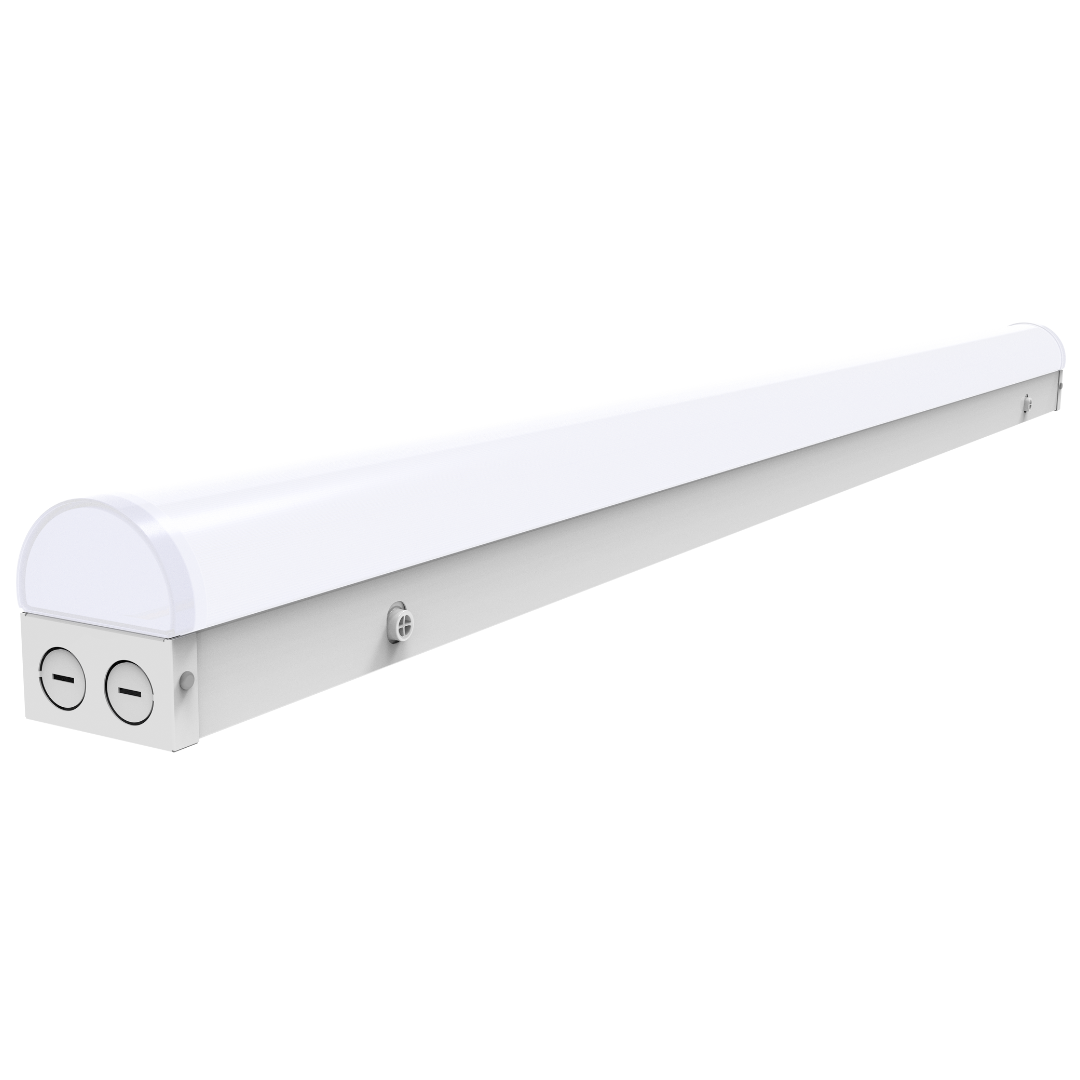

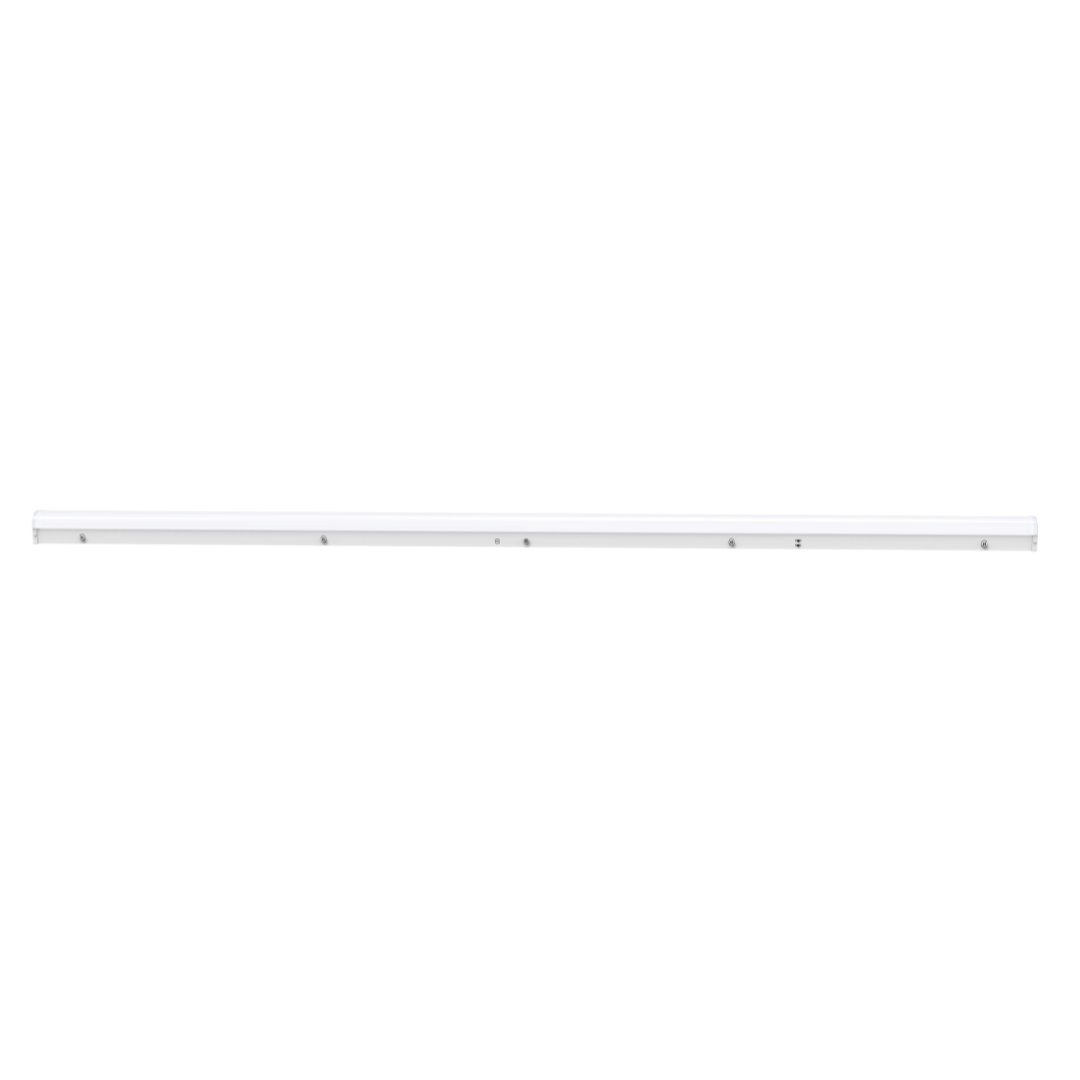

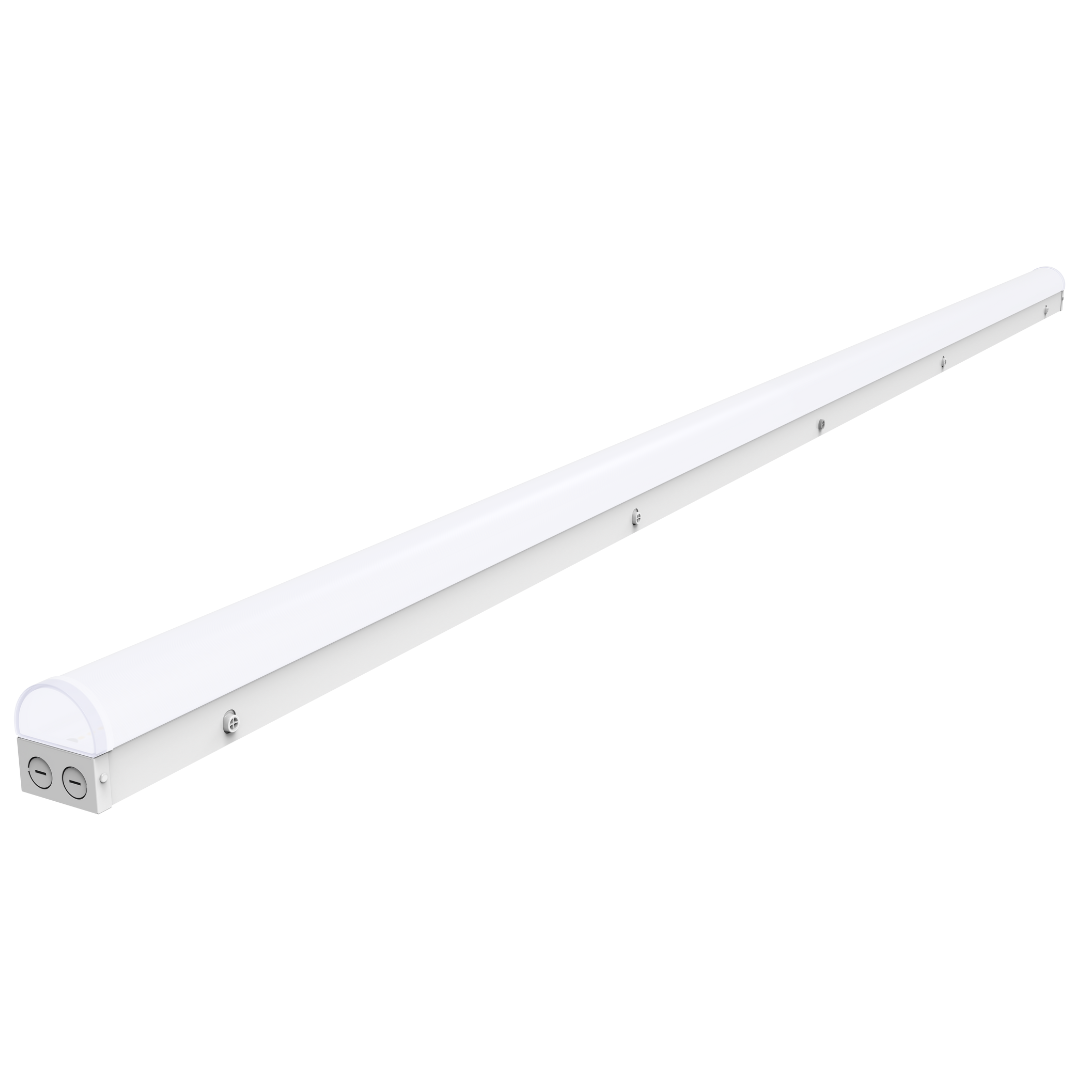

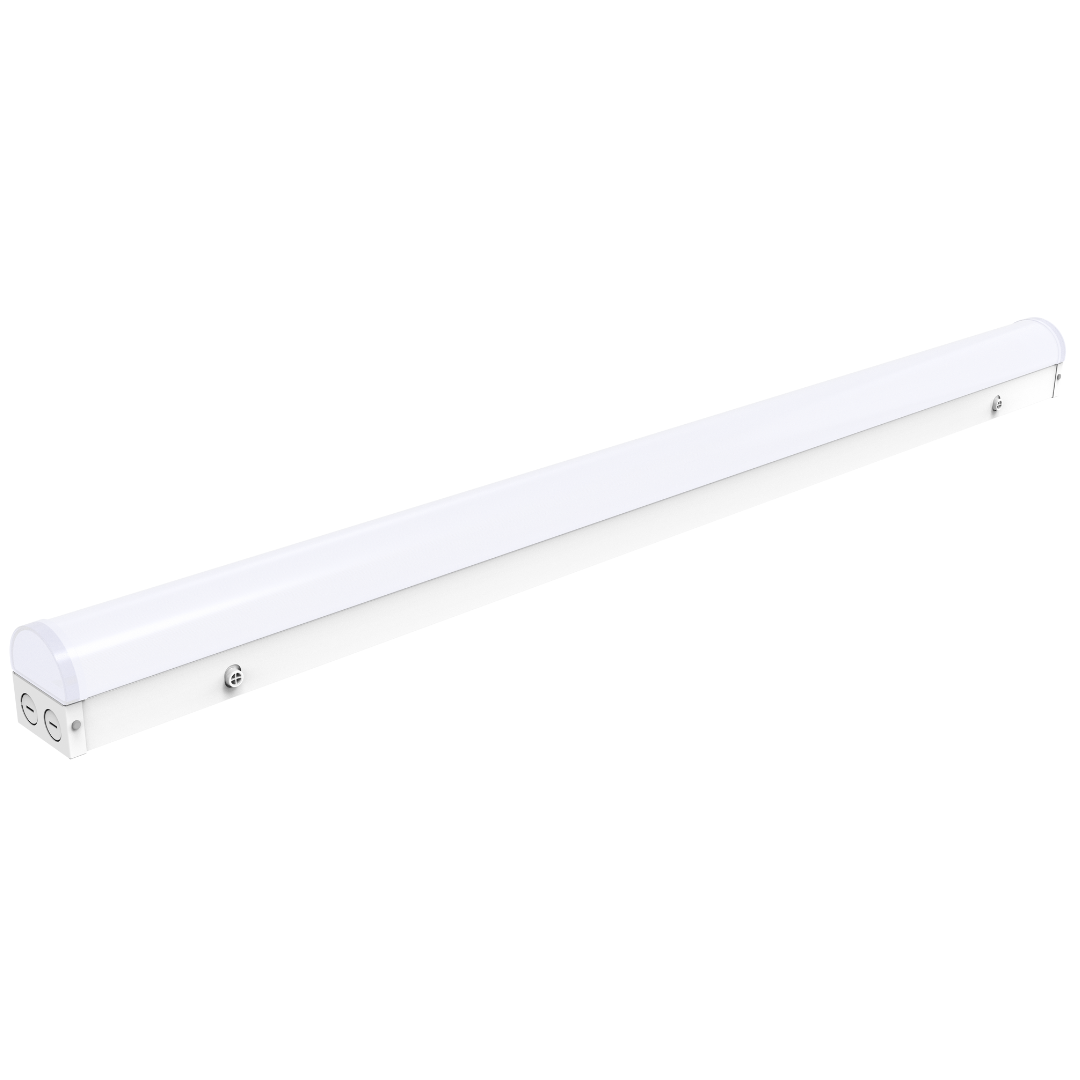

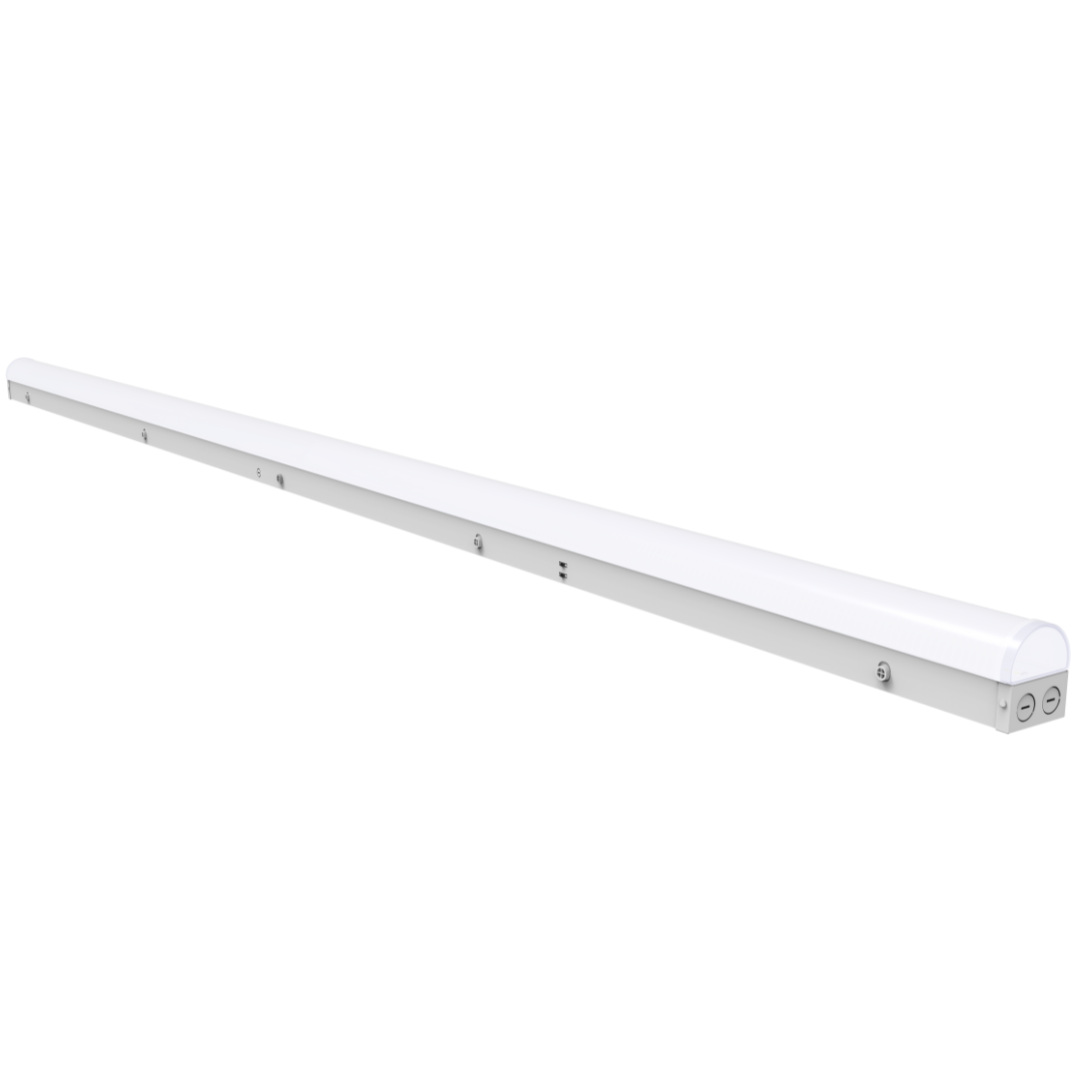

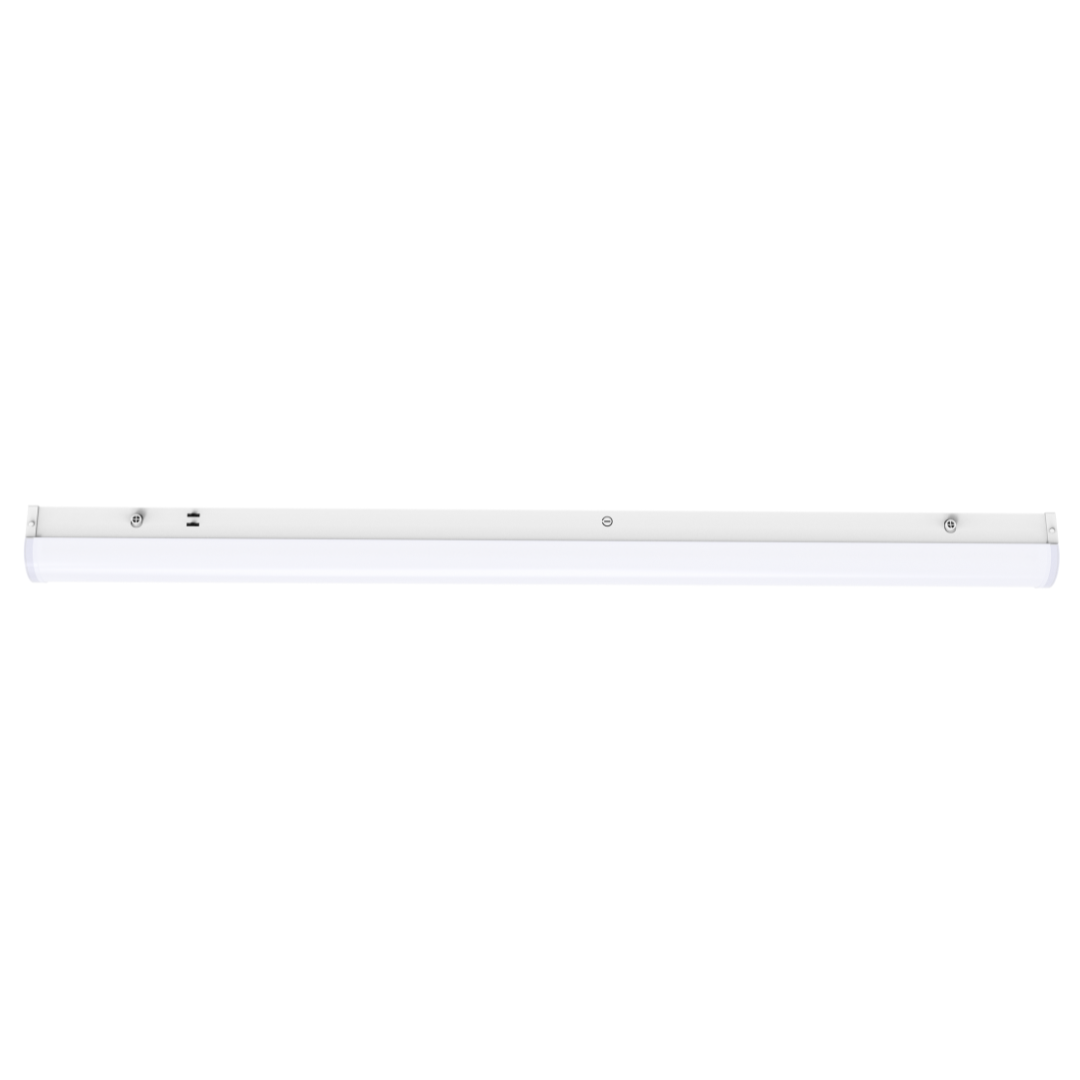

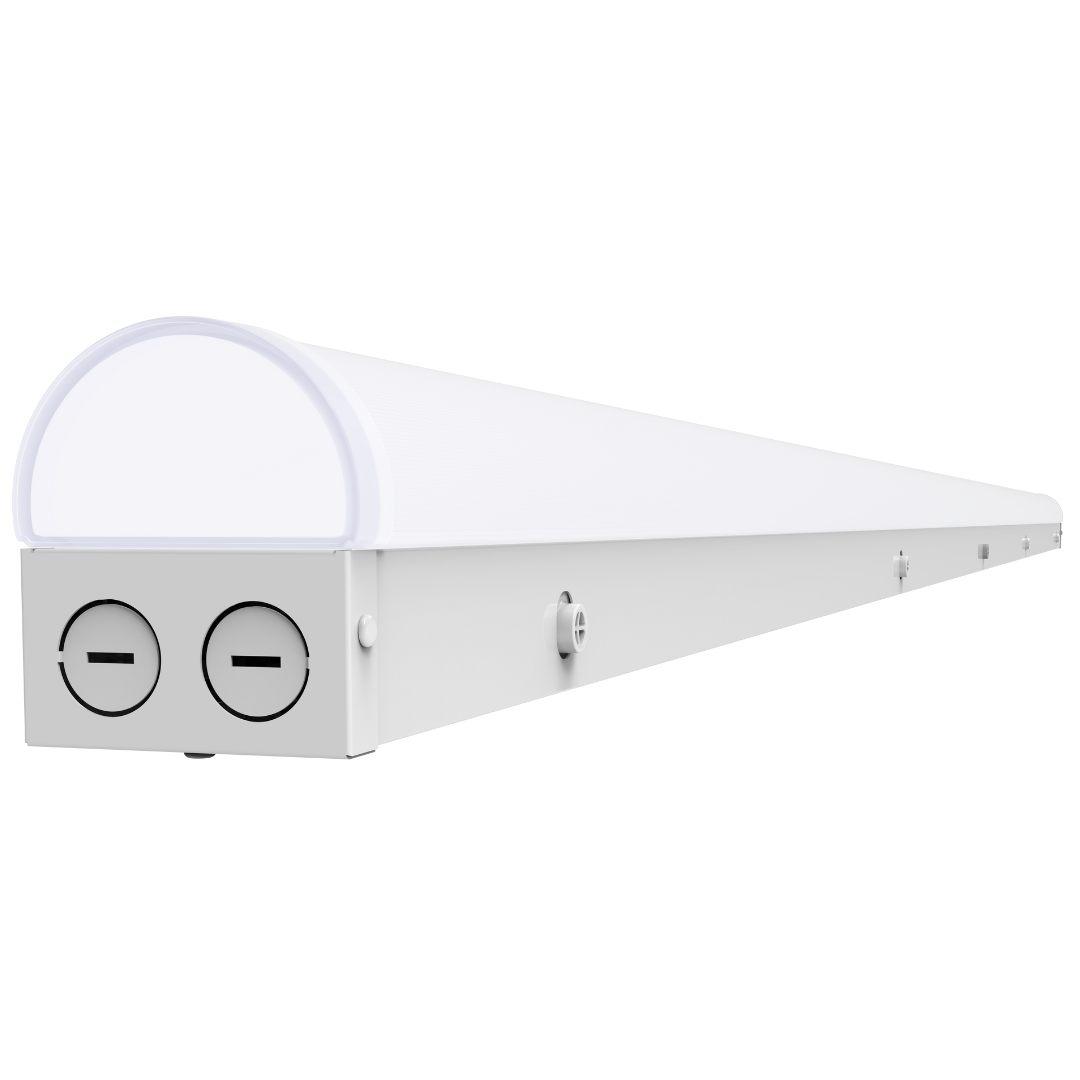

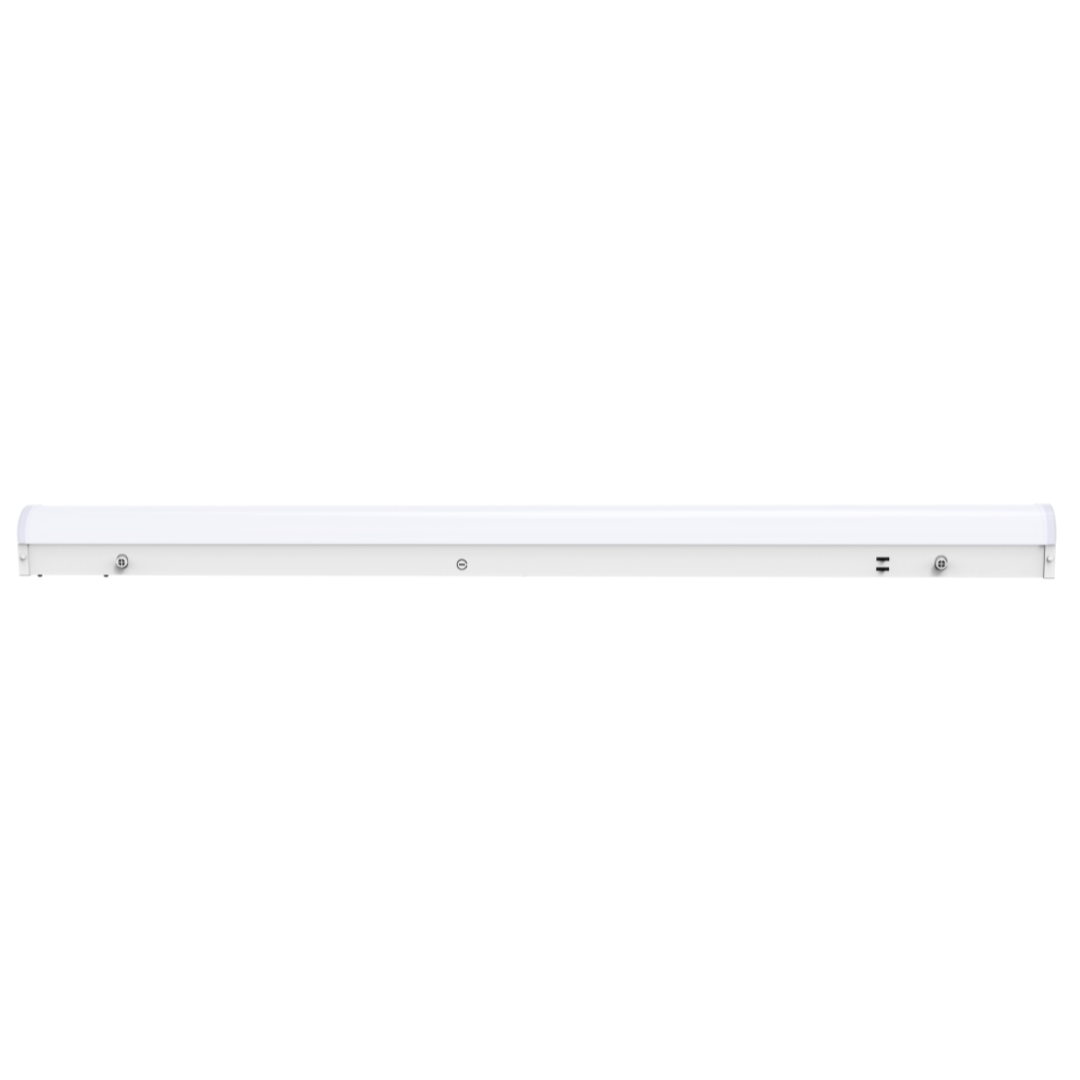

LED Linear Strip Light – Power & CCT Selectable

2 ft / 4 ft / 8 ft • Up to 130 lm/W • 0–10V Dimming • Damp Location Rated

The LED Linear Strip Light – Power & CCT Selectable Series is a modern, high-efficacy replacement for traditional fluorescent strip lighting. Designed with a slim profile, field-adjustable wattage and color temperature, and multiple mounting options, this series gives contractors a flexible, scalable solution for both commercial and industrial interiors.

With sizes ranging from 2 ft to 8 ft and outputs up to 100W, this fixture family allows you to standardize layouts while tuning performance on site.

Why Contractors Choose This Series

• One Series, Multiple Lengths
  Available in 2 ft, 4 ft, and 8 ft to cover everything from small rooms to long runs.

• Field-Selectable Power & CCT
  Multiple wattage and CCT capable—reduces SKUs and protects against spec changes.

• High Efficacy Performance
  Delivers up to 130 lm/W, improving energy efficiency over legacy fluorescent strips.

• Clean, Slim Form Factor
  Low-profile design upgrades aesthetics in finished spaces while staying practical for utility areas.

• Flexible Mounting Options
  Surface mount or suspend with optional accessories—adaptable to site conditions.

Ideal Applications

• Warehouses & distribution centers

• Parking garages

• Utility corridors & service areas

• Retail back-of-house

• Schools & institutional spaces

• Commercial offices & common areas

Anywhere linear, uniform illumination is preferred over point sources.

Performance at a Glance

• Available Lengths: 2 ft / 4 ft / 8 ft

• Selectable Wattage Ranges:

  • 2 ft: 10W, 15W, 20W

  • 4 ft: 30W, 40W, 60W

  • 8 ft: 40W, 60W, 80W, 90W, 100W

• Selectable CCT Options:

  • 2 ft: 3500K / 4000K / 5000K

  • 4 ft: 3500K / 4000K / 5000K / 5700K / 6500K

  • 8 ft: 3500K / 4000K / 5000K / 5700K / 6500K



• Efficacy: Up to 130 lm/W

• CRI: ≥80

• Beam Angle: ~120° wide distribution

• Dimming: 0–10V

• Voltage: 120–277V or 120–347V

• Operating Temperature: -40°F to 113°F

• Lifetime: L70 ≥ 50,000 hours

• Rating: Damp Location

Optics & Light Quality

• Lens Options: Round or flat profile

• Distribution: Wide, even coverage for uniform illumination

• Light Quality: Flicker-free, glare-controlled output suitable for long occupied spaces

Mounting & Installation

• Standard: Surface mount hardware included

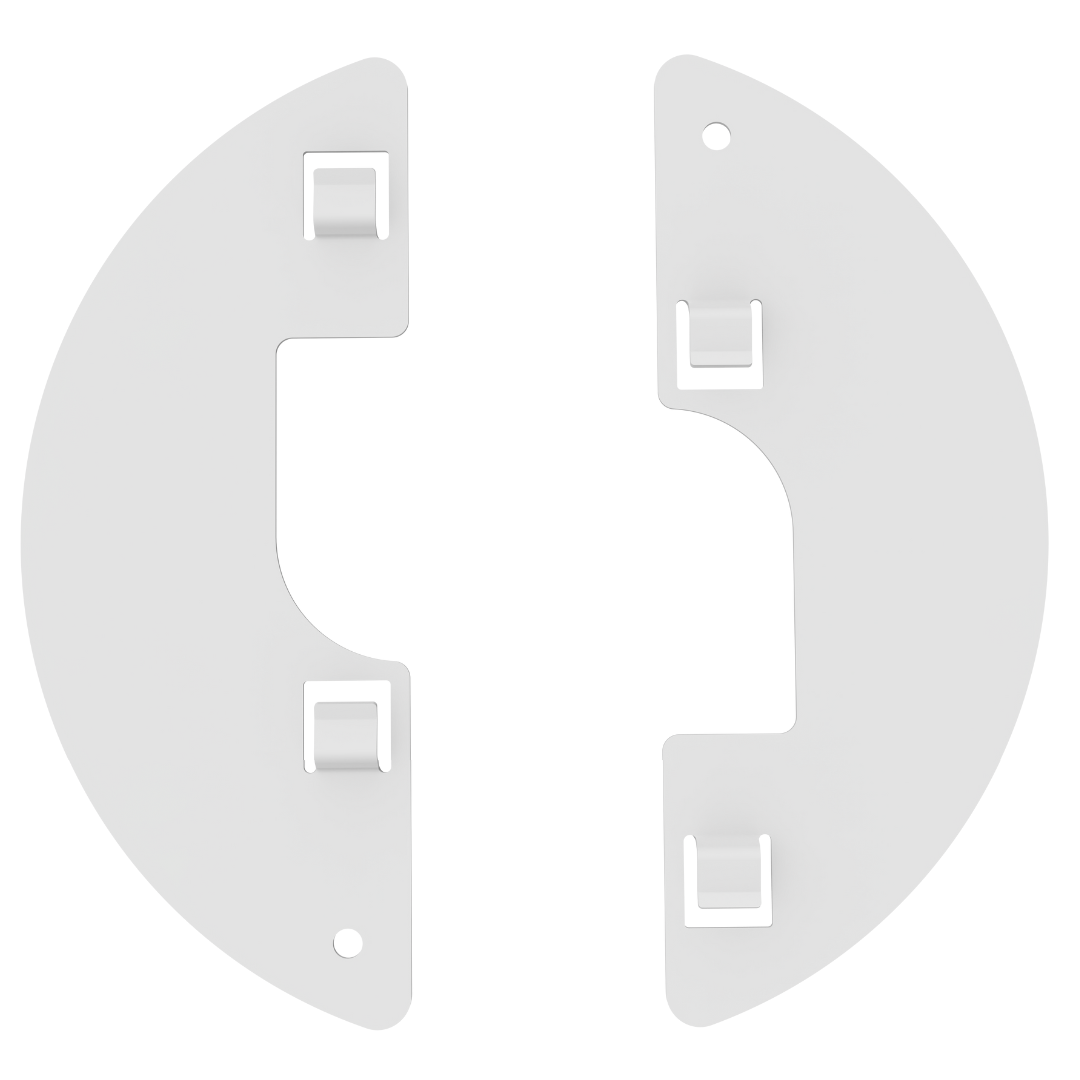

• Optional:

  • Suspended mounting kits

  • Linkable wire harnesses for continuous runs

Designed for fast installs and clean alignment on long rows.

Controls & Emergency Options

• Optional Sensors: PIR, microwave, bi-level, or photocell (model dependent)

• Remote Control Capability

• Optional Emergency Battery Backup

Allows upgrades from simple on/off to advanced energy-saving control strategies.

Built for Long-Term Reliability

• Slim aluminum housing

• Driver efficiency ~90%

• Power Factor: ≥0.9

• Stable operation in demanding commercial environments

Compliance & Warranty

• UL / cUL Listed

• FCC & RoHS Compliant

• 5-Year Limited Warranty

The Contractor Advantage

This linear strip series is designed to replace fluorescents without friction:

• Fewer fixture types to stock

• Adjustable output and color after install

• Clean, modern upgrade without over-spec’ing

• Scales easily across different room sizes

If you’re converting strip lighting and want flexibility without complexity, this series is an easy spec.
