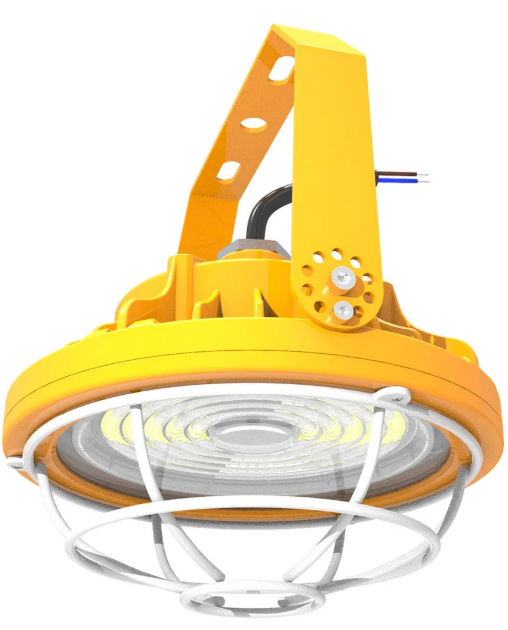

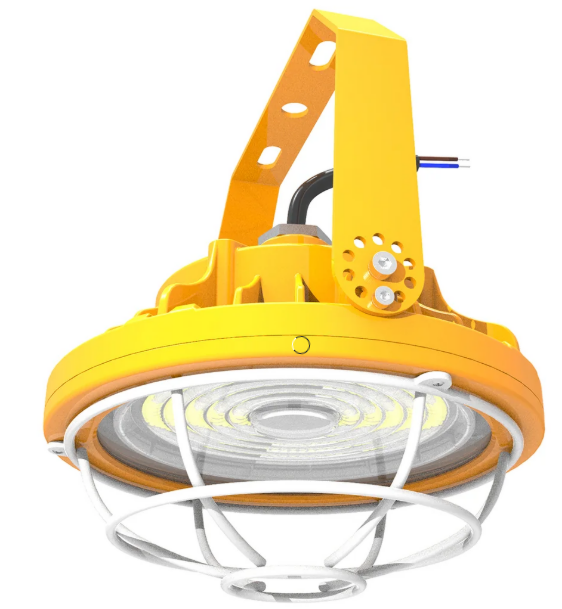

LED Loading Dock Light – Articulating Dual-Arm

4,140 Lumens • 138 lm/W • IP65 • 110° Wide Beam • Plug-In or Hardwire

The LED Loading Dock Light – Articulating Dual-Arm is purpose-built for dock doors, trailer bays, and compact industrial spaces where light must be aimed precisely and hold up to constant use. With a rugged dual-arm reach up to 9 ft, wide uniform beam, and die-cast construction, this fixture improves visibility, safety, and productivity at the dock—without bulky floods or improvised mounts.

Designed for fast installs and daily abuse.

Why Contractors Choose This Fixture

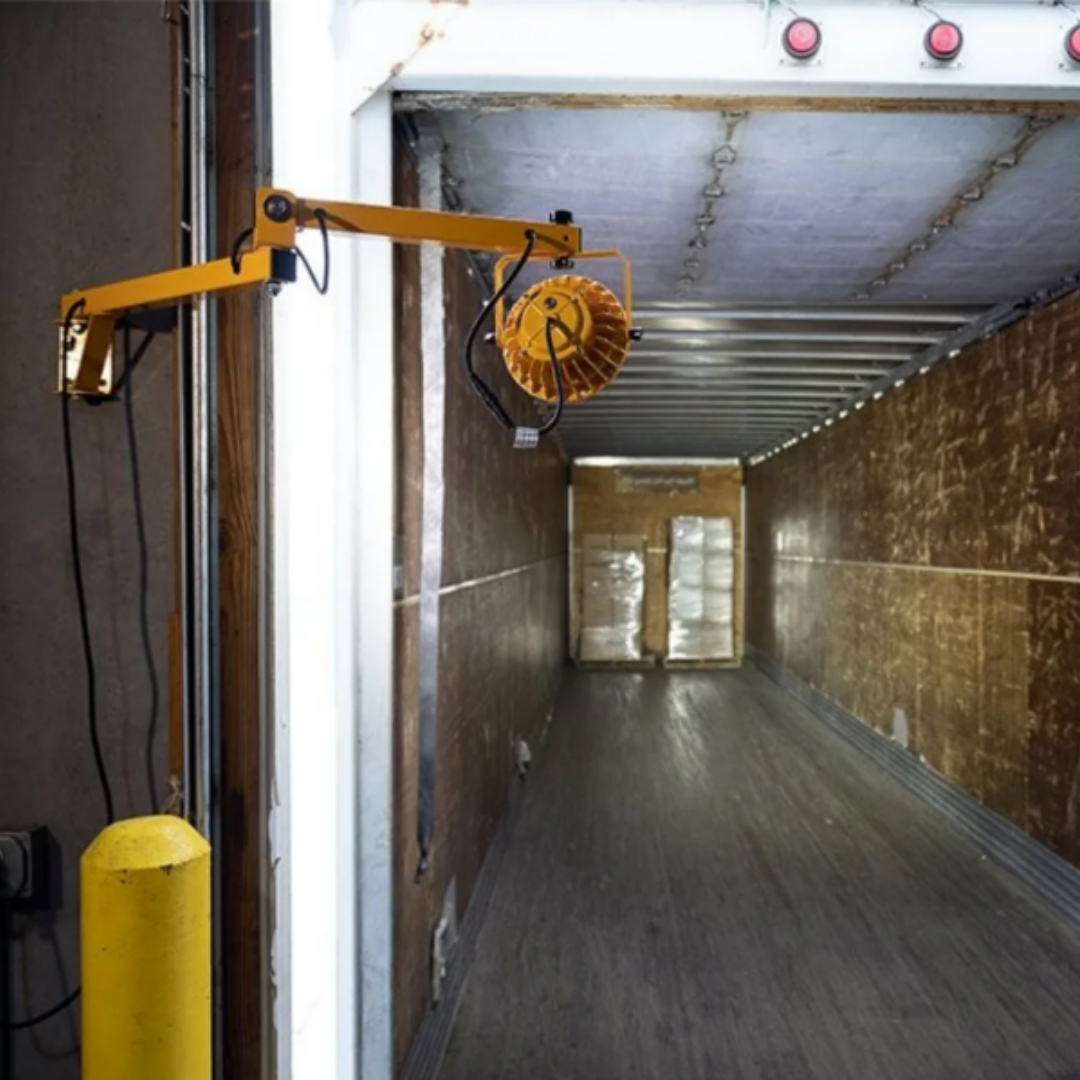

• Purpose-Built for Dock Doors
  Dual articulating arms position light deep into trailers and tight openings—no shadows at the threshold.

• Wide, Even Coverage
  110° beam angle spreads light across the dock floor and trailer interior without hot spots.

• Rugged Industrial Build

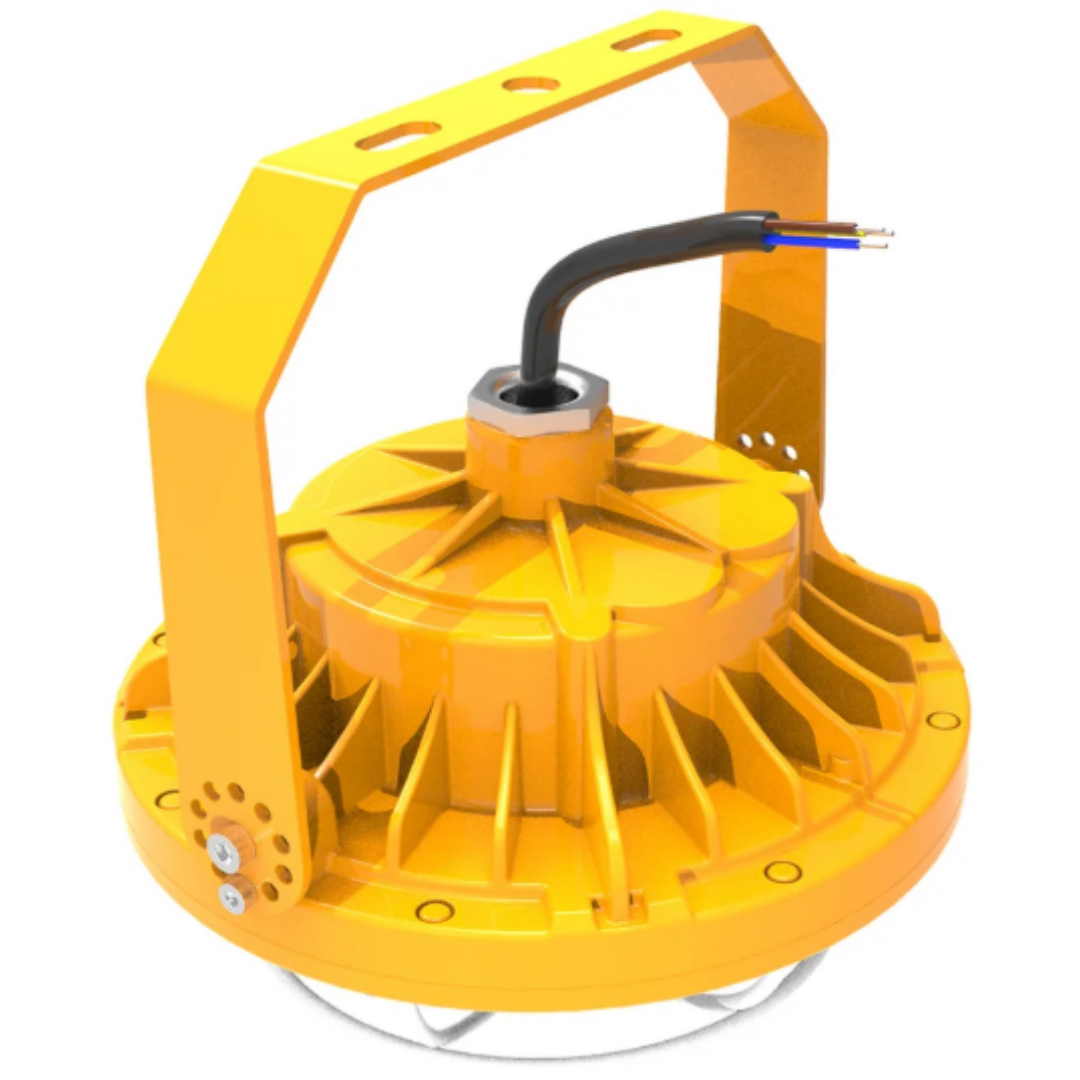

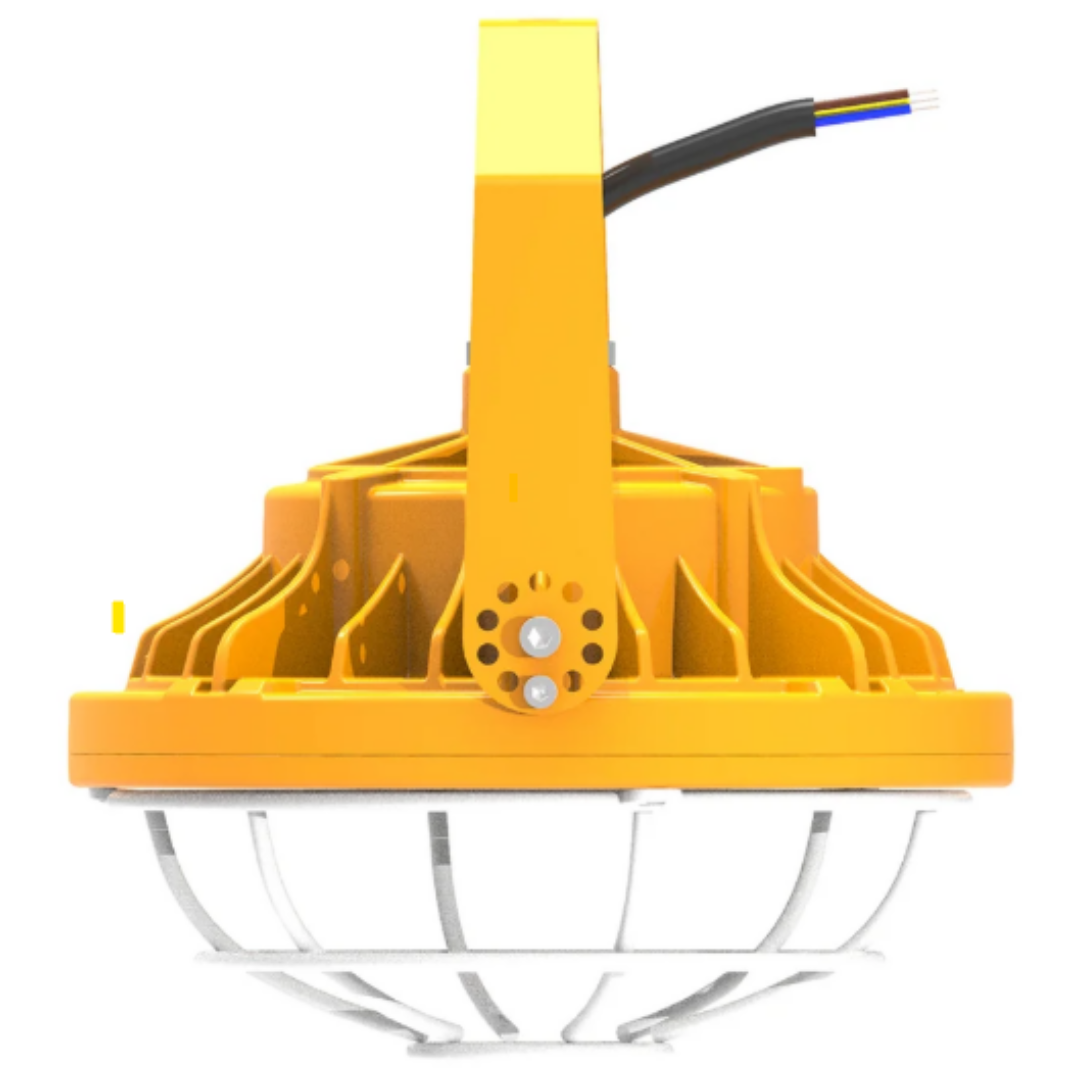

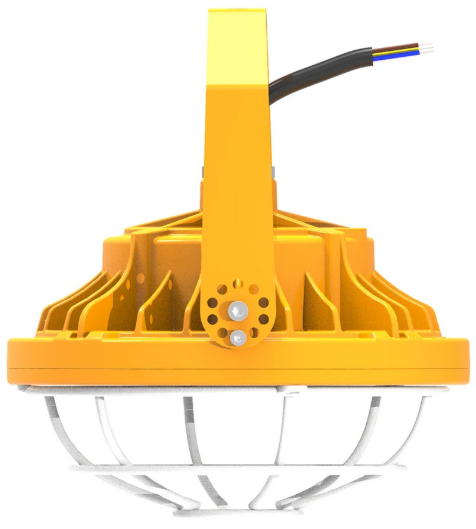

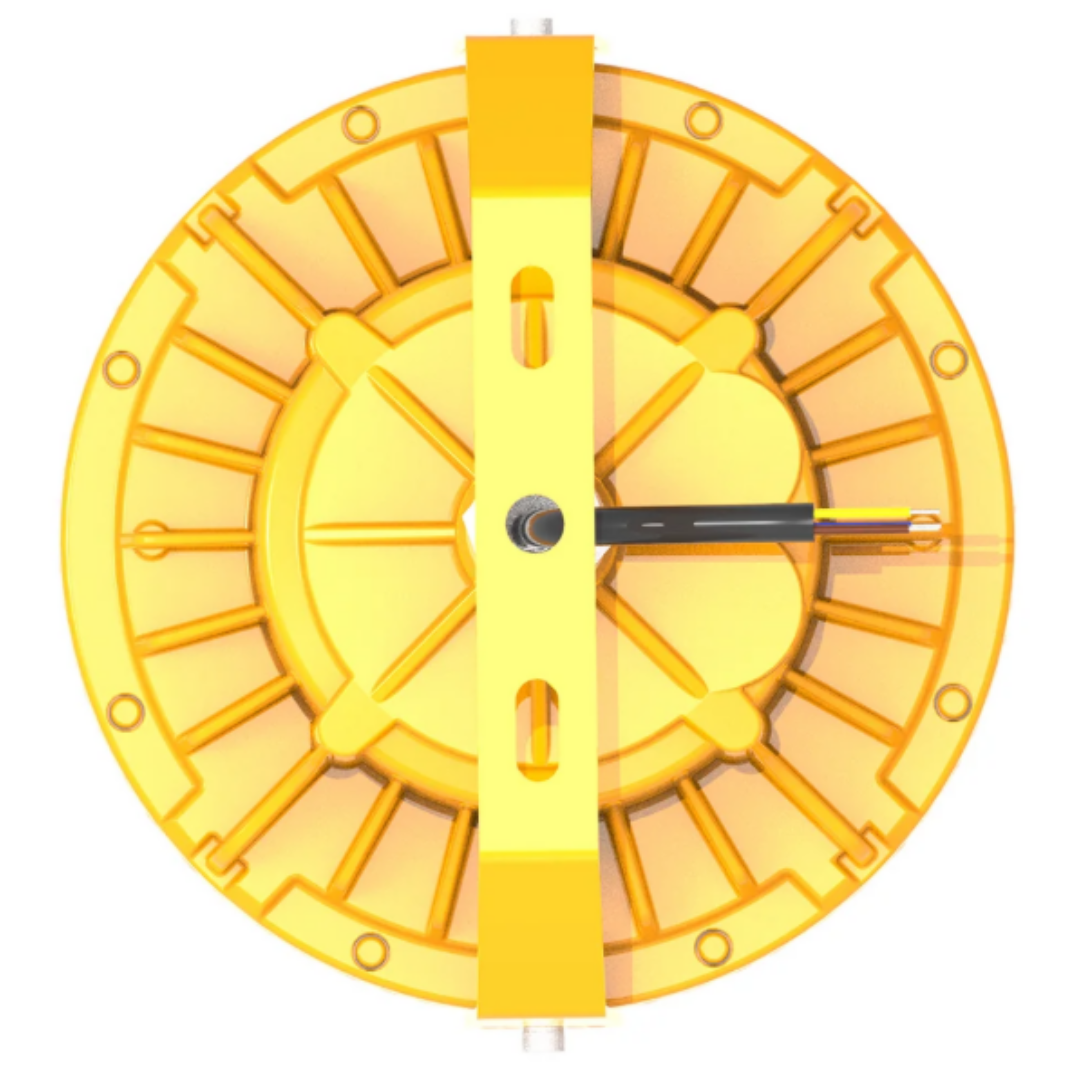

  Heavy die-cast aluminum housing with tempered glass lens resists impacts, vibration, and corrosion.

• Simple Install Options
  Available with plug-in (5-15P) convenience or hardwire to suit site requirements.

• Low Power, High Output
  Delivers 4,140 lumens at 30W—a strong replacement for MH/HPS without heat or warm-up time.

Ideal Applications

• Loading docks & trailer bays

• Warehouse shipping/receiving areas

• Navigation openings

• Storage racks & back-of-house spaces

Anywhere aimable, close-range light improves safety and speed.

Performance at a Glance

• Wattage: 30W

• Delivered Lumens: 4,140 lm

• Efficacy: 138 lm/W

• CCT: 5000K

• CRI: >80

• Beam Angle: 110° (average)

• Voltage: 120–277V AC

• Operating Temp: -40°C to 45°C

• IP Rating: IP65

• Power Factor: >0.9

• Lifespan: L70 ≥ 50,000 hours

• Equivalent: Replaces ~60–300W MH/HPS

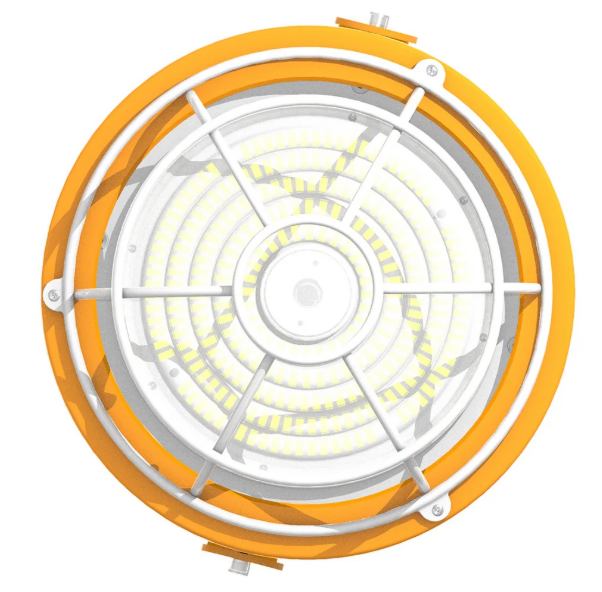

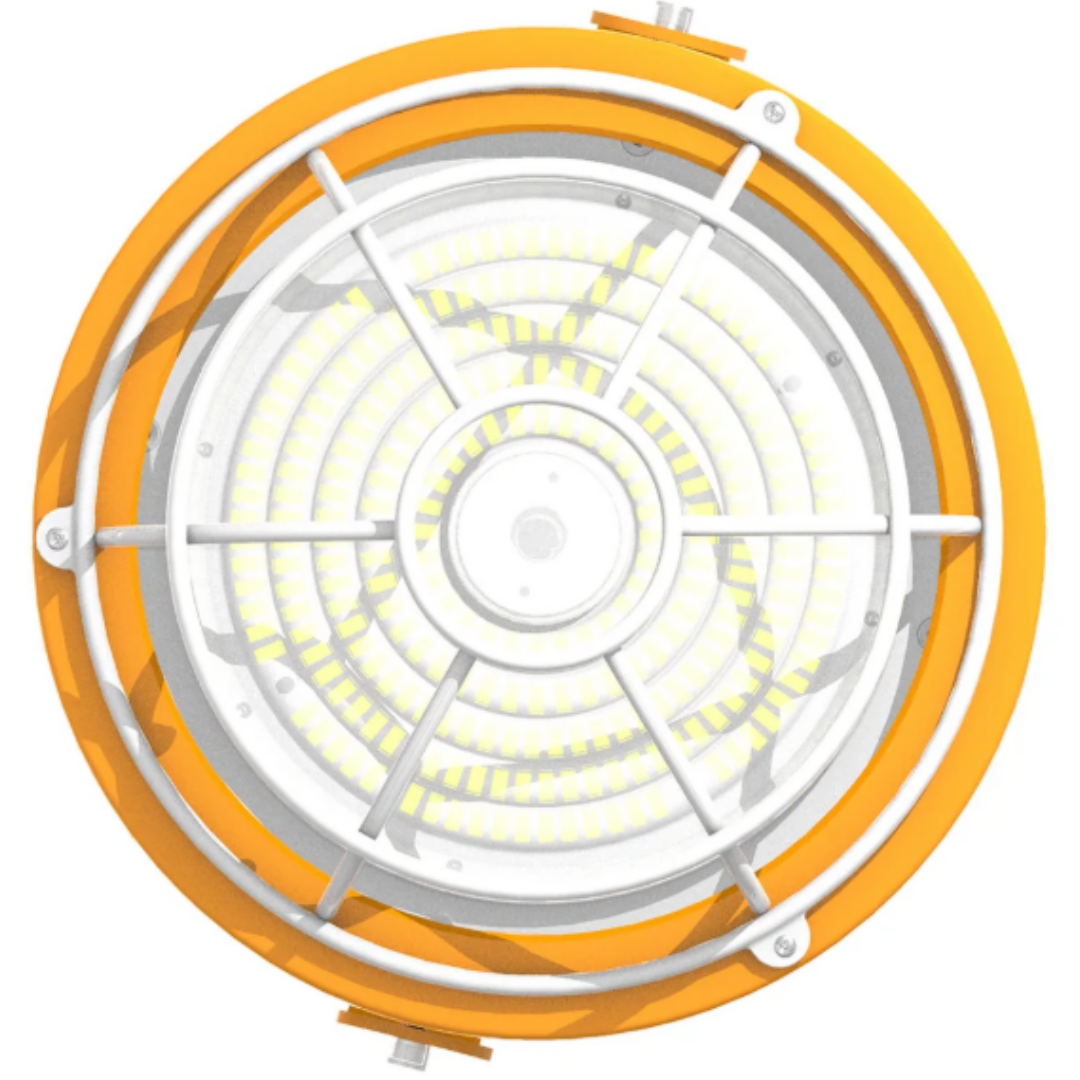

Optics & Light Distribution

• LEDs: Lumileds 2835 chips

• Lens: High-quality tempered glass

• Distribution: Wide flood for uniform illumination

Optimized to reduce glare while lighting both the dock apron and interior.

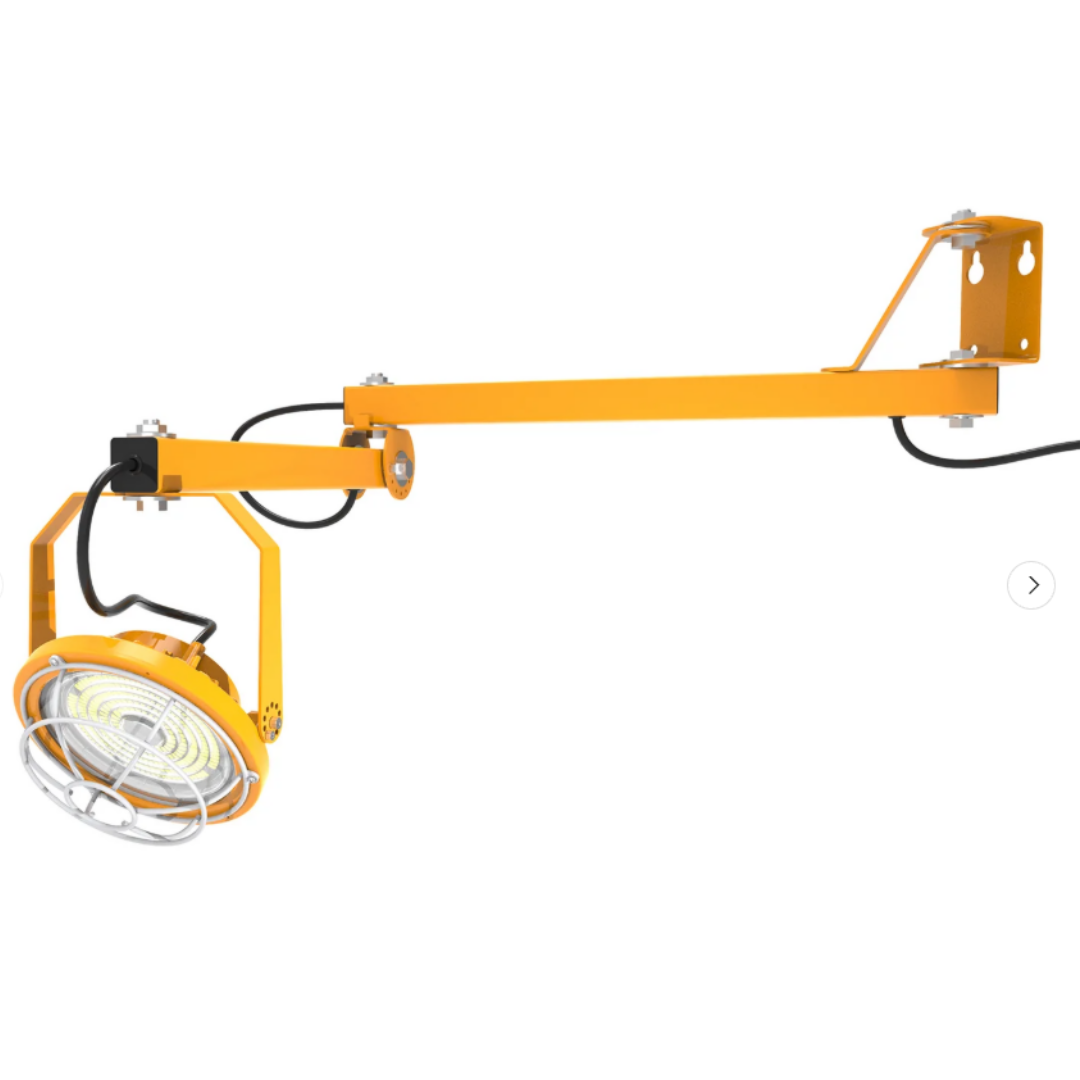

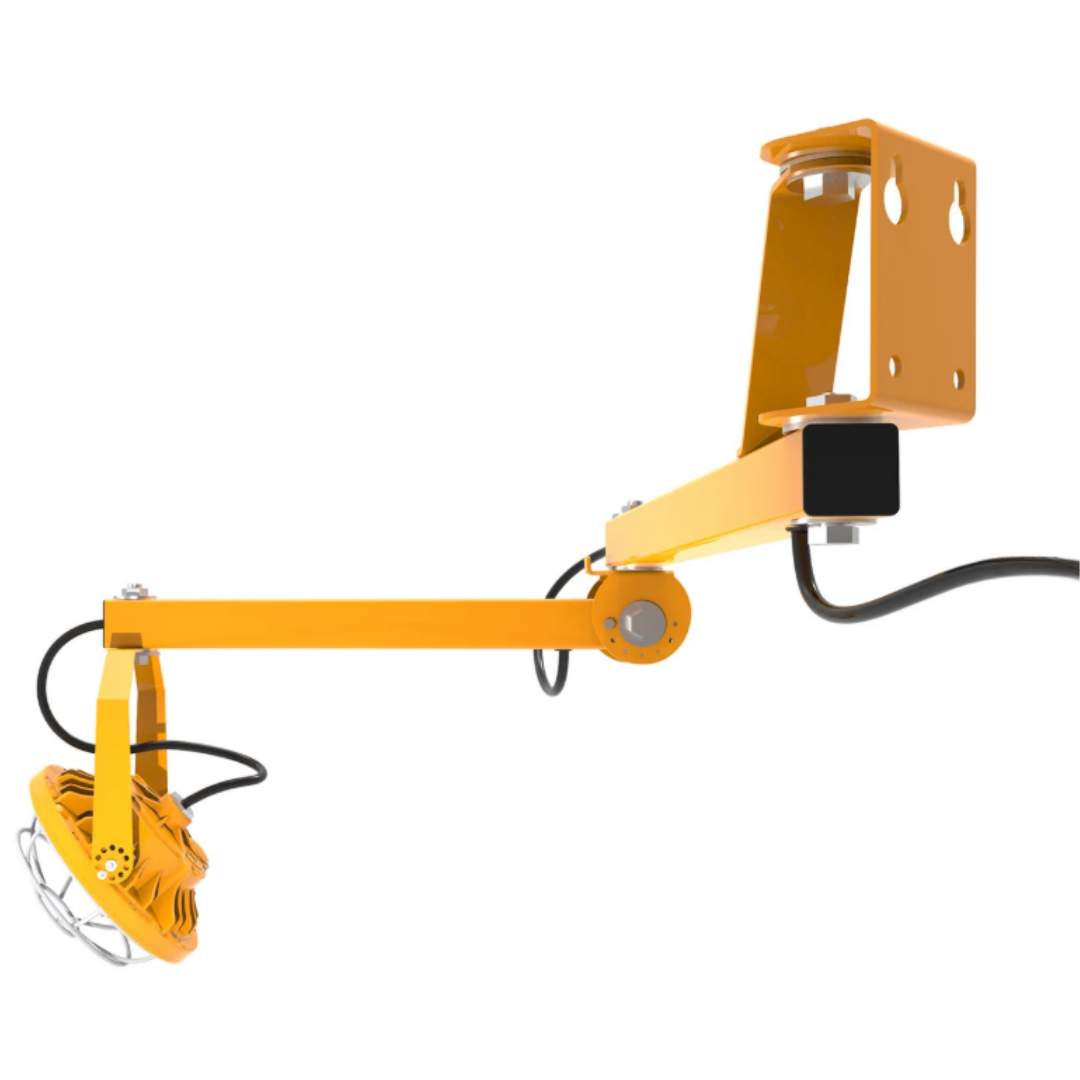

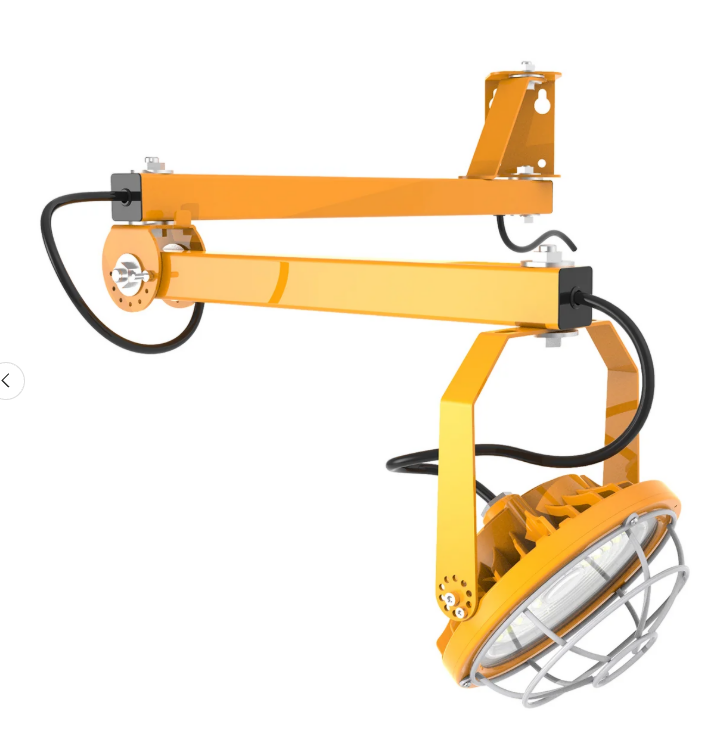

Mounting & Adjustability

• Mounting: Wall-mounted dual-arm bracket

• Reach: Up to 9 ft total extension

• Adjustability: Multi-directional rotation and tilt with locking screws

Aim it once—keep it there.

Installation Notes

• Plug-in models include 5-15P cord (match with 5-15R receptacle)

• Hardwire per local code where required

• Fixture must not be mounted over an outlet box

• Proper grounding required

Designed for quick, repeatable installs in industrial environments.

Compliance & Warranty

• UL Listed Driver

• DLC Listed

• IP65 Rated

• 5-Year Limited Warranty

The Contractor Advantage

This loading dock luminaire solves a real problem:

• Light goes where forklifts and people actually work

• Fewer fixtures vs. wall floods

• Cleaner installs vs. improvised arm solutions

• Proven durability in high-abuse zones

If you’re lighting docks, bays, or tight industrial openings, this is the right tool for the job.
