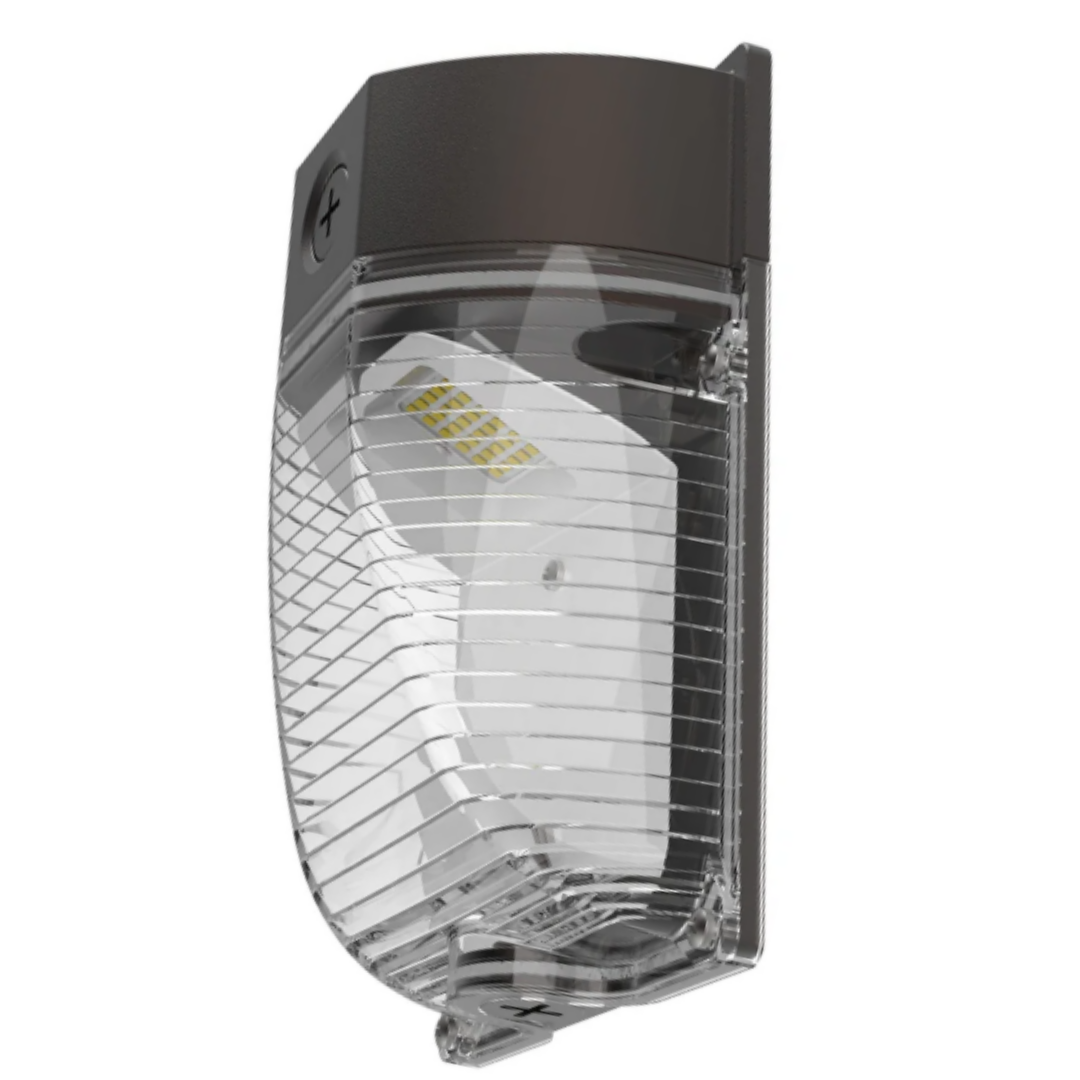

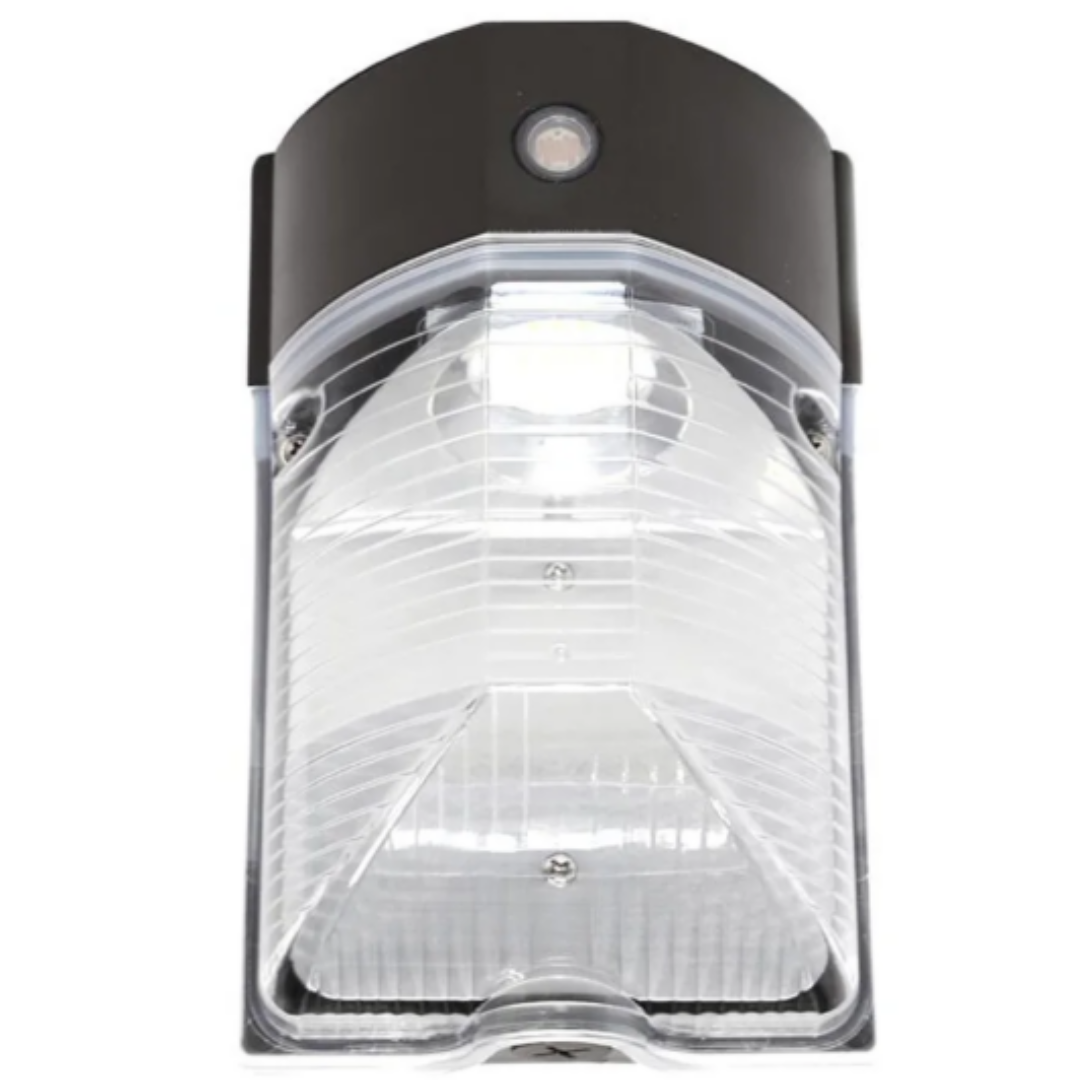

LED Mini Clear Lens Wall Pack – Single Wattage, Selectable CCT, Semi-Cutoff, IP65

⬇️ Download Spec Sheet

LED Mini Wall Pack – Clear Lens, Selectable CCT

This LED Mini Wall Pack is designed for exterior applications where a compact footprint and controlled light output are preferred over full-size wall packs. Its slim, low-profile housing delivers reliable illumination while maintaining a clean appearance on building exteriors, making it well suited for spaces where aesthetics, spacing, or scale matter.

With a fixed 26W output and field-selectable CCT, this fixture allows installers to adjust color temperature on site to match surrounding lighting conditions without swapping fixtures. A built-in dusk-to-dawn photocell comes standard, reducing the need for additional controls and simplifying installation.

Constructed with a die-cast aluminum housing and IP65-rated optics, this mini wall pack is built to perform in demanding outdoor environments. The wide distribution provides effective coverage for walkways, building perimeters, and service areas without excessive glare or light spill.

Why Contractors Choose This Mini Wall Pack

Compact, Slim Profile
Ideal for locations where full-size wall packs are unnecessary or visually intrusive.

Selectable CCT
One fixture adapts to multiple site conditions, reducing SKUs and avoiding reorders.

Built-In Photocell
Standard dusk-to-dawn operation simplifies controls and saves install time.

Consistent Output
Fixed wattage delivers predictable performance for straightforward layouts.

Rugged Outdoor Construction
Designed for long service life in wet and exposed environments.

Easy Wall-Mount Installation
Compact footprint supports clean retrofits and new construction alike.

Output Configuration

Fixed Output:
26W output provides dependable illumination for small-scale exterior applications where higher wattage is not required.

Key Features

Optical & Performance

Wide distribution for even coverage
Reduced glare for pedestrian-friendly spaces
Efficient LED system for consistent light output

Electrical

120–277V input
0–10V continuous dimming
Integrated dusk-to-dawn photocell

Color Temperature (Field Selectable)

3000K – Warm White
4000K – Neutral White
5000K – Cool White

Construction & Ratings

Die-cast aluminum housing with durable outdoor finish
Impact-resistant, UV-stabilized lens
Wet Location Rated (IP65)
Operating temperature: -4°F to 113°F
5-Year Limited Warranty

Ideal Applications

Building perimeters
Walkways and pathways
Service doors and access points
Retail and commercial exteriors
Multifamily corridors
Sites requiring compact, unobtrusive fixtures
