LED Mini Frosted Lens Wall Pack – Selectable Wattage & CCT, Semi-Cutoff, IP65

⬇️Spec Sheet Coming Soon

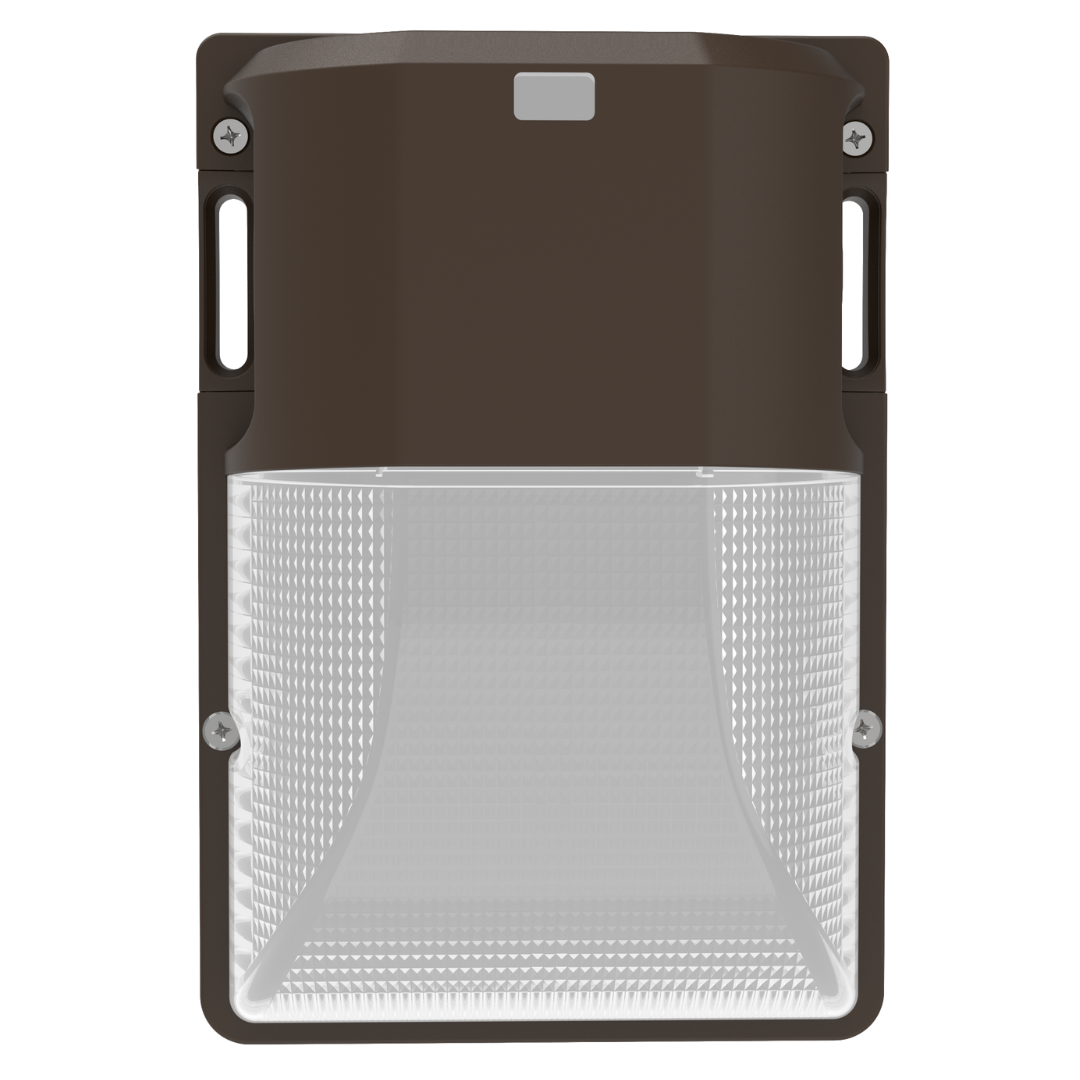

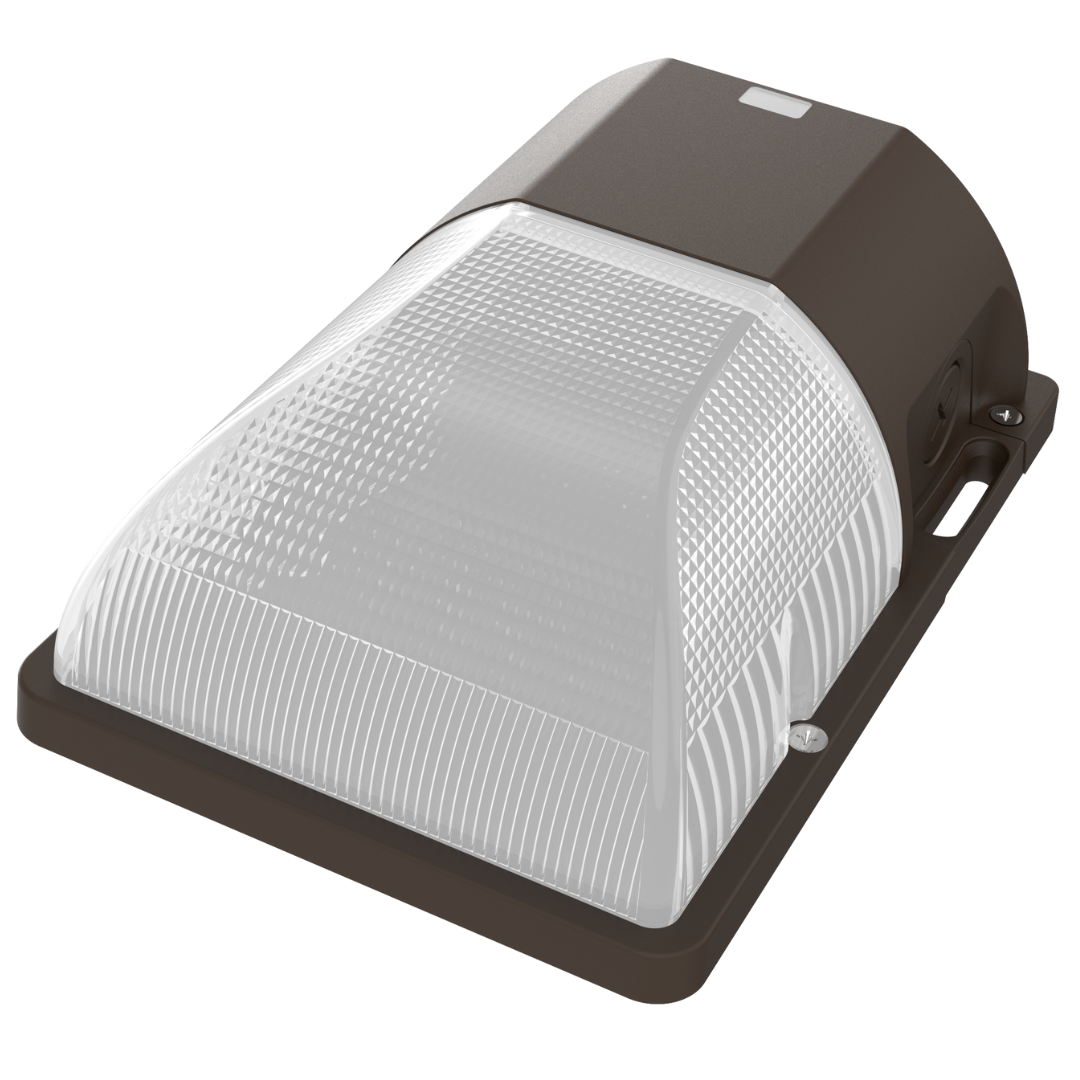

LED Mini Wall Pack – Frosted Lens, Selectable Wattage

A compact architectural LED wall pack designed for clean wall-mounted illumination on low-rise commercial buildings. Field-selectable wattage and CCT, integrated dusk-to-dawn photocell, and a semi-cutoff distribution make it ideal for walkways, building perimeters, and façade lighting.

Key Features

• Selectable Wattage: 18W / 25W / 30W field selectable

• Selectable CCT: 3000K / 4000K / 5000K

• Integrated Photocell: Built-in dusk-to-dawn operation (standard)

• Semi-Cutoff Distribution: Controls glare while maintaining wide forward coverage

• Architectural Form Factor: Compact profile for visually clean installs

• 0–10V Dimming Ready

• Wide Voltage Input: 120–277V standard (120–347V available by configuration)

• IP65 Rated: Wet-location rated for exterior commercial use

• Die-Cast Aluminum Housing: Corrosion-resistant with anti-UV powder coating

• 5-Year Limited Warranty

Applications

Designed for functional and architectural lighting on low-rise commercial and public spaces, including:

• Building perimeters

• Walkways & pathways

• Storefront exteriors

• Apartment & multifamily corridors

• Schools, offices, and municipal buildings

• Accent façade lighting where clean appearance matters

Performance Overview

• Efficacy: Up to 120 lm/W

• CRI: ≥70

• Power Factor: ≥0.95

• L70 Lifetime: 50,000+ hours

• Operating Temp: -40°F to 113°F

• Distribution: Semi-cutoff, wide beam (~161° average)

This fixture balances usable light spread and glare control, making it easier to space consistently without overpowering the wall surface.

Construction & Installation

• Integrated die-cast aluminum housing for thermal management and durability

• Compact footprint ideal for retrofit or new construction

• Supplied with pre-wired cable for faster installs

• Optional motion sensor available (model-dependent)

Contractor Notes

• One SKU covers three wattages + three CCTs, reducing truck stock

• Built-in photocell eliminates external control accessories

• Architectural appearance helps win spec approvals over standard wall packs

• Suitable for energy-code compliant exterior lighting packages

Technical Summary

• Wattage: 18W / 25W / 30W (Selectable)

• CCT: 3000K / 4000K / 5000K

• Voltage: 120–277V (120–347V optional)

• Dimming: 0–10V

• Rating: Wet Location / IP65

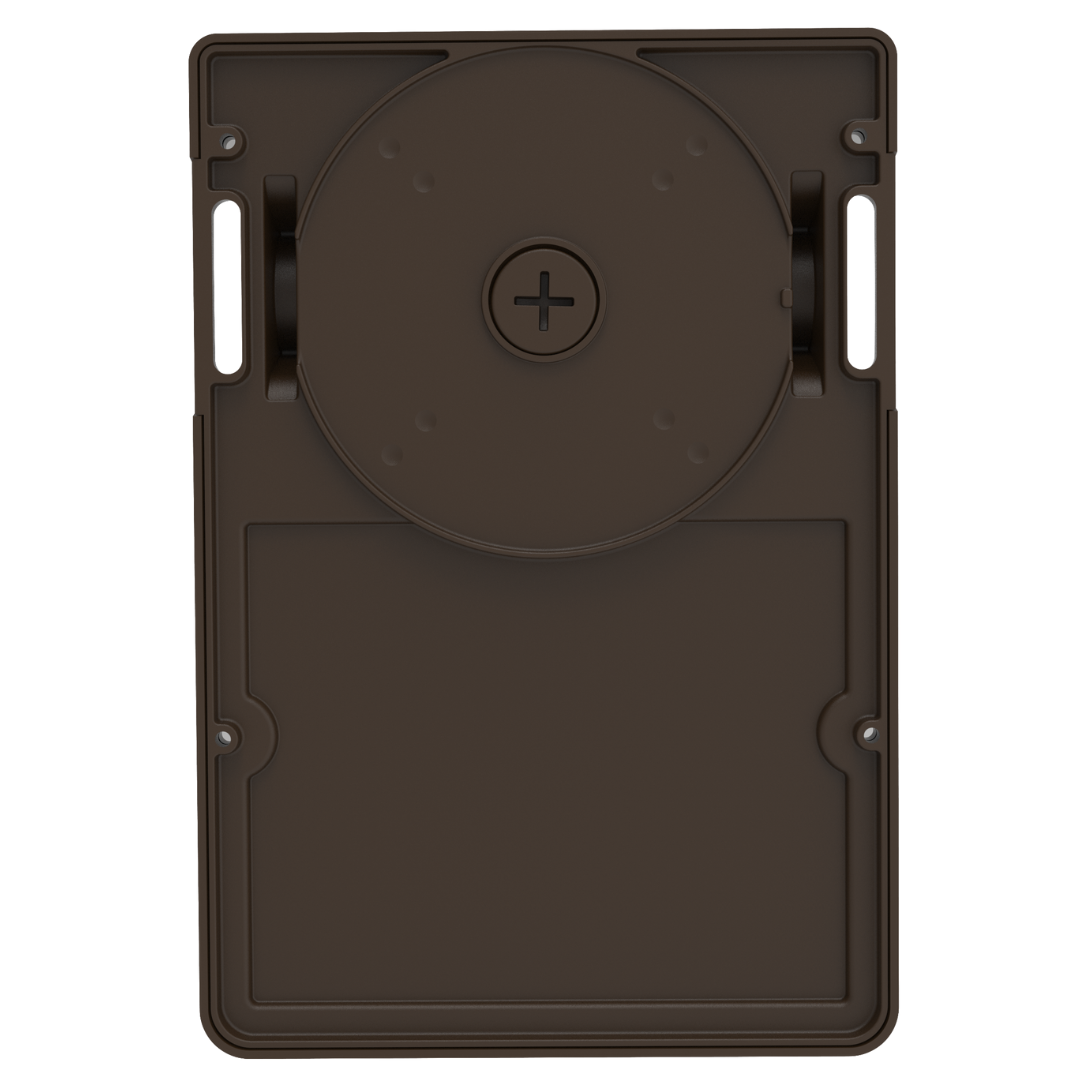

• Mounting: Wall mount

• Warranty: 5 Years
