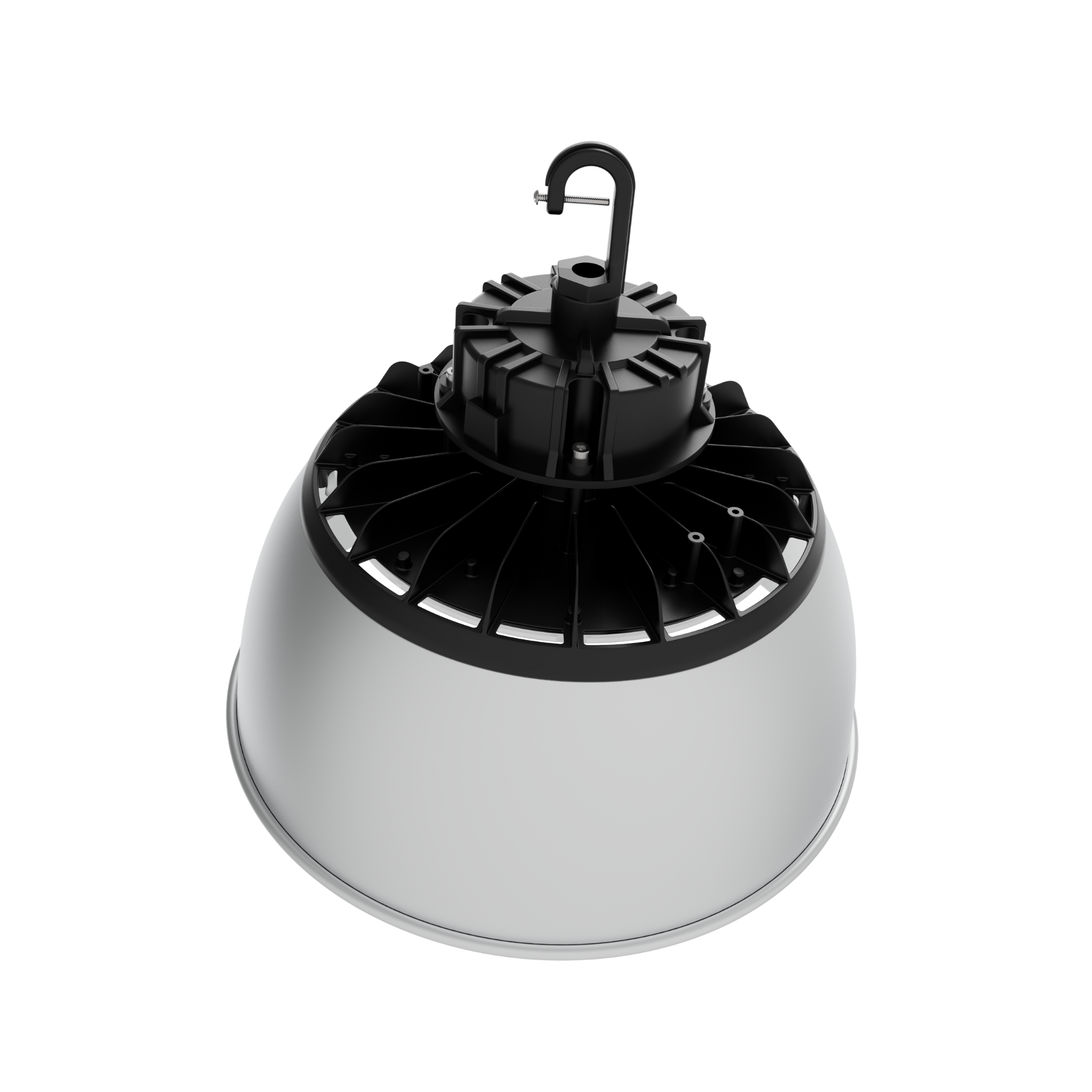

LED Round High Bay – 3-Wattage & 3-CCT Tunable

15,000–35,000 Lumens • 150 lm/W • DLC Premium (Pending) • Wet Location Rated

The LED Round High Bay – 3-Wattage & 3-CCT Tunable Series is engineered for high-ceiling industrial and commercial spaces where output, efficiency, and control flexibility are critical. With field-selectable wattage, selectable CCT, and a broad ecosystem of sensors, controls, and emergency options, this fixture adapts to changing layouts and compliance needs—without re-spec’ing.

Designed to perform reliably above 25 feet in warehouses, gyms, manufacturing floors, and covered decks.

Why Contractors Choose This Fixture

• One Fixture, Multiple Outputs
  Two tunable platforms reduce SKUs and change orders:

  • 150W Max: 100W / 120W / 150W

  • 240W Max: 150W / 200W / 240W

• 3-CCT Tunable on the Fixture
  Select 3500K / 4000K / 5000K to balance visibility, comfort, and task requirements.

• High-Efficiency Performance
  Up to 150 lm/W helps meet energy targets and rebate programs while delivering strong illumination.

• Rugged, Wet-Rated Construction
  Heavy-duty die-cast aluminum housing with anti-UV polyester coating resists corrosion, moisture, and discoloration.

• Smart-Ready & Scalable Controls
  PIR or microwave sensors with daylight priority, remote or Bluetooth app control, and optional emergency backup.

Ideal Applications

• Warehouses & distribution centers

• Manufacturing & packaging facilities

• Gymnasiums & sports complexes

• High-bay aisles & storage

• Covered decks and industrial yards

Anywhere you need reliable high output with flexibility for future changes.

Performance at a Glance

• Selectable Wattage:

  • 150W Max: 100W / 120W / 150W

  • 240W Max: 150W / 200W / 240W

• Delivered Lumens: 15,000 – 35,000

• Efficacy: Up to 150 lm/W

• Selectable CCT: 3500K / 4000K / 5000K

• CRI: >70

• Dimming: 0–10V continuous

• Voltage: 120–277V or 120–347V

• Operating Temp: -40°F to 113°F

• L70 Lifetime: 50,000 hours

• Rating: Wet Location

Optical & Glare Control Options

• Standard Lens: Anti-UV clear ridged polycarbonate, 90° beam

• Optional Reflectors: 90° aluminum or prismatic polycarbonate

• Optional Glare Control: Polycarbonate drop lens

Dial in distribution and comfort based on mounting height and aisle layout.

Mounting & Installation

• Standard: Steel hook mount with integrated 6-ft cord

• Optional: Adjustable yoke mount for surface installations

Streamlined installs for both pendant and surface-mount scenarios.

Controls, Sensors & Emergency Options

• Fixture-mounted PIR or microwave sensors with daylight priority

• Remote control or Bluetooth app configuration

• 480V → 277V step-down autotransformer option

• 90-minute emergency backup driver (30W) available

Scale control sophistication as the job demands.

Built for Long-Term Reliability

• Die-cast aluminum housing

• Anti-UV polyester coating

• Power Factor: >0.9

• THD: ≤10%

• Industrial-grade components for continuous operation

Compliance & Warranty

• DLC Premium (Pending)

• UL Certified (US & Canada)

• FCC & RoHS Compliant

• Wet Location Rated

• 5-Year Limited Warranty

The Contractor Advantage

This round high bay is designed to reduce risk and rework:

• One SKU adapts to changing light levels and color needs

• Flexible controls for code compliance and energy savings

• Simple upgrades with sensors and emergency options

If you want a future-proof high bay that installs clean and performs consistently, this is the fixture to spec.
