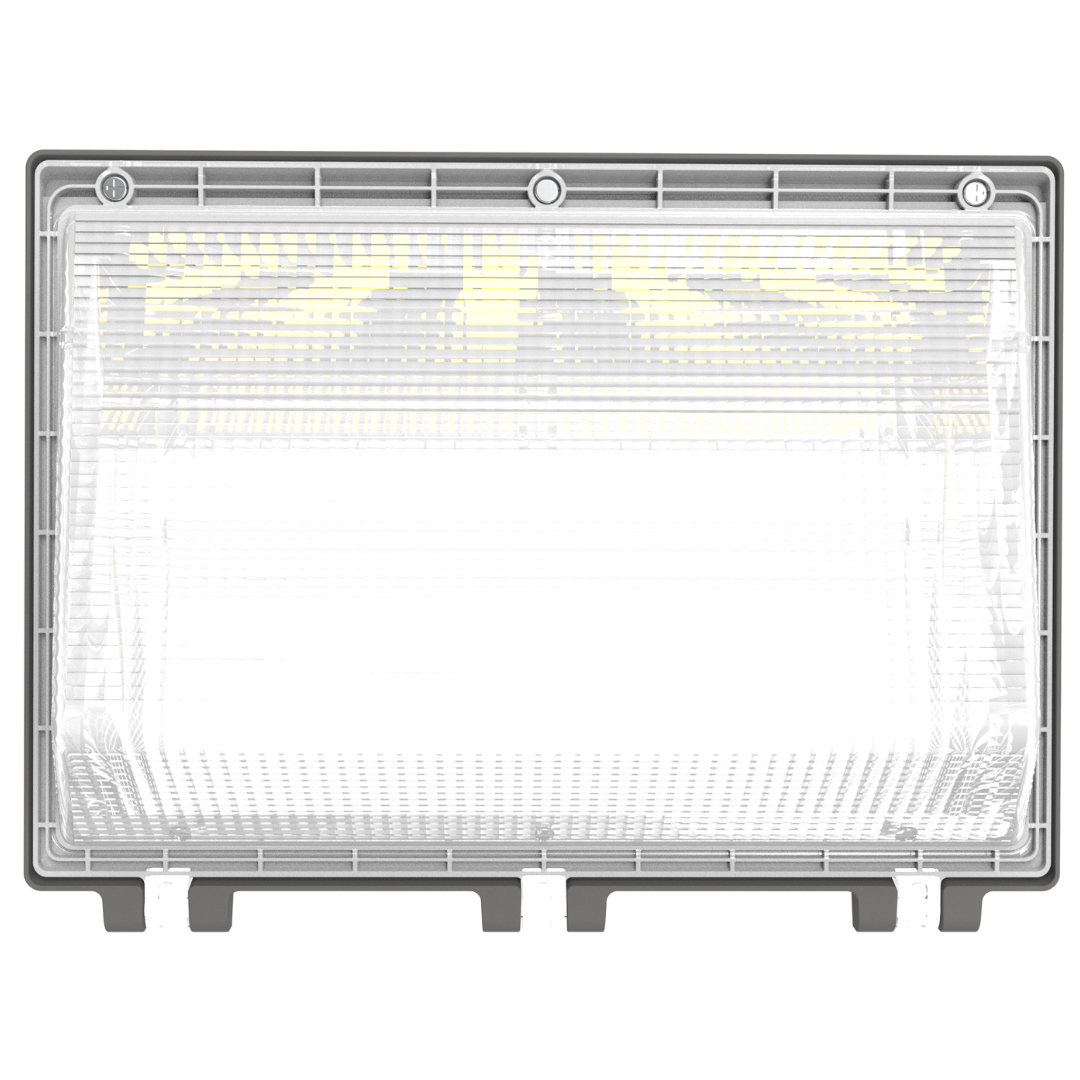

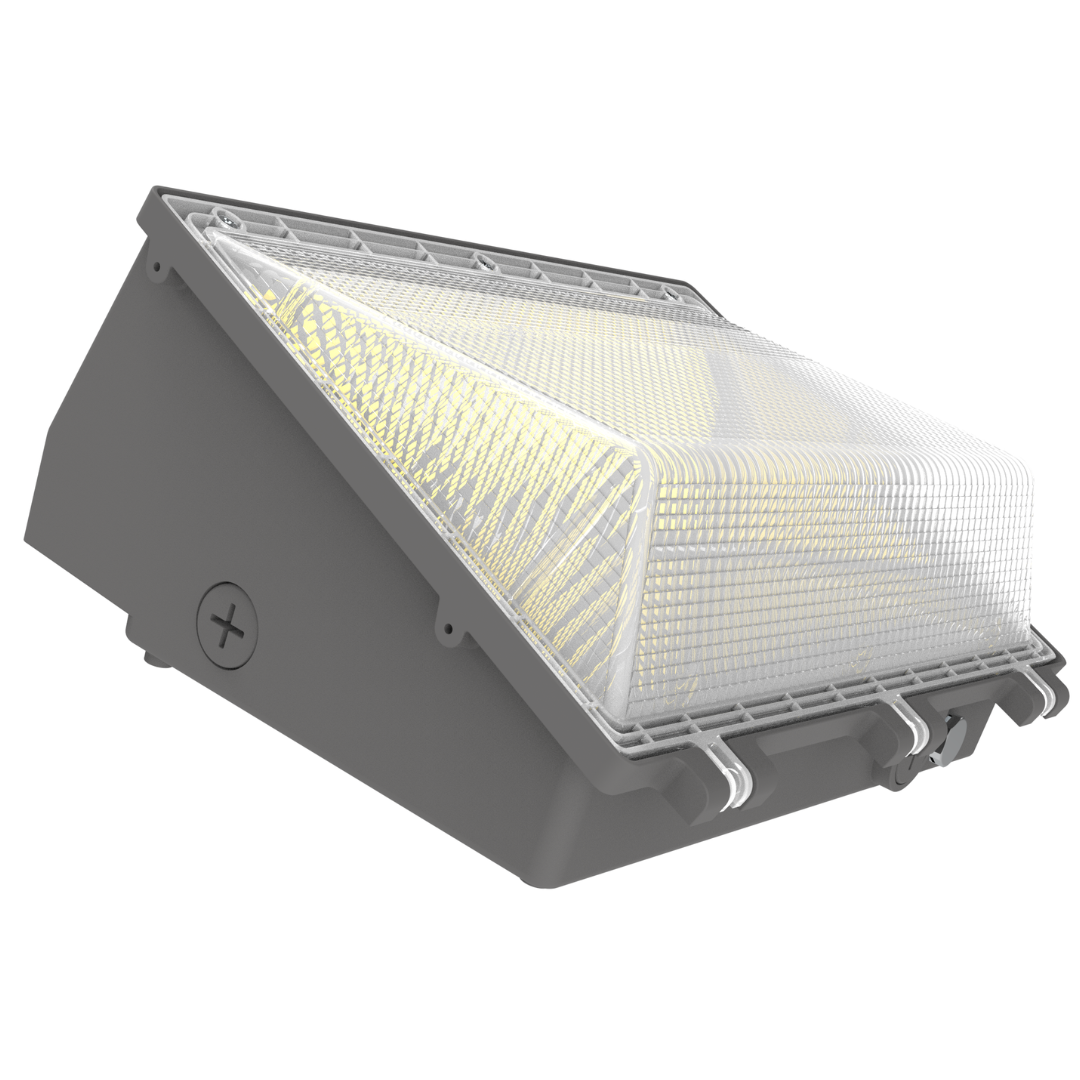

LED Non-Cutoff Wall Pack – Forward Throw, Selectable Wattage & CCT, DLC Premium

⬇️ Download Spec Sheet

Product Description

The No-Cutoff LED Wall Pack is designed for projects that require maximum forward light output without beam restriction. This fixture throws light both outward and downward, making it the go-to choice for perimeter lighting where visibility and coverage matter more than glare control.

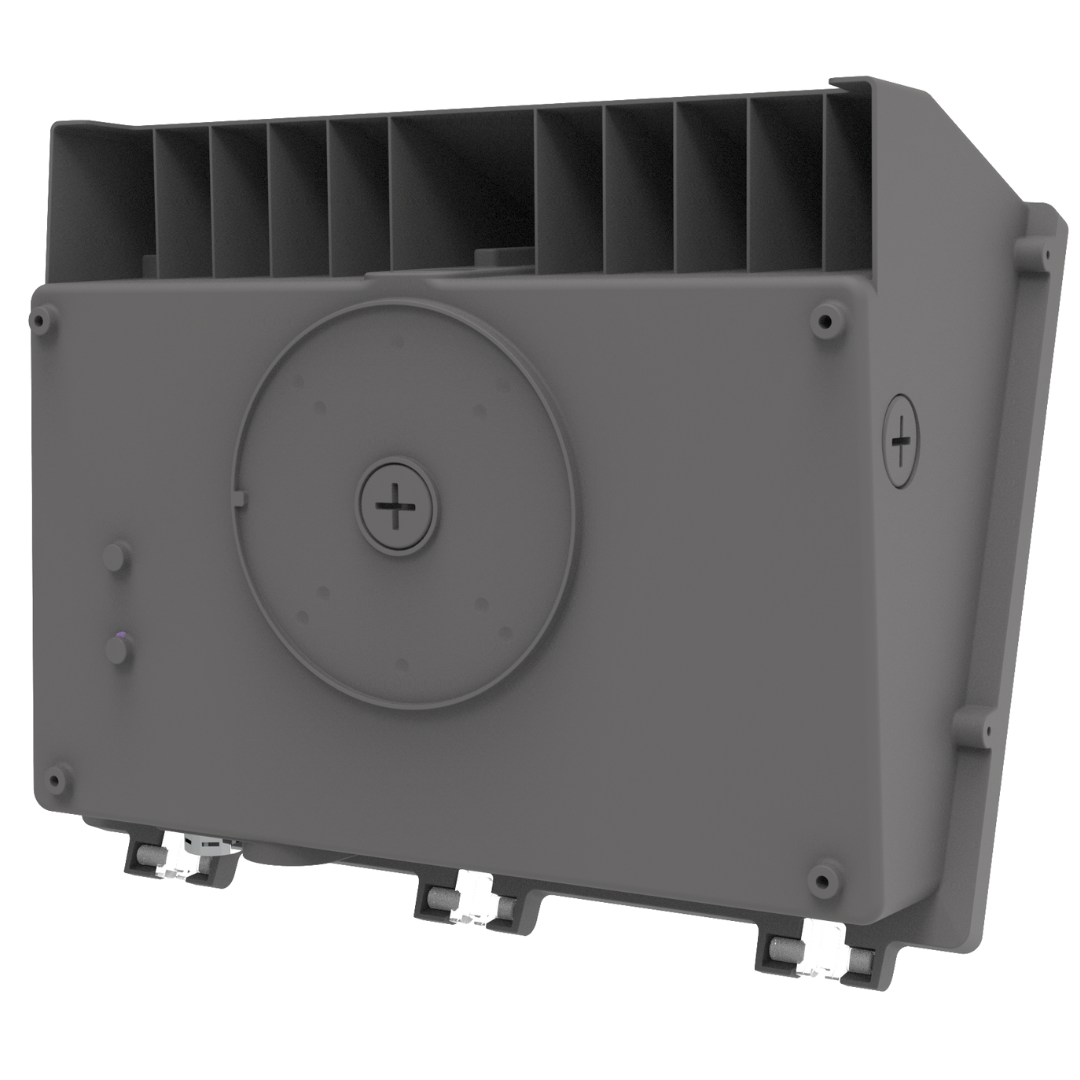

Built in a traditional wall pack form factor, this fixture installs fast on standard junction boxes and feels instantly familiar to contractors. Selectable wattage and selectable CCT allow crews to adjust light output and color temperature on site, reducing SKU count and preventing job delays when specs change.

With an IP65 wet location rating, DLC Premium certification, and optional emergency battery backup, this wall pack is built to pass inspection the first time while holding up long-term in harsh outdoor environments.

Backed by a 5-year warranty, this is a dependable, no-nonsense solution for commercial and industrial exteriors.

Why Contractors Choose This Wall Pack

Contractors choose no-cutoff wall packs when they need maximum light on walls, pavement, and loading areas without worrying about cutoff angles or shadowing.

This model stands out because:

• Selectable wattage & CCT eliminate return trips and reorders

• Traditional wall pack footprint speeds up installs

• Forward throw distribution improves perceived brightness with fewer fixtures

• DLC Premium listing simplifies rebates and approvals

• Side-access switches make adjustments fast — no fixture removal needed

This is a “set it, aim it, and move on” fixture that keeps jobs moving.

Key Features

Optical & Performance

• Forward Throw Distribution (No Cutoff)

• Even light output with minimal dark spots

• Efficacy up to 130 lm/W

Selectable Output

• Selectable Wattages: 80W / 100W / 120W

• Selectable CCT: 3000K / 4000K / 5000K

Electrical & Controls

• Input Voltage Options:

  • 120–277V

  • 120–347V

• 0–10V Dimming

• Side-mounted switches for wattage, CCT, and controls

Durability & Compliance

• IP65 Wet Location Rated

• UV-resistant polycarbonate lens

• Built-in pressure equalization respirator extends fixture life

• DLC Premium 5.1

• UL Listed (US & Canada)

Optional Adders

• Photocell sensors

• Motion sensors

• Emergency battery backup

Warranty

• 5-Year Limited Warranty

Ideal Applications

• Building perimeters

• Loading docks

• Warehouses & industrial facilities

• Parking areas

• Service entrances

• Manufacturing exteriors
