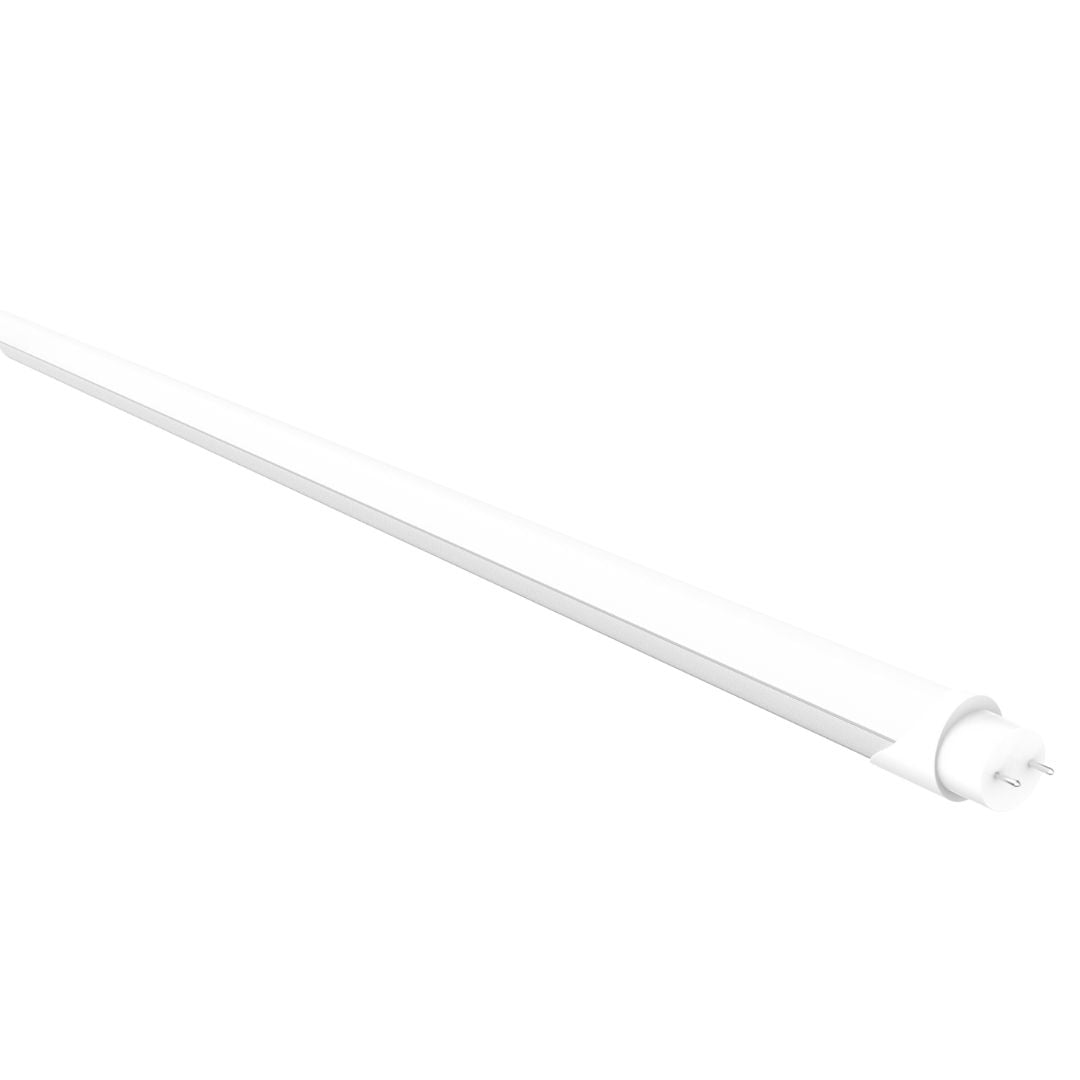

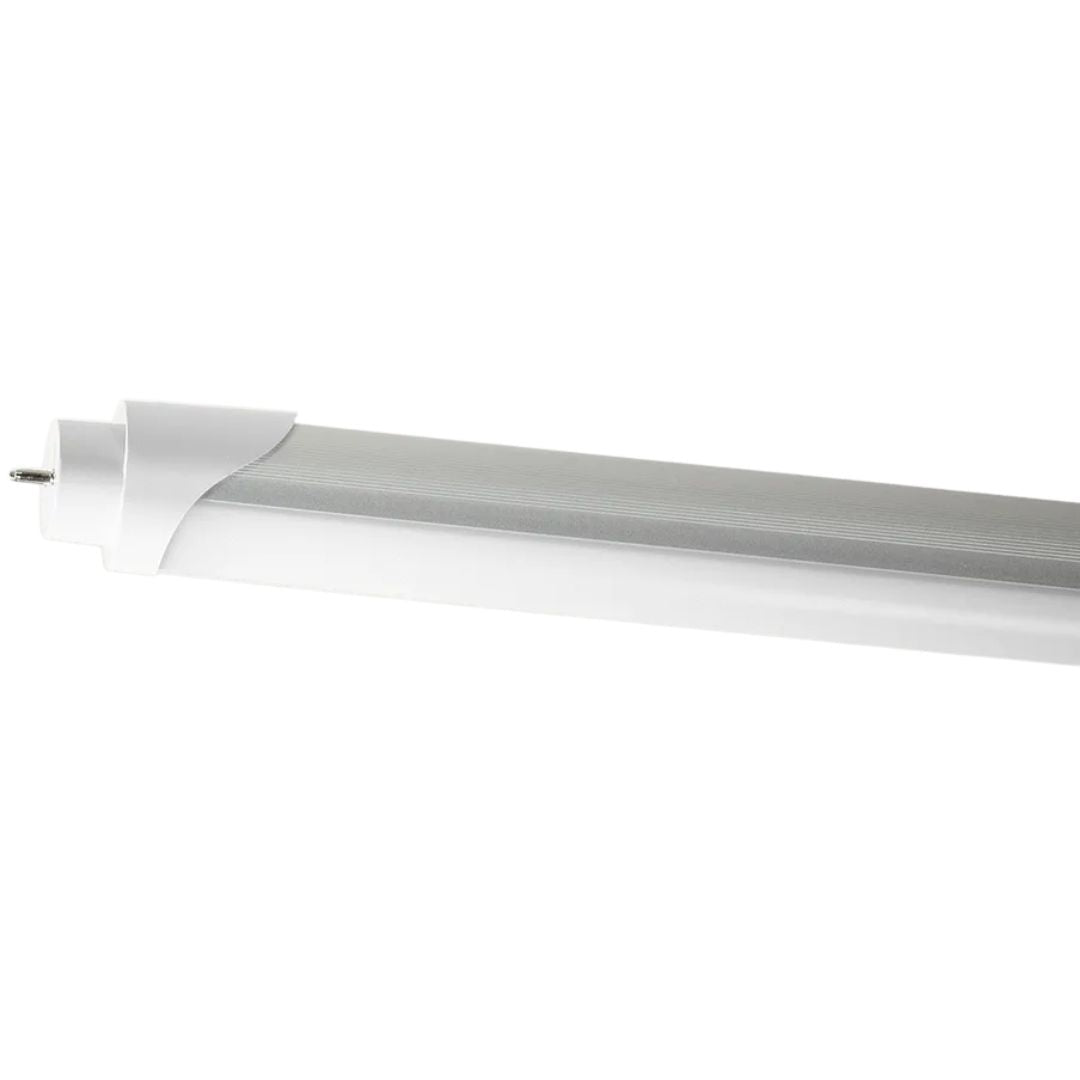

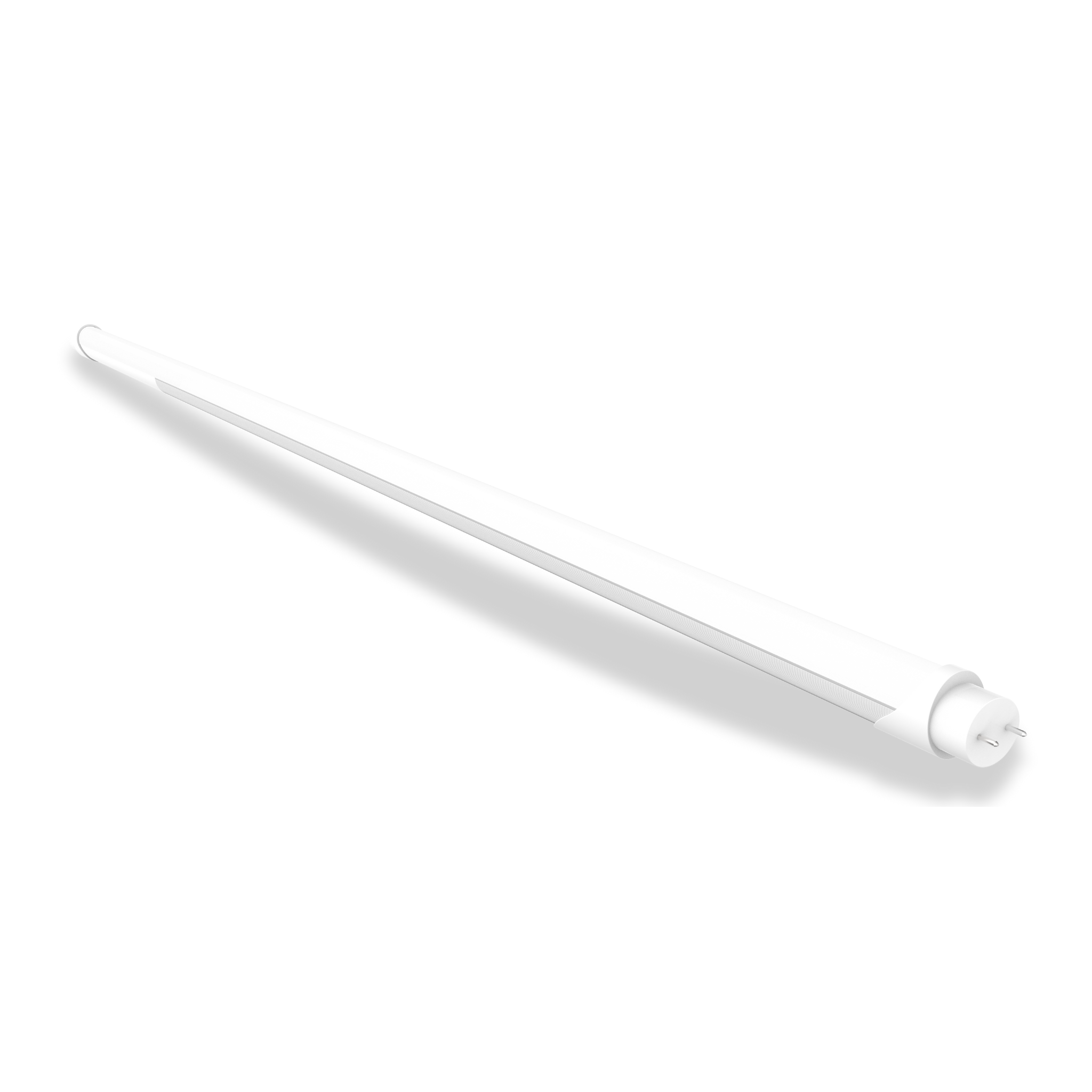

LED T8 Tube – 4FT, Selectable Wattage & CCT, Type A+B, 120–277V

⬇️Download Spec Sheet

Full Product Description

The T8 LED selectable 4-foot linear replacement lamp is designed for commercial fluorescent retrofits where flexibility, speed, and compatibility matter. It replaces standard T8 and T12 lamps with G13 bases while supporting both ballast and direct-wire installations.

With Type A+B dual-mode operation, field-selectable wattage, and 5-CCT tuning, this lamp allows contractors to standardize on one SKU and adjust output and color temperature on site. Ideal for retrofit projects where existing conditions vary and downtime must be minimized.

Key Advantages

• Type A+B Dual-Mode Operation
  Works with existing ballasts or as a ballast-bypass lamp for phased or mixed retrofit strategies.
• 5-Wattage + 5-CCT Selectability
  One lamp covers multiple lumen packages and color temperatures, reducing inventory and change orders.
• Single or Double Ended Power
  Supports multiple wiring methods for faster installs across different fixture types.
• High-Efficacy Performance
  Up to 150 lm/W for energy savings in large linear lighting retrofits.
• Familiar T8 Form Factor
  Twist-lock G13 base installs directly into existing linear fixtures.

Configuration & Field Adjustability

• Wattage: Field-selectable, 5 levels up to 22W max
• CCT: Field-selectable 3500K / 4000K / 5000K / 5700K / 6500K
• Driver Type: Type A+B (hybrid internal driver)
• Dimming:

• Type A: Dimmable via compatible ballast

• Type B: Non-dimmable (direct wire)

• Installation: Single-ended or double-ended power
• Beam Angle: 140°

Wattage and CCT are adjusted via onboard tuning switches prior to installation.

Construction & Application Notes

• Construction: Aluminum sheet backing for heat dissipation
• Lens: Shatter-resistant, anti-UV frosted polycarbonate
• Environment: Damp location rated
• Operating Temperature: -4°F to 113°F (-20°C to 45°C)
• Lamp Size: 4-FT linear T8 with G13 base

Typical applications include:

• Linear troffers
• Wraparound fixtures
• Shop lights
• Commercial offices
• Warehouses and back-of-house spaces
• Educational and institutional facilities

Optional Callouts (Spec-Supported)

• Input Voltage: 120–277V
• Driver Type: Type A+B (ballast compatible or direct wire)
• Selectability: 5-Wattage / 5-CCT
• Efficacy: Up to 150 lm/W
• Certifications: DLC Listed, ETL (US & Canada), FCC, RoHS
• Controls: Compatible with ON/OFF occupancy sensors
• Rating: Damp Location
• Warranty: 5-Year Limited Warranty
